Part number
1SCA115643R1001
Model no
OS160GD12P
$200.47 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
OS

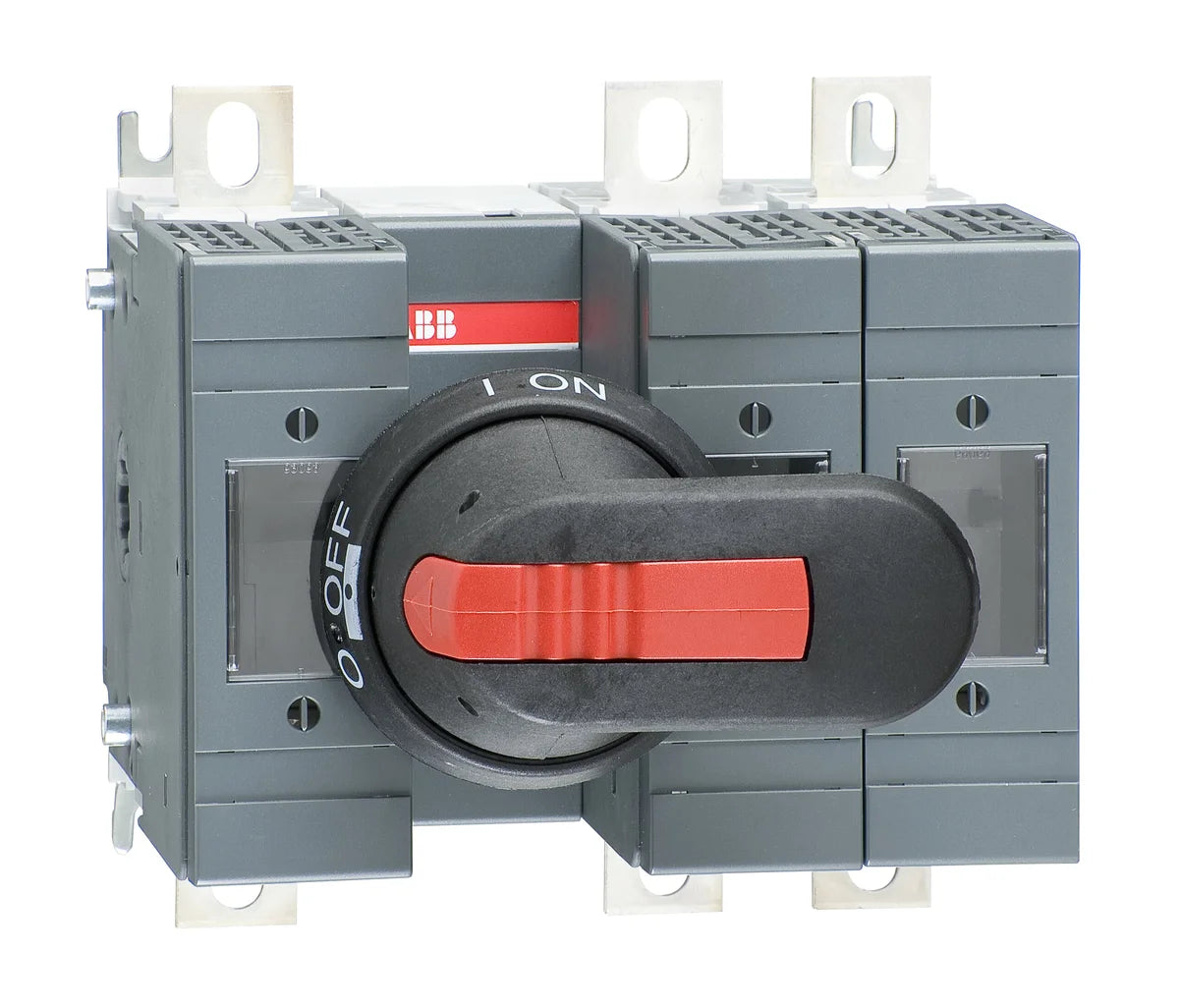

ABB 1SCA115643R1001 OS160GD12P 3-Pole 160A DIN Mount Switch-Disconnector Fuse

Rated current
160 A
Poles
3P
EAN
6417019479811
Other ratings in OS All 4 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
125 1SCA115641R1001 Low stock $177.89
160 1SCA115643R1001This part Low stock $200.47
630 1SCA022825R2830 Low stock $700.37
1250 1SCA105475R1001 Low stock $1,805.56
Description

About the OS160GD12P

The ABB OS160GD12P (SKU 1SCA115643R1001) is a 3-pole 160A switch-disconnector fuse from the ABB OS series, designed for DIN rail mounting in industrial control panels and power distribution assemblies. Combining the functions of a load-break switch and fuse holder in a single compact unit, the OS160GD12P provides reliable circuit isolation and overcurrent protection in one device — ideal for motor feeders, distribution boards, and machine control applications.

Certifications & Standards

  • IEC 60947-3: International standard for switches, disconnectors, switch-disconnectors and fuse-combination units
  • CE: Complies with applicable European Union directives for market placement
  • ATEX: Certified for use in potentially explosive atmospheres
  • CCC: China Compulsory Certification for the Chinese market
  • UL 2799: UL certification applicable to this product
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation on chemical substances
  • EU Directive 2011/65/EU: European RoHS directive compliance confirmed
  • Amendment 2015/863: Compliant with the 2015 amendment extending RoHS substance restrictions
  • WEEE: Waste Electrical and Electronic Equipment directive — registered for proper end-of-life recycling

Applications & Use Cases

  • Motor feeder circuits requiring combined switching and fuse protection
  • Industrial control panel power distribution up to 160A
  • Machine tool and automation system main disconnects
  • Hazardous area installations (ATEX-rated environments)
  • DIN rail-based switchgear assemblies and distribution boards
Specification

Full specification

59 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Environmental 2

Degree of Protection acc. to IEC 60529 IP20
Pollution Degree 3

Dimensions 4

Product Net Width 147 mm
Product Net Height 140 mm
Product Net Depth / Length 130 mm
Product Net Weight 2.035 kg, 4.49 lb
Show all 59 specifications ↓ Show less ↑52 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 12

Part number 1SCA115643R1001
Type designation OS160GD12P
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 6417019479811
ETIM class EC001040
eCl@ss 27371401
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080
Country of Origin Finland

Technical 25

Conventional Free-air Thermal Current (Ith) Θ = 40 °C 160 A
Conventional Thermal Current (Ithe) Fully Enclosed 160 A
Fuse Size NH000, NH00
Fuse System DIN
Handle Type Pistol
Mounting Type Base mounting
Number of Poles 3P
Operating Mode Front
Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out
Power Loss at Rated Operating Conditions per Pole 8 W, Total 24 W
Rated Conditional Short-Circuit Current (Inc) (500 V) 100 kA, (690 V) 80 kA
Rated Current (In) Main Circuit 160 A
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Current AC-21A (Ie) (500 V) 160 A, (690 V) 160 A
Rated Operational Current AC-22A (Ie) (500 V) 160 A, (690 V) 160 A
Rated Operational Current AC-23A (Ie) (500 V) 160 A, (690 V) 160 A
Rated Operational Power AC-23A (Pe) (220 ... 240 V) 45 kW, (400 V) 75 kW, (415 V) 75 kW, (500 V) 90 kW, (690 V) 132 kW
Rated Operational Voltage Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 5 kiloampere rms
Standards IEC 60947-3
Switches Operating Mechanism 12 (Between the Poles)
Terminal Type Lug terminals
Terminal Width 20 mm
Tightening Torque 15 … 22 N·m

External Classifications and Standards 5

ETIM 10 EC001040 - Fuse switch disconnector
UNSPSC 39122233
eClass V11.1 : 27371401
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden) 3172116

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 170 mm, 6.7 in
Package Level 1 Depth / Length 220 mm, 8.7 in
Package Level 1 Height 150 mm, 5.9 in
Package Level 1 Gross Weight 2.2 kg, 4.8 lb
Package Level 1 EAN 6417019479811
Shipping weight 2.2 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SCA115643R1001

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 4 ratings in OS

Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
125 A 1SCA115641R1001 OS125GD12P Low stock $177.89
160 A 1SCA115643R1001 This part OS160GD12P Low stock $200.47
630 A 1SCA022825R2830 OS630D03P Low stock $700.37
1250 A 1SCA105475R1001 OS1250D03P Low stock $1,805.56
