Part number
1SCA105475R1001
Model no
OS1250D03P
$1,805.56 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
OS

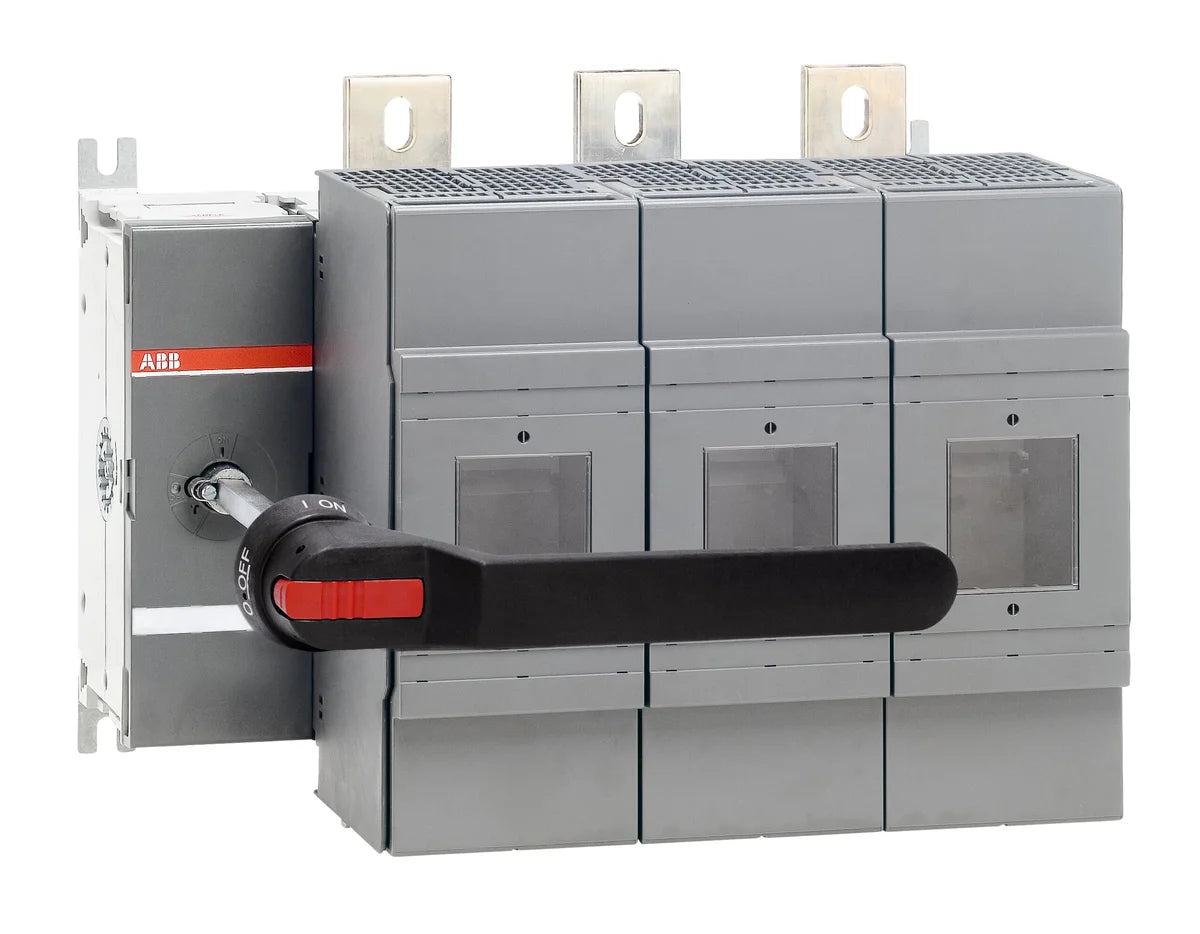

ABB 1SCA105475R1001 OS1250D03P 3-Pole 1250A Base Mount Switch-Disconnector Fuse

Rated current
1250 A
Poles
3P
Degree of protection
IP20
EAN
6417019394206
Other ratings in OS All 4 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
125 1SCA115641R1001 Low stock $177.89
160 1SCA115643R1001 Low stock $200.47
630 1SCA022825R2830 Low stock $700.37
1250 1SCA105475R1001This part Low stock $1,805.56
Description

About the OS1250D03P

The ABB OS1250D03P (SKU: 1SCA105475R1001) is a heavy-duty 3-pole, 1250A switch-disconnector fuse from ABB's OS series, designed for safe isolation and fuse protection of power distribution circuits in industrial installations. Engineered for base mounting and compliant with IEC 60947-3, the OS1250D03P provides reliable load isolation and overcurrent protection in demanding control panel and switchgear environments. With a robust steel enclosure rated at 27.86 kg and overall dimensions of 429 × 356 × 366 mm, this unit is built for high-current industrial applications.

Certifications & Standards

  • IEC 60947-3: International standard for switch-disconnectors, disconnectors, switch-fuse combinations and fuse-combination units
  • IEC 60529: Degrees of protection provided by enclosures (IP Code)
  • CE: European Conformity marking — meets EU safety, health, and environmental requirements
  • ATEX: Certified for use in potentially explosive atmospheres (EU Directive 2014/34/EU)
  • CCC: China Compulsory Certification for the Chinese market
  • UL 2799: UL standard compliance for electrical systems
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation on chemical substances
  • WEEE: Waste Electrical and Electronic Equipment Directive compliance for responsible end-of-life disposal

Applications & Use Cases

  • Main switch isolation in industrial power distribution panels and switchgear assemblies
  • Fused disconnection of high-current feeders supplying motors, transformers, and distribution busbars
  • Safe maintenance isolation in manufacturing plants, process industries, and utility substations
  • Applications requiring ATEX certification in hazardous area installations
  • Heavy-duty industrial automation and control panel builds requiring IEC 60947-3 compliant disconnection
Specification

Full specification

61 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Environmental 2

Degree of Protection acc. to IEC 60529 IP20
Pollution Degree 3

Dimensions 4

Product Net Width 429 mm
Product Net Height 356 mm
Product Net Depth / Length 366 mm
Product Net Weight 27.86 kg, 61.42 lb
Show all 61 specifications ↓ Show less ↑54 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 12

Part number 1SCA105475R1001
Type designation OS1250D03P
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 6417019394206
ETIM class EC001040
eCl@ss 27371401
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080
Country of Origin Finland

Technical 28

Conventional Free-air Thermal Current (Ith) Θ = 40 °C 1250 A
Conventional Thermal Current (Ithe) Fully Enclosed 1000 A
Fuse Size NH4
Fuse System DIN
Handle Type Pistol
Mounting Type Base mounting
Number of Poles 3P
Operating Mode Front
Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out
Power Loss at Rated Operating Conditions per Pole 75 W, Total 225 W
Rated Conditional Short-Circuit Current (Inc) (500 V) 100 kA, (690 V) 80 kA
Rated Current (In) Main Circuit 1250 A
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Current AC-21A (Ie) (380 ... 415 V) 1250 A, (500 V) 1250 A, (690 V) 1250 A
Rated Operational Current AC-21B (Ie) (500 V) 1250 A, (690 V) 1250 A
Rated Operational Current AC-22A (Ie) (380 ... 415 V) 1250 A
Rated Operational Current AC-22B (Ie) (500 V) 1250 A, (690 V) 1250 A
Rated Operational Current AC-23A (Ie) (380 ... 415 V) 1000 A
Rated Operational Current AC-23B (Ie) (500 V) 1000 A, (690 V) 1000 A
Rated Operational Power AC-23A (Pe) (220 ... 240 V) 315 kW, (400 V) 560 kW, (415 V) 560 kW, (500 V) 710 kW, (690 V) 1000 kW
Rated Operational Voltage Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 40 kiloampere rms
Standards IEC 60947-3
Switches Operating Mechanism 03 (Left Side)
Terminal Type Lug terminals
Terminal Width 50 mm
Tightening Torque 50 ... 75 N·m

External Classifications and Standards 4

ETIM 10 EC001040 - Fuse switch disconnector
UNSPSC 39122233
eClass V11.1 : 27371401
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 394 mm, 15.51 in
Package Level 1 Depth / Length 534 mm, 21.02 in
Package Level 1 Height 368 mm, 14.49 in
Package Level 1 Gross Weight 30.1 kg, 66.36 lb
Package Level 1 EAN 6417019394206
Shipping weight 30.1 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SCA105475R1001

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 4 ratings in OS

Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
125 A 1SCA115641R1001 OS125GD12P Low stock $177.89
160 A 1SCA115643R1001 OS160GD12P Low stock $200.47
630 A 1SCA022825R2830 OS630D03P Low stock $700.37
1250 A 1SCA105475R1001 This part OS1250D03P Low stock $1,805.56
