Part number
1SCA115641R1001
Model no
OS125GD12P
$177.89 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
OS

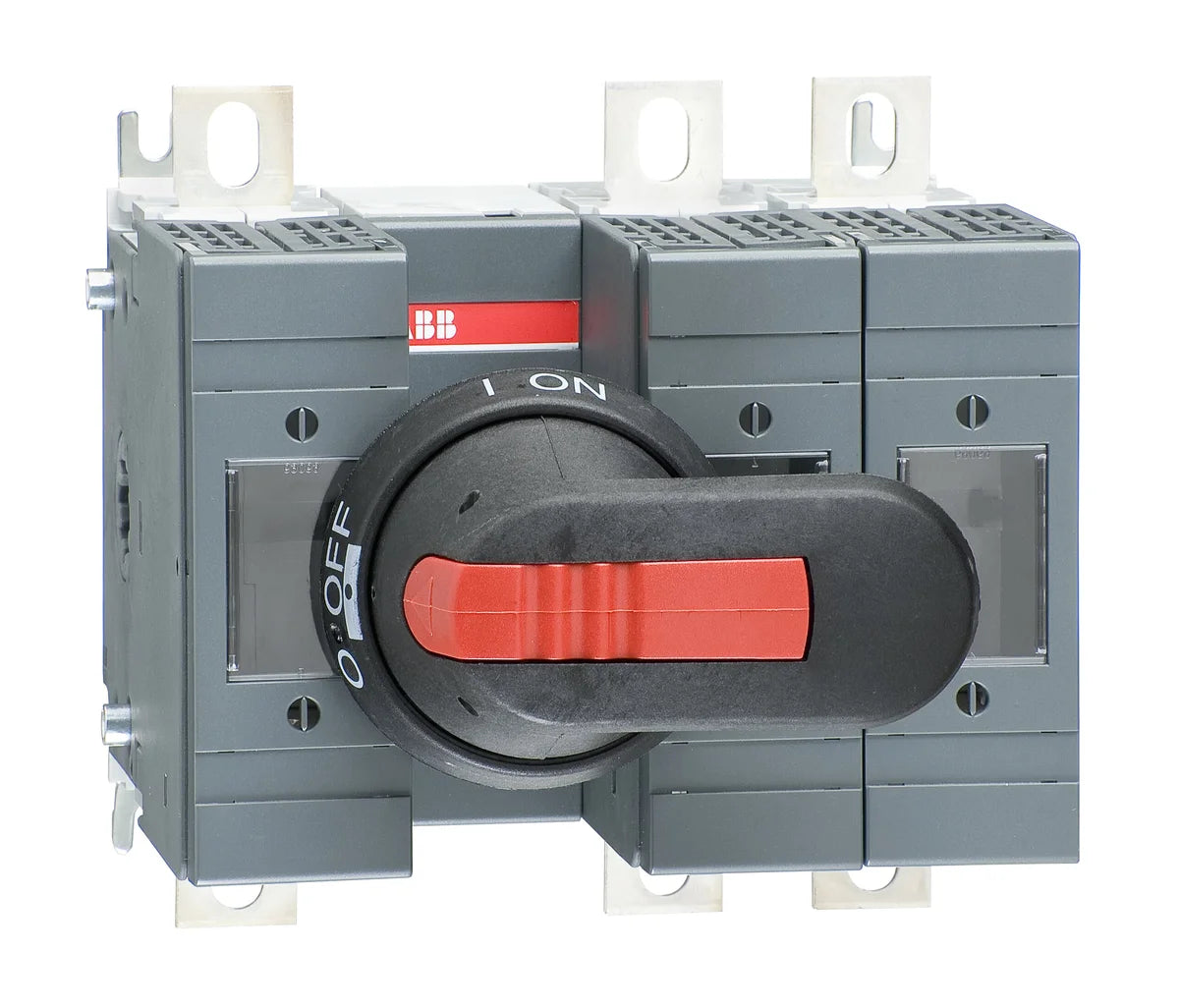

ABB 1SCA115641R1001 OS125GD12P 3-Pole 125A DIN Mount Switch-Disconnector Fuse

Rated current
125 A
Poles
3P
EAN
6417019479798
Other ratings in OS All 4 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
125 1SCA115641R1001This part Low stock $177.89
160 1SCA115643R1001 Low stock $200.47
630 1SCA022825R2830 Low stock $700.37
1250 1SCA105475R1001 Low stock $1,805.56
Description

About the OS125GD12P

The ABB OS125GD12P (SKU: 1SCA115641R1001) is a 3-pole, 125A switch-disconnector fuse from ABB's OS Series, designed for reliable isolation and overcurrent protection in industrial control panels and distribution boards. Featuring DIN rail mounting and compact dimensions of 147 mm × 140 mm × 130 mm, the OS125GD12P delivers safe disconnection of circuits in demanding industrial environments. Compliant with IEC 60947-3 and certified for ATEX hazardous-area applications, this unit suits a broad range of automation and power distribution installations.

Certifications & Standards

  • IEC 60947-3: Low-voltage switchgear and controlgear — switches, disconnectors, switch-disconnectors and fuse-combination units
  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • ATEX: Certified for use in potentially explosive atmospheres
  • RoHS: EU Directive 2011/65/EU — restriction of hazardous substances in electrical equipment
  • REACH: EU regulation on registration, evaluation, authorisation and restriction of chemicals
  • EU Directive 2015/863: Amendment to RoHS Directive 2011/65/EU, extending the list of restricted substances
  • UL 2799: UL certification for electrical construction equipment
  • CCC: China Compulsory Certification for market access in China
  • WEEE: EU Directive on waste electrical and electronic equipment — compliant with end-of-life recycling requirements

Applications & Use Cases

  • Isolation and protection of motor feeders and distribution circuits in industrial control panels
  • Safe disconnection of equipment during maintenance in manufacturing and process plants
  • Hazardous-area installations requiring ATEX-rated switching devices
  • Main or branch circuit switching in DIN-rail-based distribution boards
  • Industrial automation systems requiring IEC 60947-3 compliant switch-disconnectors
Specification

Full specification

59 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Environmental 2

Degree of Protection acc. to IEC 60529 IP20
Pollution Degree 3

Dimensions 4

Product Net Width 147 mm
Product Net Height 140 mm
Product Net Depth / Length 130 mm
Product Net Weight 2.035 kg, 4.49 lb
Show all 59 specifications ↓ Show less ↑52 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 12

Part number 1SCA115641R1001
Type designation OS125GD12P
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 6417019479798
ETIM class EC001040
eCl@ss 27371401
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080
Country of Origin Finland

Technical 25

Conventional Free-air Thermal Current (Ith) Θ = 40 °C 125 A
Conventional Thermal Current (Ithe) Fully Enclosed 125 A
Fuse Size NH000, NH00
Fuse System DIN
Handle Type Pistol
Mounting Type Base mounting
Number of Poles 3P
Operating Mode Front
Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out
Power Loss at Rated Operating Conditions per Pole 4 W, Total 12 W
Rated Conditional Short-Circuit Current (Inc) (500 V) 100 kA, (690 V) 80 kA
Rated Current (In) Main Circuit 125 A
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Current AC-21A (Ie) (500 V) 125 A, (690 V) 125 A
Rated Operational Current AC-22A (Ie) (500 V) 125 A, (690 V) 125 A
Rated Operational Current AC-23A (Ie) (500 V) 125 A, (690 V) 125 A
Rated Operational Power AC-23A (Pe) (220 ... 240 V) 37 kW, (400 V) 55 kW, (415 V) 55 kW, (500 V) 75 kW, (690 V) 110 kW
Rated Operational Voltage Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 5 kiloampere rms
Standards IEC 60947-3
Switches Operating Mechanism 12 (Between the Poles)
Terminal Type Lug terminals
Terminal Width 20 mm
Tightening Torque 15 … 22 N·m

External Classifications and Standards 5

ETIM 10 EC001040 - Fuse switch disconnector
UNSPSC 39122233
eClass V11.1 : 27371401
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden) 3172114

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 170 mm, 6.7 in
Package Level 1 Depth / Length 220 mm, 8.7 in
Package Level 1 Height 150 mm, 5.9 in
Package Level 1 Gross Weight 2.2 kg, 4.8 lb
Package Level 1 EAN 6417019479798
Shipping weight 2.2 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SCA115641R1001

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 4 ratings in OS

Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
125 A 1SCA115641R1001 This part OS125GD12P Low stock $177.89
160 A 1SCA115643R1001 OS160GD12P Low stock $200.47
630 A 1SCA022825R2830 OS630D03P Low stock $700.37
1250 A 1SCA105475R1001 OS1250D03P Low stock $1,805.56
Certifications

Certifications and standards

  • CE
  • RoHS
  • CCC
  • ATEX
  • IEC 60947-3
Quick answers

Questions about the OS125GD12P

What is the rated current of OS125GD12P?

The rated current of OS125GD12P is 125 A.

What is the HS code of OS125GD12P for customs?

The tariff (HS) code on file for OS125GD12P is 85365080.

What is the EAN of OS125GD12P?

The EAN (GTIN) of OS125GD12P is 6417019479798.

Where does OS125GD12P ship from, and how fast?

OS125GD12P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
