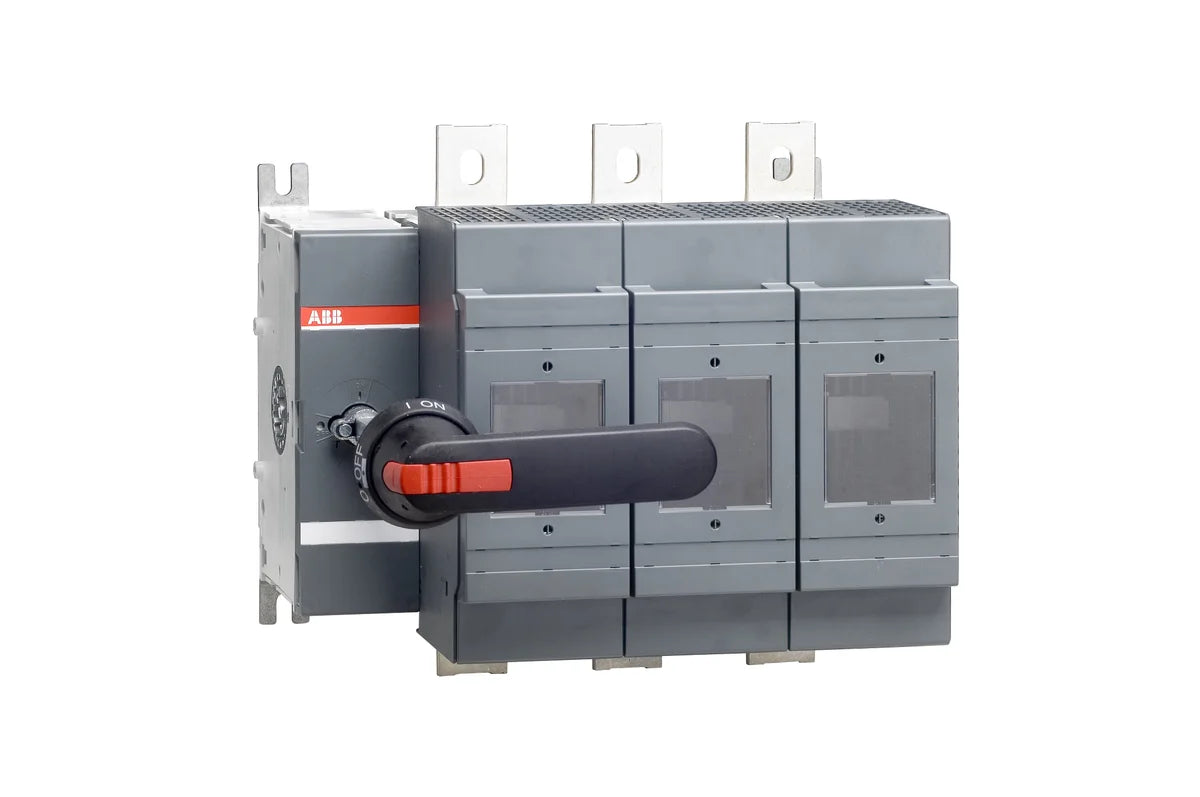

ABB 1SCA022825R2830 OS630D03P 3-Pole 630A DIN Mount Switch Fuse

Rated current
630 A
Poles
3P
Degree of protection
IP20
EAN
6417019283432
Other ratings in OS All 4 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
125 1SCA115641R1001 Low stock $177.89
160 1SCA115643R1001 Low stock $200.47
630 1SCA022825R2830This part Low stock $700.37
1250 1SCA105475R1001 Low stock $1,805.56
Description

About the OS630D03P

The ABB OS630D03P (SKU: 1SCA022825R2830) is a 3-pole, 630 A DIN-mounted switch fuse from ABB's OS Series, engineered for reliable isolation and overcurrent protection in demanding industrial power distribution applications. Combining robust fuse-based protection with a load-break disconnect function, the OS630D03P delivers safe, code-compliant switching for main incomer panels, sub-distribution boards, and industrial control systems.

Certifications & Standards

  • CE: Complies with applicable European Union directives for electrical equipment
  • IEC 60947-3: Meets the international standard for low-voltage switchgear and controlgear — switches, disconnectors, switch-disconnectors and fuse-combination units
  • IEC 60529: Verified ingress protection rating per international standard
  • RoHS: Restriction of Hazardous Substances compliant — free from restricted substances per EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation (EC) No 1907/2006 on chemical substance safety
  • ATEX: Approved for use in potentially explosive atmospheres per ATEX directive
  • CCC: China Compulsory Certification — approved for the Chinese market
  • UL 2799: Listed to UL standard for electrical systems
  • WEEE: Compliant with the Waste Electrical and Electronic Equipment Directive for responsible end-of-life recycling

Applications & Use Cases

  • Main incomer and sub-distribution boards in industrial facilities
  • Motor feeders and machine control panels requiring fuse-protected isolation
  • < li>Power distribution in hazardous (ATEX-rated) environments
  • Building services, data centres, and process plants requiring 630 A fused switching
  • Applications demanding full IEC 60947-3 compliance with DIN-rail installation
Specification

Full specification

59 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Environmental 2

Degree of Protection acc. to IEC 60529 IP20
Pollution Degree 3

Dimensions 4

Product Net Width 343 mm
Product Net Height 306 mm
Product Net Depth / Length 233 mm
Product Net Weight 13.5 kg
Show all 59 specifications ↓ Show less ↑52 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 12

Part number 1SCA022825R2830
Type designation OS630D03P
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 6417019283432
ETIM class EC001040
eCl@ss 27371401
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080
Country of Origin Finland

Technical 25

Conventional Free-air Thermal Current (Ith) Θ = 40 °C 630 A
Conventional Thermal Current (Ithe) Fully Enclosed 570 A
Fuse Size NH3
Fuse System DIN
Handle Type Pistol
Mounting Type Base mounting
Number of Poles 3P
Operating Mode Front
Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out
Power Loss at Rated Operating Conditions per Pole 46 W, Total 138 W
Rated Conditional Short-Circuit Current (Inc) (500 V) 100 kA, (690 V) 80 kA
Rated Current (In) Main Circuit 630 A
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Current AC-21A (Ie) (500 V) 630 A, (690 V) 630 A
Rated Operational Current AC-22A (Ie) (380 ... 415 V) 630 A, (500 V) 630 A, (690 V) 630 A
Rated Operational Current AC-23A (Ie) (380 ... 415 V) 630 A, (500 V) 630 A, (690 V) 630 A
Rated Operational Power AC-23A (Pe) (220 ... 240 V) 200 kW, (400 V) 355 kW, (415 V) 355 kW, (500 V) 450 kW, (690 V) 630 kW
Rated Operational Voltage Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 18 kiloampere rms
Standards IEC 60947-3
Switches Operating Mechanism 03 (Left Side)
Terminal Type Lug terminals
Terminal Width 39 mm
Tightening Torque 50 ... 75 N·m

External Classifications and Standards 5

ETIM 10 EC001040 - Fuse switch disconnector
UNSPSC 39122233
eClass V11.1 : 27371401
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden) 3172091

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 328 mm
Package Level 1 Depth / Length 365 mm
Package Level 1 Height 260 mm
Package Level 1 Gross Weight 13.5 kg
Package Level 1 EAN 6417019283432
Shipping weight 13.5 kg
Ships from Türkiye
Dispatch 17 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026
