- Part number
- 1SCA105019R1001
- Model no
- OT100F4C
Critical stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- CSA
- DNV
- RoHS

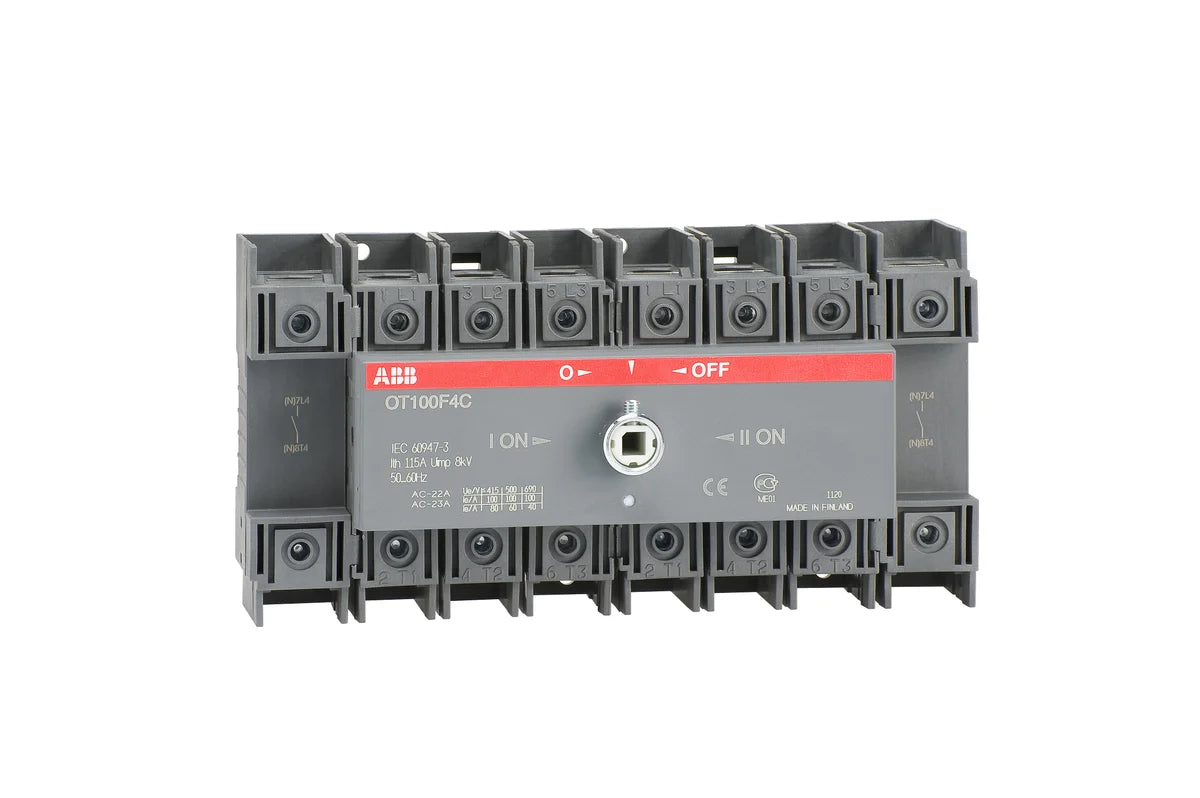

ABB 1SCA105019R1001 OT100F4C 4-Pole 100A Base Mount Change-Over Switch
Description
About the OT100F4C
About the OT100F4C
The ABB OT100F4C (SKU: 1SCA105019R1001) is a 4-pole 100A base-mounted change-over switch designed for reliable power source switching in industrial control panels and distribution systems. Engineered to IEC 60947-3 and UL 98 standards, the OT100F4C delivers robust performance in demanding environments, making it a trusted choice for engineers and procurement professionals worldwide. With compact dimensions of 193 × 100 × 86 mm and a weight of just 1.3 kg, it offers an efficient footprint without compromising on current-handling capability.
Certifications & Standards
- CE: Conforms to European Union safety, health, and environmental protection requirements
- RoHS: Compliant with the Restriction of Hazardous Substances Directive
- REACH: Compliant with EU REACH chemical substance regulations
- WEEE: Compliant with the Waste Electrical and Electronic Equipment Directive
- DNV: Approved by Det Norske Veritas for marine and offshore applications
- IEC 60947-3: Compliant with the international standard for switches, disconnectors, switch-disconnectors and fuse-combination units
- IEC 60947: Compliant with the IEC low-voltage switchgear and controlgear standard series
- UL 98 / IEC 60947-3: Listed to UL 98 and IEC 60947-3 for enclosed and open switches
- CSA: Certified to Canadian Standards Association requirements for the North American market
Applications & Use Cases
- Manual transfer between two power sources in industrial control panels
- Generator changeover and mains/standby switching in commercial and industrial facilities
- Marine and offshore power distribution systems (DNV approved)
- Motor control centres and main distribution boards requiring 4-pole isolation
- Building services, HVAC, and pump control installations requiring reliable load switching
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 193 mm, 7.6 in |
|---|---|
| Product Net Height | 100 mm, 3.94 in |
| Product Net Depth / Length | 86 mm, 3.39 in |
| Product Net Weight | 1.3 kg |
Show all 61 specifications ↓ Show less ↑54 more values in Identification, Technical, Technical UL/CSA, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA105019R1001 |
|---|---|
| Type designation | OT100F4C |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019391502 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 26
| Cable Cross-Section | 10 ... 70 mm² |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 115 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 115 A |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Mechanical Durability | 6000 cycle |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 100 A, (500 V) 100 A, (690 V) 100 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 100 A, (500 V) 100 A, (690 V) 100 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 80 A, (500 V) 60 A, (690 V) 40 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 37 kW, (500 V) 37 kW, (690 V) 37 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Standards | UL 98 / IEC60947-3 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Transition Type | Open |
Technical UL/CSA 2
| Ampere Rating | 100 A |
|---|---|
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 30 Hp, (acc. to UL 208 V) 30 Hp, (acc. to UL 240 V) 30 Hp, (acc. to UL 480 V) 50 Hp, (acc. to UL 600 V) 50 Hp |
External Classifications and Standards 4
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Logistics 10
| Package Level 1 Units | box 1 box |
|---|---|
| Package Level 1 Width | 102 mm, 4.02 in |
| Package Level 1 Depth / Length | 205 mm, 8.07 in |
| Package Level 1 Height | 103 mm, 4.06 in |
| Package Level 1 Gross Weight | 1.3 kg, 2.87 lb |
| Package Level 1 EAN | 6417019391502 |
| Shipping weight | 1.3 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA105019R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- DNV
- RoHS
- UL 98 / IEC60947-3
Quick answers
Questions about the OT100F4C
What is the rated current of OT100F4C?
The rated current of OT100F4C is 100 A.
What is the HS code of OT100F4C for customs?
The tariff (HS) code on file for OT100F4C is 85365080.
What is the EAN of OT100F4C?
The EAN (GTIN) of OT100F4C is 6417019391502.
Where does OT100F4C ship from, and how fast?
OT100F4C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
