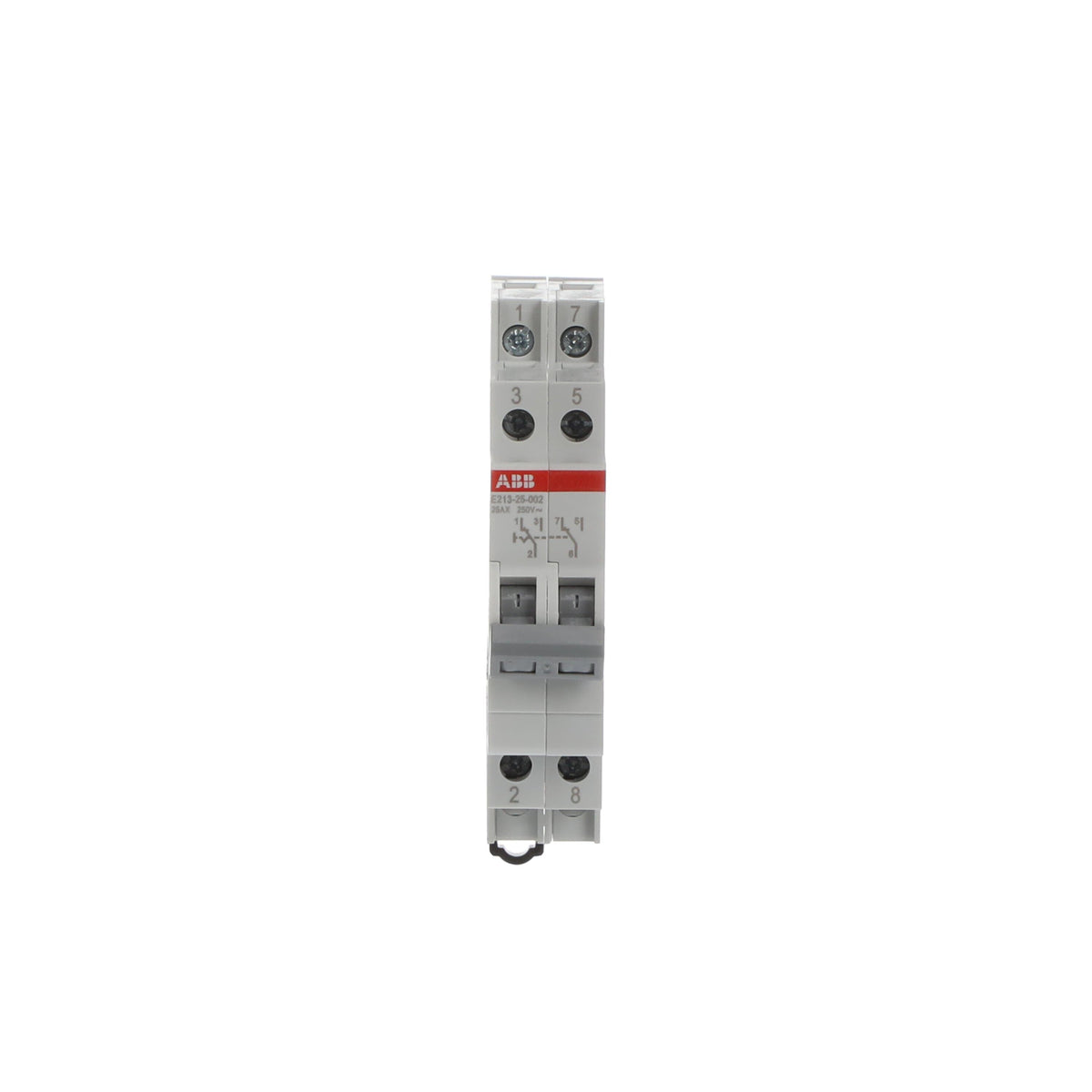

ABB 2CCA703046R0001 E213-25-002 2P 2CO 25A Changeover Switch

% $-33.09
ABB 2CCA703046R0001 E213-25-002 Changeover Switch - 2P 25A 2CO Grey
ABB 2CCA703046R0001 E213-25-002 Changeover Switch - 2P 25A 2CO Grey

ABB 2CCA703046R0001 E213-25-002 2P 2CO 25A Changeover Switch

Brand: ABB
Reference No: 2CCA703046R0001
Catalog No: E213-25-002
Series: Switches, Pushbuttons and Indicator Lights, E210
Tariff Code (HS): 853650
Rated Current: 25
Rated Voltage: 250 V AC
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$33.09

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's 2CCA703046R0001 E213-25-002 is a two-pole DIN-rail changeover switch rated 25 A at 250 V AC, built to EN 60669-1 and VDE 0632-1 for manually switching two circuits between supply sources. It provides 2 changeover (SPDT) contacts in a 1-module housing with double-interrupting contacts.

Technical Specifications

Catalog No E213-25-002
SKU 2CCA703046R0001
Brand ABB
Series Switches, Pushbuttons and Indicator Lights, E210
Rated Current (In) 25 A
Rated Operational Voltage 250 V AC (acc. to EN) / 240 V AC (acc. to UL 508)
Rated Frequency 50/60 Hz
Number of Poles 2P
Switch Type Double Interrupting Contacts
Number of Contacts CO (SPDT) 2
Material of Conductor Copper
Connecting Capacity Solid 1x1-6 mm² / Solid 2x2.5 mm² / Flexible 1x0.75-2x2.5 mm²
Power Loss 0.8 W
Cover Color Grey
Degree of Protection IP20
Width in Modular Spacings 1
Dimensions (W x H x D) 18 x 85 x 68 mm
Net Weight 87 g
EAN 7612270938728

Certifications & Standards

  • EN 60669-1
  • VDE 0632-1
  • IEC 60068-2-1
  • IEC 60068-2-2
  • IEC 60068-2-38
  • UL 508

Selection Notes

With 2 changeover contacts across 2 poles, the E213-25-002 doubles the switching capacity of the 1-pole, 1-contact 2CCA703041R0001 (E213-25-001) in twice the module width. Use this version when the circuit needs two poles switched together, such as a phase-and-neutral or two-circuit transfer; use the E213-25-001 for a single-pole source selection. Current and voltage ratings are identical across both variants at 25 A, 250 V AC.

Technical Details

Short Description
ABB E213-25-002 - 2P DIN-rail changeover switch, 25 A, 250 V AC, 2 CO contacts.
Rated Current (Ampere)
25
Rated Voltage (VAC)
250 V AC
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
E213-25-002
Number of Poles
2P
Standards
EN60669-1, VDE0632-1, IEC60068-2-2, IEC60068-2-1, IEC60068-2-38, UL508
Delivery Date (Days)
30 days
Model Number
E213-25-002
Tariff Code
853650
