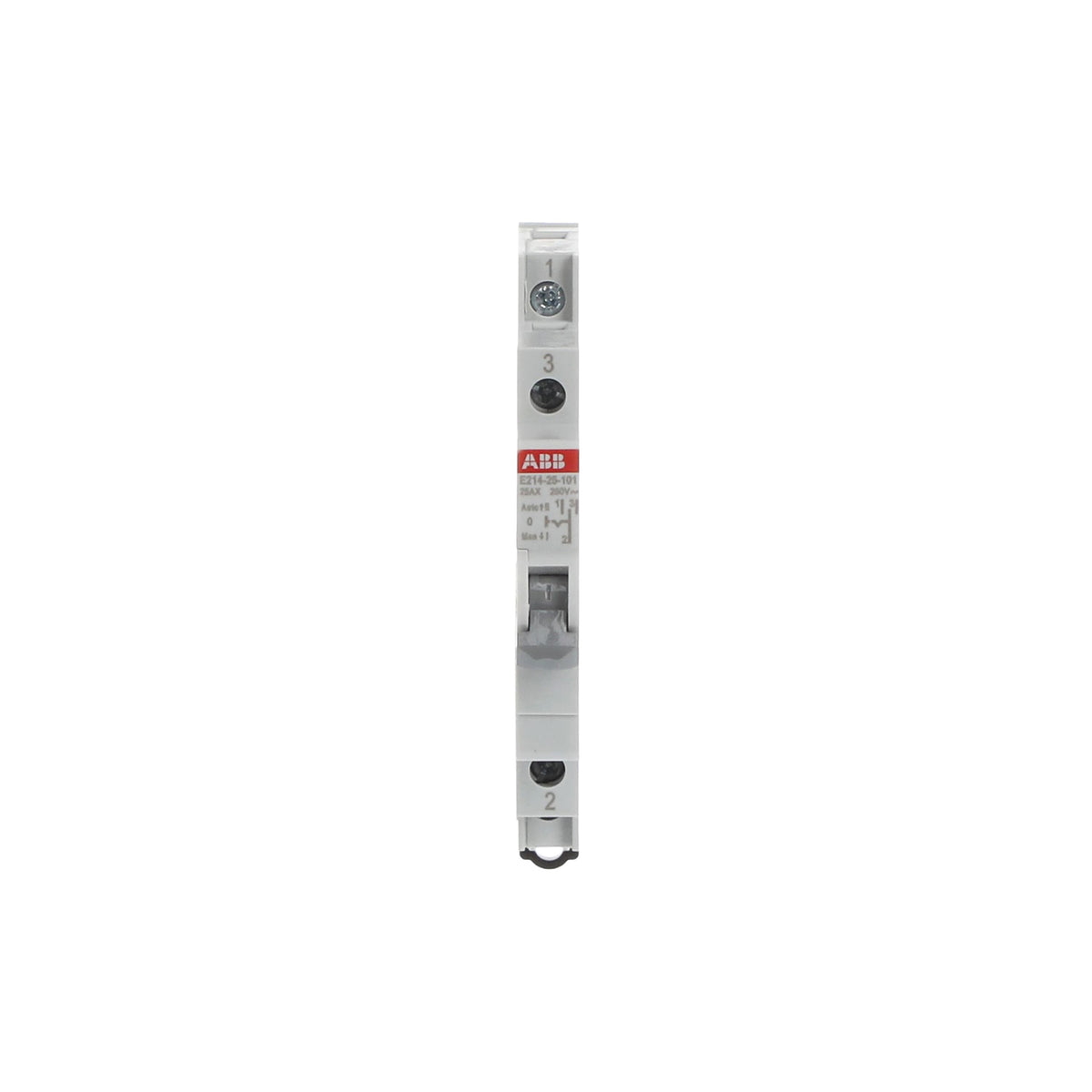

ABB 2CCA703026R0001 E214-25-101 1P I-0-II 25A Changeover Switch

The ABB 2CCA703026R0001 E214-25-101 is a single-pole DIN-rail group switch with an I-0-II (source 1 - off - source 2) switching pattern, rated 25 A at 250 V AC to EN 60669-1 and VDE 0632-1. It gives 1 changeover (SPDT) contact in a 0.5-module housing, with a 3 kA rated service short-circuit breaking capacity.

Technical Specifications

Certifications & Standards

• EN 60669-1
• VDE 0632-1
• IEC 60068-2-1
• IEC 60068-2-2
• IEC 60068-2-38
• UL 508

Selection Notes

The I-0-II switching pattern on the E214-25-101 gives a defined off position between the two source positions, which the plain changeover E213-25-001 does not provide in its single-throw contact. Pick this group switch when an isolated off state is required between the two sources, for example to avoid back-feeding during a manual transfer; pick the E213 series when the circuit only ever toggles between two live states with no off position. Current and voltage ratings match the E213 range at 25 A, 250 V AC.
