ABB 2CCA703041R0001 E213-25-001 1P 1CO 25A Changeover Switch

% $-18.71

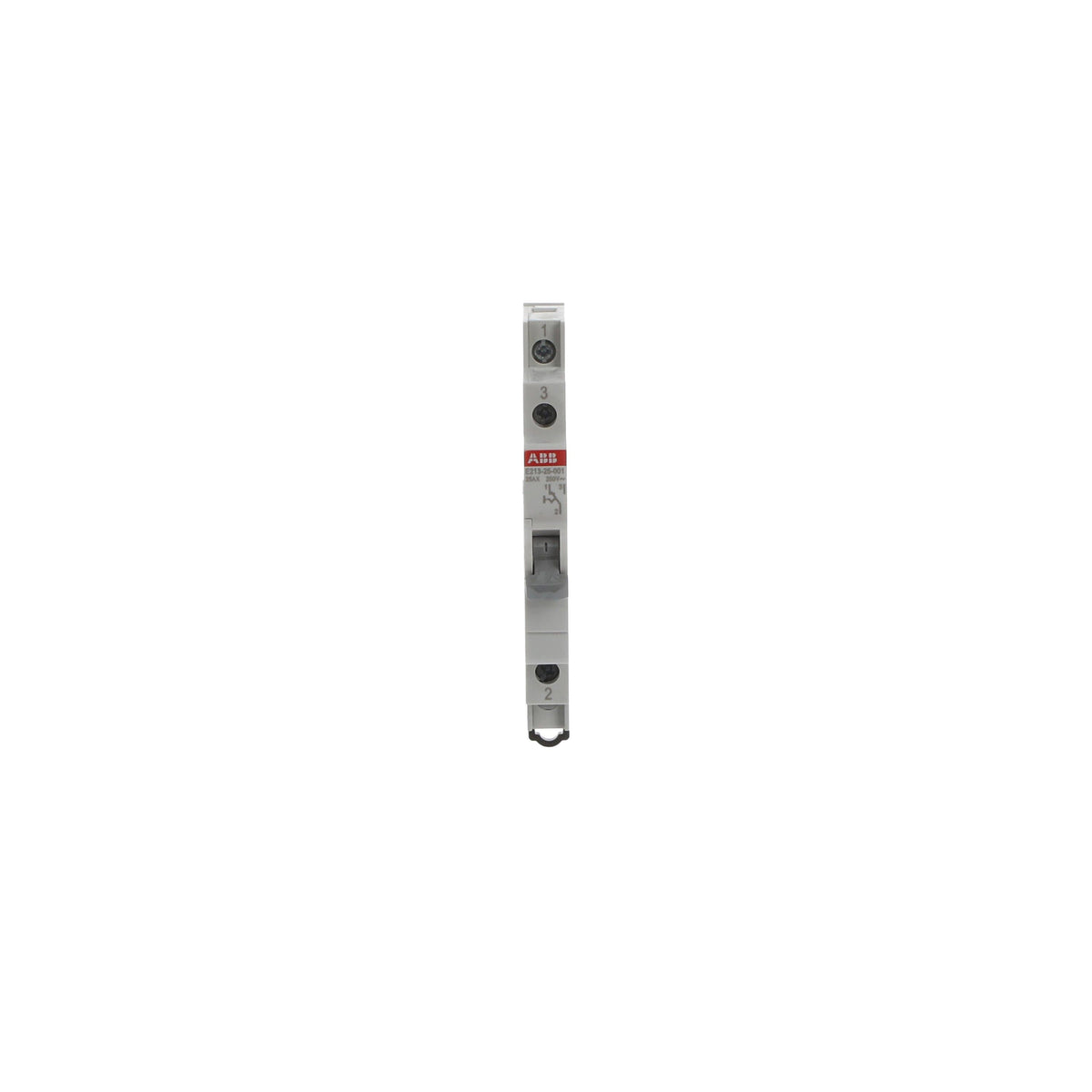

ABB 2CCA703041R0001 E213-25-001 Changeover Switch - 1P 25A 1CO Grey
ABB 2CCA703041R0001 E213-25-001 Changeover Switch - 1P 25A 1CO Grey

ABB 2CCA703041R0001 E213-25-001 1P 1CO 25A Changeover Switch

Brand: ABB
Reference No: 2CCA703041R0001
Catalog No: E213-25-001
Series: Switches, Pushbuttons and Indicator Lights, E210
Tariff Code (HS): 853650
Rated Current: 25
Rated Voltage: 250 V AC
Poles: 1P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$18.71

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CCA703041R0001 E213-25-001 is a single-pole DIN-rail changeover switch rated 25 A at 250 V AC, built to EN 60669-1 and VDE 0632-1 for manually switching between two supply sources or circuits. It provides 1 changeover (SPDT) contact in a 0.5-module housing with double-interrupting contacts for a visible, reliable switch position.

Technical Specifications

Catalog No E213-25-001
SKU 2CCA703041R0001
Brand ABB
Series Switches, Pushbuttons and Indicator Lights, E210
Rated Current (In) 25 A
Rated Operational Voltage 250 V AC (acc. to EN) / 240 V AC (acc. to UL 508)
Rated Frequency 50/60 Hz
Number of Poles 1P
Switch Type Double Interrupting Contacts
Number of Contacts CO (SPDT) 1
Material of Conductor Copper
Connecting Capacity Solid 1x1-6 mm² / Solid 2x2.5 mm² / Flexible 1x0.75-2x2.5 mm²
Power Loss 0.4 W
Cover Color Grey
Degree of Protection IP20
Width in Modular Spacings 0.5
Dimensions (W x H x D) 9 x 85 x 68 mm
Net Weight 44 g
EAN 7612270938711

Certifications & Standards

  • EN 60669-1
  • VDE 0632-1
  • IEC 60068-2-1
  • IEC 60068-2-2
  • IEC 60068-2-38
  • UL 508

Selection Notes

The E213-25-001 provides a single changeover contact in the narrowest 0.5-module housing of the E213 range, suited to a single-pole source-selection circuit. Choose the 2CCA703046R0001 (E213-25-002) instead when the application needs two independent changeover contacts or two poles switched together. Both share the same 25 A, 250 V AC rating, so the choice between them is purely about the number of poles and contacts needed.

Technical Details

Short Description
ABB E213-25-001 - 1P DIN-rail changeover switch, 25 A, 250 V AC, 1 CO contact.
Rated Current (Ampere)
25
Rated Voltage (VAC)
250 V AC
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
E213-25-001
Number of Poles
1P
Standards
EN60669-1, VDE0632-1, IEC60068-2-2, IEC60068-2-1, IEC60068-2-38, UL508
Delivery Date (Days)
30 days
Model Number
E213-25-001
Tariff Code
853650
