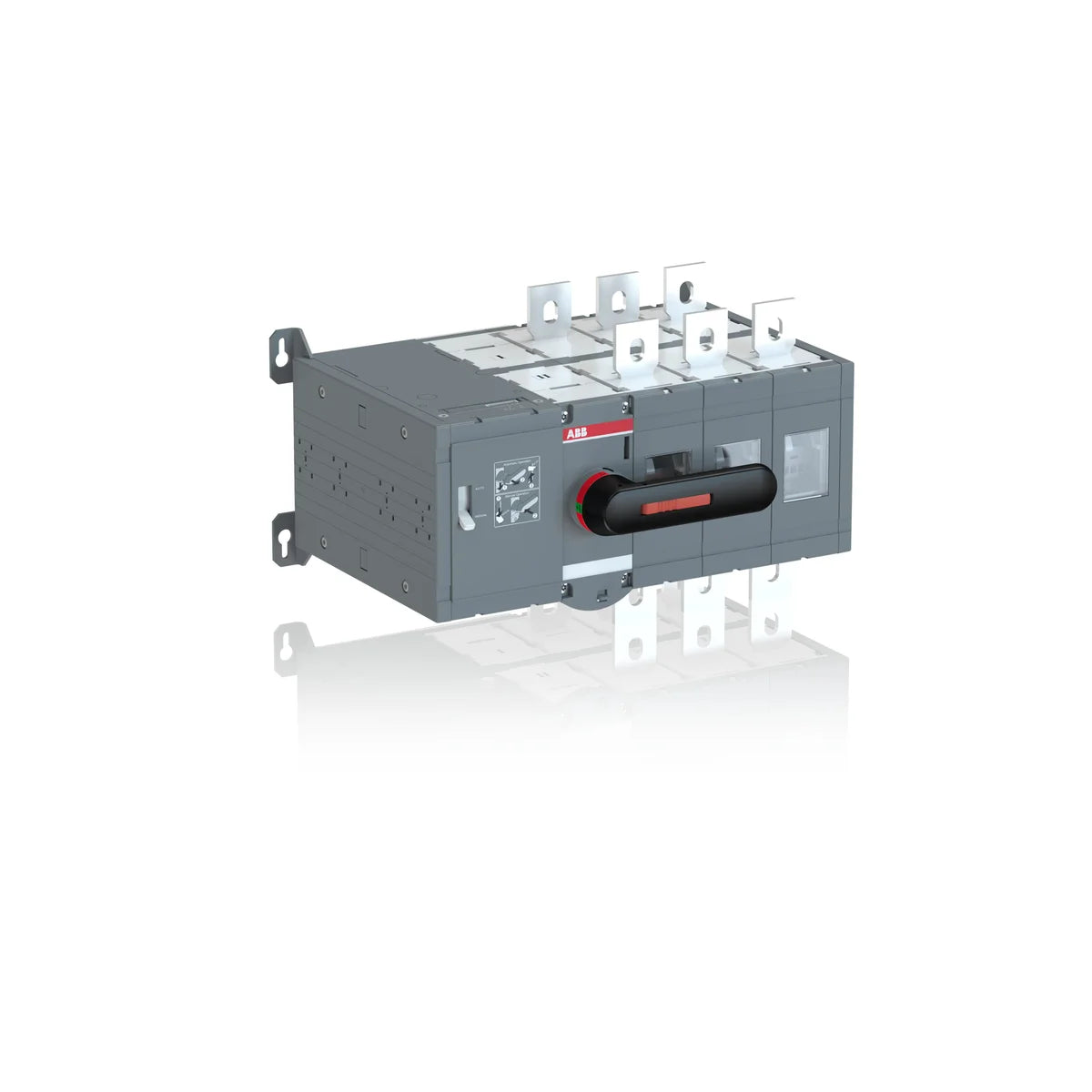

OTMABB 1SCA103567R1001 OTM630E3CM230C 3-Pole 630A 230V AC Motorized Change-Over Switch
Description
About the OTM630E3CM230C
About the OTM630E3CM230C
The ABB OTM630E3CM230C (SKU: 1SCA103567R1001) is a 3-pole 630 A motorized change-over switch from the ABB OTM series, designed for reliable automatic source switching in industrial power distribution systems. Operated by a 230 V AC motor mechanism, the OTM630E3CM230C enables seamless transfer between primary and backup power supplies, making it essential for critical infrastructure and industrial control panels. Weighing 22.08 kg, this heavy-duty device is built to IEC 60947-1 standards for long-term dependability.
Certifications & Standards
- CE: Compliant with European Union CE marking requirements for electrical equipment
- RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
- REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical safety
- EU Directive 2011/65/EU: Restriction of Hazardous Substances Directive compliance
- Amendment 2015/863: Compliant with the 2015/863 amendment updating RoHS restricted substances
- IEC 60947-1: Meets the IEC standard for low-voltage switchgear and controlgear — general rules
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible disposal
Applications & Use Cases
- Automatic transfer between mains and backup/generator power supplies in industrial facilities
- Critical power distribution panels requiring motorized source changeover
- Data centres, hospitals, and infrastructure requiring uninterrupted power supply switching
- Industrial automation and control panel integration for 3-phase 630 A load circuits
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 411 mm, 16.18 in |
|---|---|
| Product Net Height | 250 mm, 9.84 in |
| Product Net Depth / Length | 299 mm, 11.77 in |
| Product Net Weight | 22 kg |
Show all 58 specifications ↓ Show less ↑51 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA103567R1001 |
|---|---|
| Type designation | OTM630E3CM230C |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019525280 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 25
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 630 A |
|---|---|
| Conventional Thermal Current (Ithe) | Fully Enclosed 630 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Direct Mount |
| Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 25 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 630 A, (500 V) 630 A, (690 V) 630 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 630 A, (500 V) 630 A, (690 V) 630 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 630 A, (500 V) 630 A, (690 V) 630 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 630 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 630 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 355 kW, (500 V) 400 kW, (690 V) 630 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
External Classifications and Standards 4
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Logistics 10
| Package Level 1 Units | box 1 box |
|---|---|
| Package Level 1 Width | 310 mm |
| Package Level 1 Depth / Length | 560 mm |
| Package Level 1 Height | 330 mm |
| Package Level 1 Gross Weight | 22.08 kg |
| Package Level 1 EAN | 6417019525280 |
| Shipping weight | 22.08 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA103567R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
Quick answers
Questions about the OTM630E3CM230C
What is the HS code of OTM630E3CM230C for customs?
The tariff (HS) code on file for OTM630E3CM230C is 85365080.
What is the EAN of OTM630E3CM230C?
The EAN (GTIN) of OTM630E3CM230C is 6417019525280.
Where does OTM630E3CM230C ship from, and how fast?
OTM630E3CM230C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
