- Part number
- 1SCA022847R1210
- Model no
- OTM315E3CM230C
Low stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- RoHS

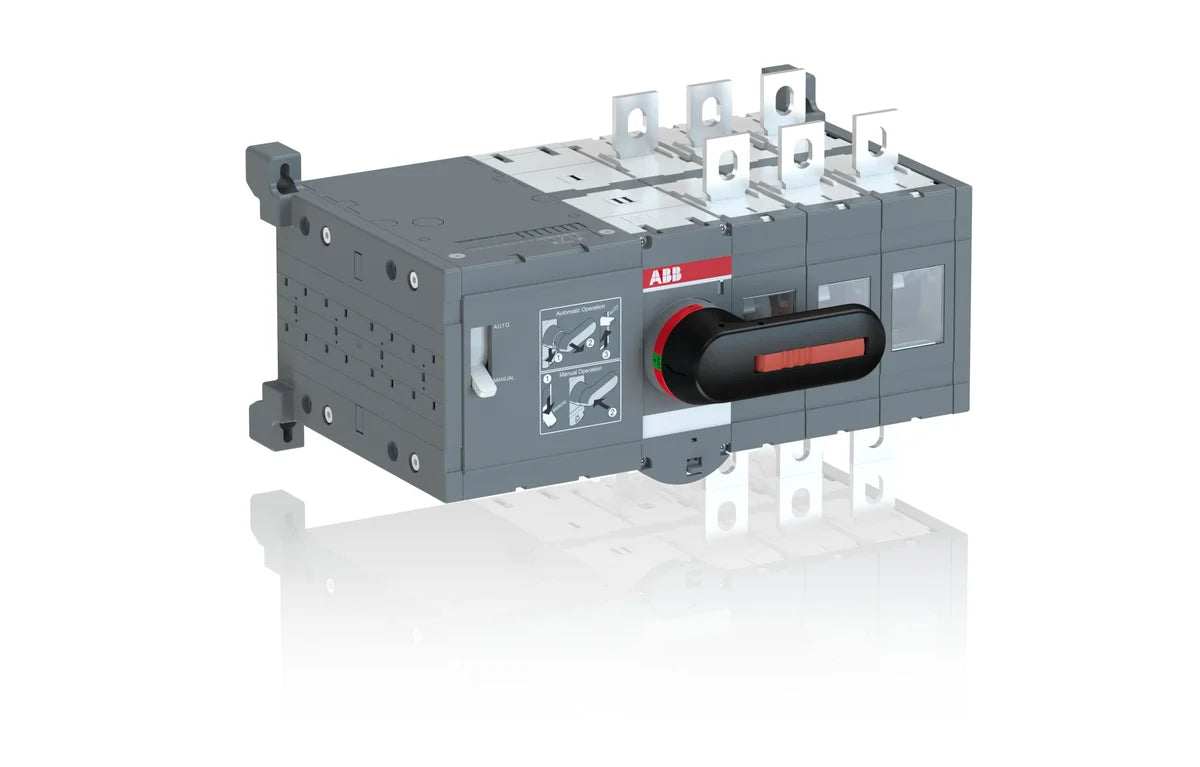

OTMABB 1SCA022847R1210 OTM315E3CM230C 3-Pole 315A 230V AC Motorized Change-Over Switch
Description
About the OTM315E3CM230C
About the OTM315E3CM230C
The ABB OTM315E3CM230C (SKU: 1SCA022847R1210) is a 3-pole motorized change-over switch rated at 315A with a 230V AC motor operator, designed for automatic source transfer between mains and standby supplies in industrial and commercial power distribution systems. Part of ABB's proven OTM series, this direct-mounted-handle switch provides reliable, remote-controllable changeover operation for critical load circuits in control panels and switchgear assemblies.
Certifications & Standards
- CE: Conforms to European Union directives for electrical equipment safety and electromagnetic compatibility
- IEC 60947-1: Compliant with the international standard for low-voltage switchgear and controlgear — general rules
- RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials per EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation (EC No 1907/2006) concerning the registration and safe use of chemical substances
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal
Applications & Use Cases
- Automatic transfer switching between utility mains and standby/generator supplies
- Remote-controlled source changeover in industrial control panels and MCC assemblies
- Critical load protection in data centres, hospitals, and process plants
- Building management and HVAC power distribution systems requiring motorized switching
- Any application where the OTM315E3CM230C must be actuated via a 230V AC control signal without manual intervention
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 323 mm, 12.72 in |
|---|---|
| Product Net Height | 185 mm, 7.28 in |
| Product Net Depth / Length | 235 mm, 9.25 in |
| Product Net Weight | 8.2 kg |
Show all 58 specifications ↓ Show less ↑51 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022847R1210 |
|---|---|
| Type designation | OTM315E3CM230C |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019297804 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 25
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 315 A |
|---|---|
| Conventional Thermal Current (Ithe) | Fully Enclosed 315 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Direct Mount |
| Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 315 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 315 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 160 kW, (500 V) 220 kW, (690 V) 315 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
| Transition Type | Open |
External Classifications and Standards 4
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Logistics 10
| Package Level 1 Units | box 1 box |
|---|---|
| Package Level 1 Width | 255 mm |
| Package Level 1 Depth / Length | 460 mm |
| Package Level 1 Height | 243 mm |
| Package Level 1 Gross Weight | 10.22 kg |
| Package Level 1 EAN | 6417019297804 |
| Shipping weight | 10.22 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022847R1210
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
Quick answers
Questions about the OTM315E3CM230C
What is the HS code of OTM315E3CM230C for customs?
The tariff (HS) code on file for OTM315E3CM230C is 85365080.
What is the EAN of OTM315E3CM230C?
The EAN (GTIN) of OTM315E3CM230C is 6417019297804.
Where does OTM315E3CM230C ship from, and how fast?
OTM315E3CM230C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
