- Part number
- 1SCA022785R6300
- Model no
- OT800E03CP
Critical stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- DNV
- RoHS

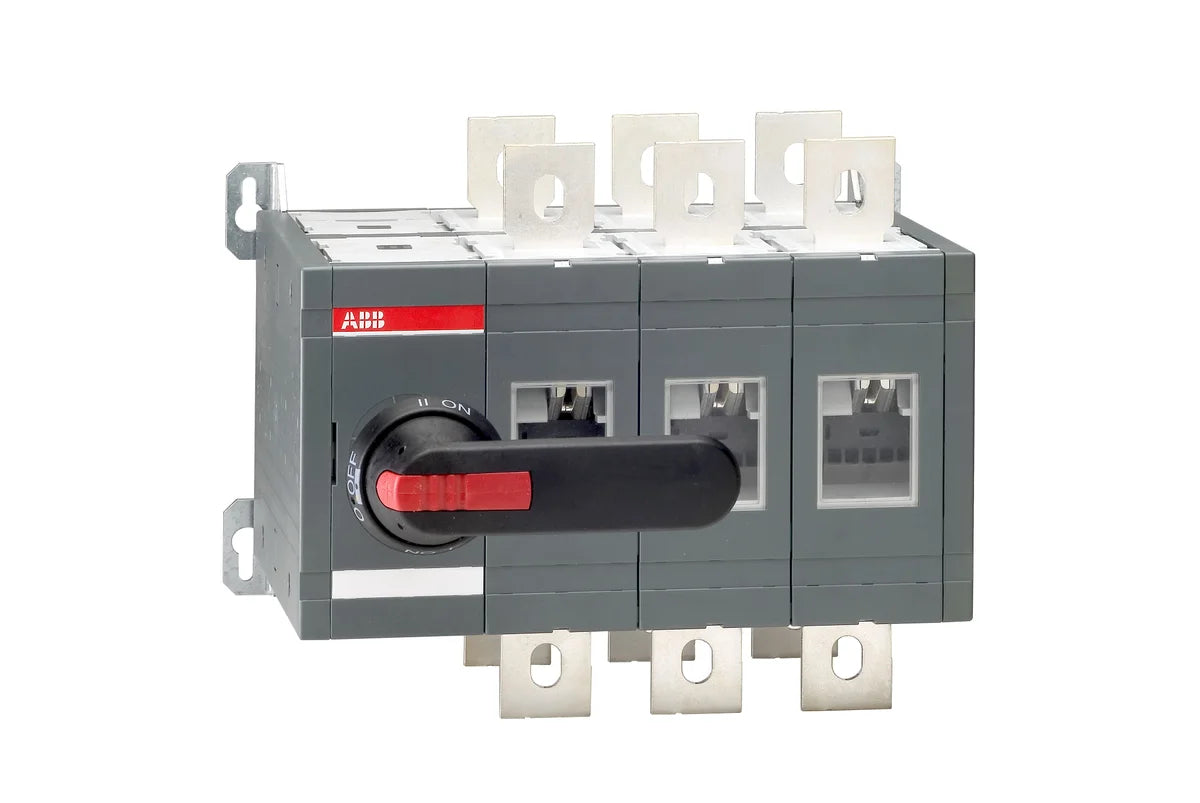

ABB 1SCA022785R6300 OT800E03CP 800A 3-Pole Base Mount Manual Change-Over Switch
Description
About the OT800E03CP
About the OT800E03CP
The ABB OT800E03CP (SKU: 1SCA022785R6300) is a heavy-duty 800A, 3-pole manual change-over switch designed for reliable source switching in industrial power distribution systems. Built for base mounting, this robust switch enables safe and manual transfer between two power sources, making it ideal for generator changeover, mains-to-standby switching, and critical load management in control panels and switchgear assemblies. Weighing 18.51 kg and certified to IEC 60947-1, DNV, and CE standards, the OT800E03CP is engineered for demanding industrial environments.
Certifications & Standards
- CE: Complies with European Union directives for safety and electromagnetic compatibility
- IEC 60947-1: Meets the IEC standard for low-voltage switchgear and controlgear — general rules
- DNV: Approved by Det Norske Veritas for marine and offshore applications
- RoHS: Compliant with the Restriction of Hazardous Substances Directive (EU 2011/65/EU)
- REACH: Compliant with EU REACH regulation on chemical substances (EC No 1907/2006)
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible disposal
Applications & Use Cases
- Generator Changeover: Manual transfer between mains and standby generator supplies in commercial and industrial facilities
- Mains-to-Standby Switching: Safe source selection for critical loads during planned or unplanned outages
- Industrial Switchgear Panels: Integration into low-voltage switchboards and distribution panels requiring high-current manual switching
- Marine & Offshore: DNV certification makes the OT800E03CP suitable for shipboard and offshore power distribution systems
- Building & Infrastructure: Power changeover for hospitals, data centres, and other facilities with redundant supply requirements
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 311 mm, 12.24 in |
|---|---|
| Product Net Height | 250 mm, 9.84 in |
| Product Net Depth / Length | 280 mm, 11.02 in |
| Product Net Weight | 15.37 kg |
Show all 57 specifications ↓ Show less ↑50 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022785R6300 |
|---|---|
| Type designation | OT800E03CP |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019255996 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 24
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 800 A |
|---|---|
| Conventional Thermal Current (Ithe) | Fully Enclosed 800 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 40 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 800 A, (500 V) 800 A, (690 V) 800 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A, (500 V) 800 A, (690 V) 800 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A, (500 V) 800 A, (690 V) 800 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 450 kW, (500 V) 560 kW, (690 V) 800 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Screw Terminals |
| Terminal Width | 40 mm |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
External Classifications and Standards 4
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Logistics 10
| Package Level 1 Units | box 1 box |
|---|---|
| Package Level 1 Width | 310 mm, 12.2 in |
| Package Level 1 Depth / Length | 560 mm, 22.05 in |
| Package Level 1 Height | 330 mm, 12.99 in |
| Package Level 1 Gross Weight | 18.51 kg, 40.81 lb |
| Package Level 1 EAN | 6417019255996 |
| Shipping weight | 18.51 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022785R6300
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- DNV
- RoHS
Quick answers
Questions about the OT800E03CP
What is the rated current of OT800E03CP?
The rated current of OT800E03CP is 800 A.
What is the HS code of OT800E03CP for customs?
The tariff (HS) code on file for OT800E03CP is 85365080.
What is the EAN of OT800E03CP?
The EAN (GTIN) of OT800E03CP is 6417019255996.
Where does OT800E03CP ship from, and how fast?
OT800E03CP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
