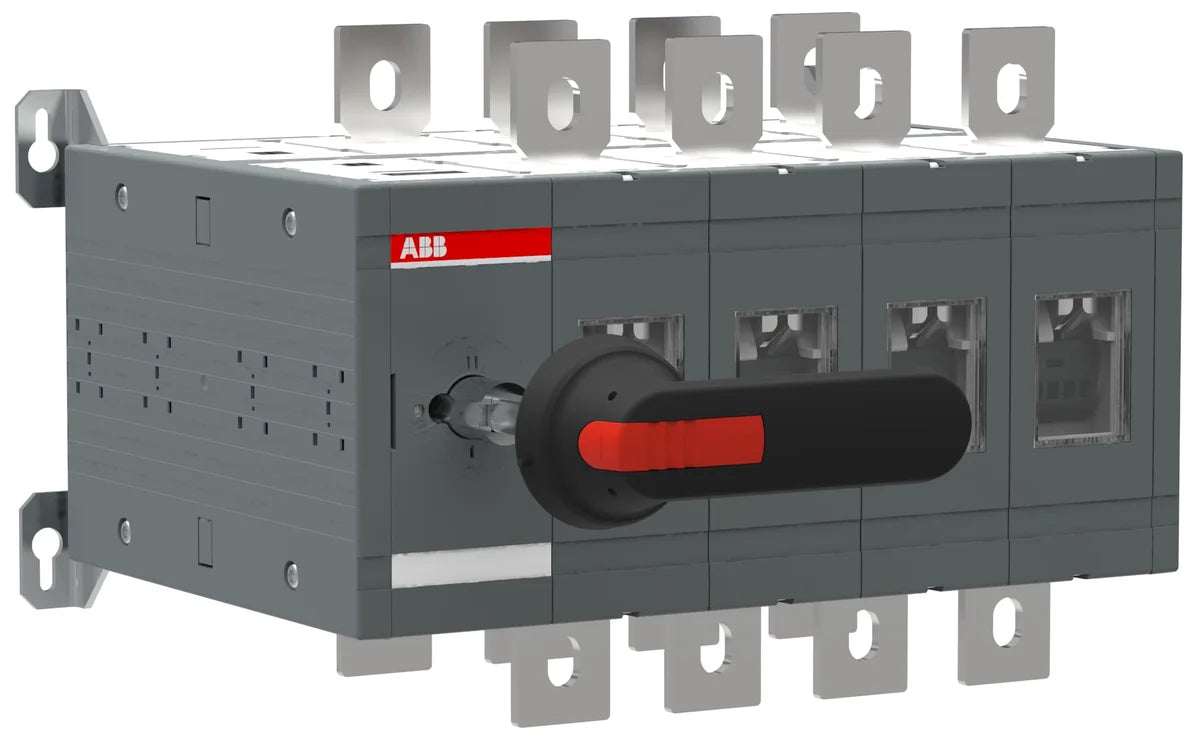

ABB 1SCA022785R6210 OT800E04CP 800A 4-Pole Base Mount Manual Change-Over Switch
Description
About the OT800E04CP
About the OT800E04CP
The ABB OT800E04CP (SKU: 1SCA022785R6210) is a 800A 4-pole manual change-over switch designed for reliable source switching in industrial power distribution and control panel applications. Featuring base mounting and rated at 800 A, the OT800E04CP delivers robust performance in demanding electrical installations. Certified to IEC 60947-1 and approved by DNV, this switch meets international standards for safety and durability.
Certifications & Standards
- RoHS: Compliant with the Restriction of Hazardous Substances Directive, ensuring restricted use of harmful materials in electrical and electronic equipment.
- REACH: Compliant with EU REACH regulation (Registration, Evaluation, Authorisation and Restriction of Chemicals), confirming safe chemical content.
- DNV: Approved by Det Norske Veritas for use in marine and offshore applications requiring rigorous type-approval standards.
- IEC 60947-1: Designed and tested in accordance with IEC 60947-1, the international standard governing low-voltage switchgear and controlgear.
- WEEE: Compliant with the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal and recycling.
Applications & Use Cases
- Manual source changeover between mains supply and generator or alternative power source in industrial facilities
- Control panel and distribution board switching for critical load management
- Marine and offshore power distribution systems (DNV approved)
- Commercial and industrial buildings requiring reliable manual transfer switching at high current ratings
- Automation and motor control centres where robust 800 A switching capability is essential
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 376 mm, 14.8 in |
|---|---|
| Product Net Height | 250 mm, 9.84 in |
| Product Net Depth / Length | 280 mm, 11.02 in |
| Product Net Weight | 18.51 kg |
Show all 59 specifications ↓ Show less ↑52 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022785R6210 |
|---|---|
| Type designation | OT800E04CP |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019255989 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 26
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 800 A |
|---|---|
| Conventional Thermal Current (Ithe) | Fully Enclosed 800 A |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 40 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 800 A, (500 V) 800 A, (690 V) 800 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A, (500 V) 800 A, (690 V) 800 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A, (500 V) 800 A, (690 V) 800 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 450 kW, (500 V) 560 kW, (690 V) 800 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 04 (Left Side) |
| Terminal Type | Screw Terminals |
| Terminal Width | 40 mm |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
External Classifications and Standards 4
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Logistics 10
| Package Level 1 Units | box 1 box |
|---|---|
| Package Level 1 Width | 310 mm, 12.2 in |
| Package Level 1 Depth / Length | 560 mm, 22.05 in |
| Package Level 1 Height | 330 mm, 12.99 in |
| Package Level 1 Gross Weight | 21.65 kg, 47.73 lb |
| Package Level 1 EAN | 6417019255989 |
| Shipping weight | 18.51 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022785R6210
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
Quick answers
Questions about the OT800E04CP
What is the rated current of OT800E04CP?
The rated current of OT800E04CP is 800 A.
What is the HS code of OT800E04CP for customs?
The tariff (HS) code on file for OT800E04CP is 85365080.
What is the EAN of OT800E04CP?
The EAN (GTIN) of OT800E04CP is 6417019255989.
Where does OT800E04CP ship from, and how fast?
OT800E04CP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
