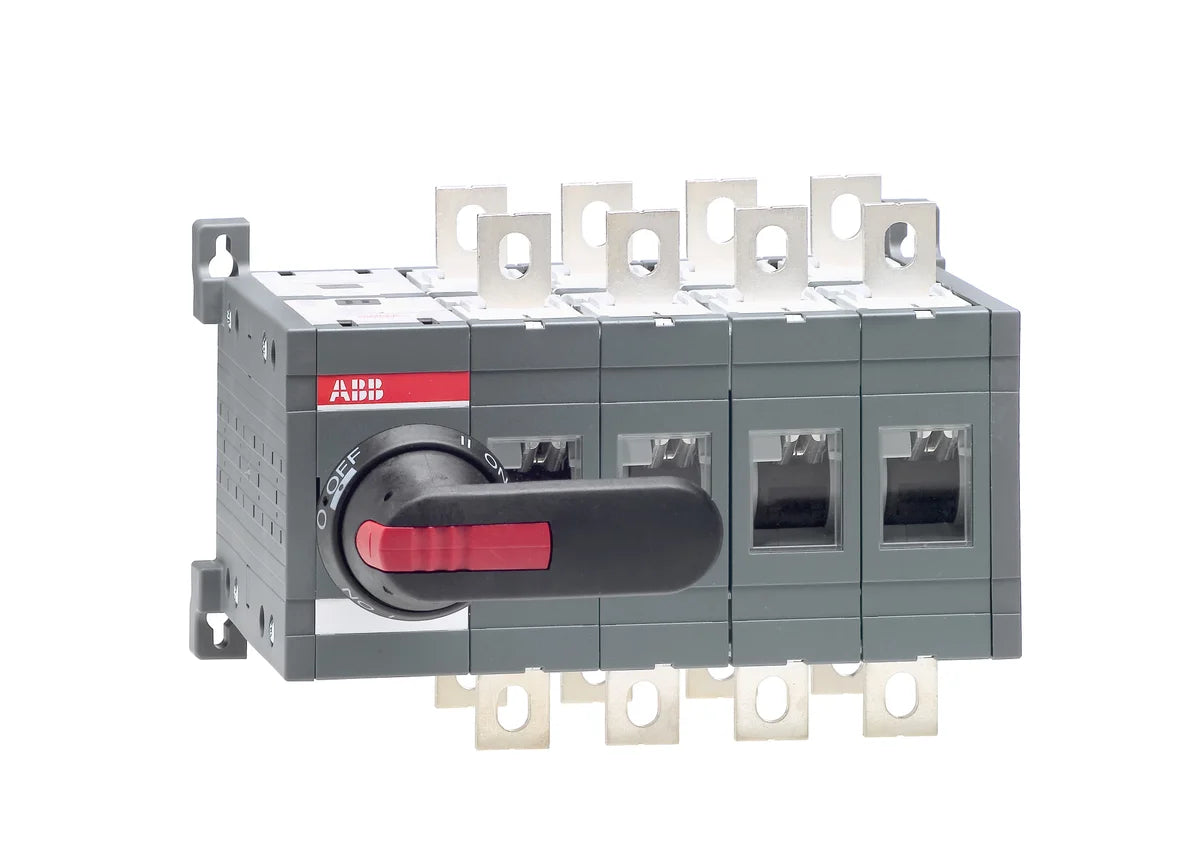

ABB 1SCA022775R7150 OT315E04CP 4-Pole 315A Base Mount Manual Change-Over Switch
Description
About the OT315E04CP
About the OT315E04CP
The ABB OT315E04CP (SKU: 1SCA022775R7150) is a 4-pole 315A manual change-over switch designed for reliable source switching in industrial power distribution and control panel applications. Base-mounted and built to IEC 60947-130 standards, the OT315E04CP delivers robust performance for transferring loads between two power sources in demanding industrial environments.
Certifications & Standards
- IEC 60947-130: Compliant with the international standard for low-voltage switchgear and controlgear — change-over switching devices
- DNV: Approved by Det Norske Veritas for use in marine and offshore applications
- RoHS: Compliant with the EU Restriction of Hazardous Substances Directive
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life recycling
Applications & Use Cases
- Manual source changeover between mains and standby/generator supply in industrial facilities
- Control panels requiring 315A load transfer across 4 poles
- Marine and offshore installations where DNV approval is required
- Commercial buildings, data centres, and manufacturing plants needing reliable manual transfer switching
- Automation and motor control centres requiring IEC-rated isolation and changeover capability
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 265 mm, 10.43 in |
|---|---|
| Product Net Height | 185 mm, 7.28 in |
| Product Net Depth / Length | 203 mm, 7.99 in |
| Product Net Weight | 7.42 kg |
Show all 59 specifications ↓ Show less ↑52 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022775R7150 |
|---|---|
| Type designation | OT315E04CP |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019252469 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 26
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 315 A |
|---|---|
| Conventional Thermal Current (Ithe) | Fully Enclosed 315 A |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 315 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 315 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 160 kW, (500 V) 220 kW, (690 V) 315 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 04 (Left Side) |
| Terminal Type | Screw Terminals |
| Terminal Width | 25 mm |
| Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
| Transition Type | Open |
External Classifications and Standards 4
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Logistics 10
| Package Level 1 Units | box 1 box |
|---|---|
| Package Level 1 Width | 240 mm, 9.45 in |
| Package Level 1 Depth / Length | 325 mm, 12.8 in |
| Package Level 1 Height | 218 mm, 8.58 in |
| Package Level 1 Gross Weight | 7.865 kg, 17.34 lb |
| Package Level 1 EAN | 6417019252469 |
| Shipping weight | 7.865 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022775R7150
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- DNV
- RoHS
Quick answers
Questions about the OT315E04CP
What is the rated current of OT315E04CP?
The rated current of OT315E04CP is 315 A.
What is the HS code of OT315E04CP for customs?
The tariff (HS) code on file for OT315E04CP is 85365080.
What is the EAN of OT315E04CP?
The EAN (GTIN) of OT315E04CP is 6417019252469.
Where does OT315E04CP ship from, and how fast?
OT315E04CP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
