- Part number
- 1SCA022772R6780
- Model no
- OT315E03CP
Critical stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- RoHS

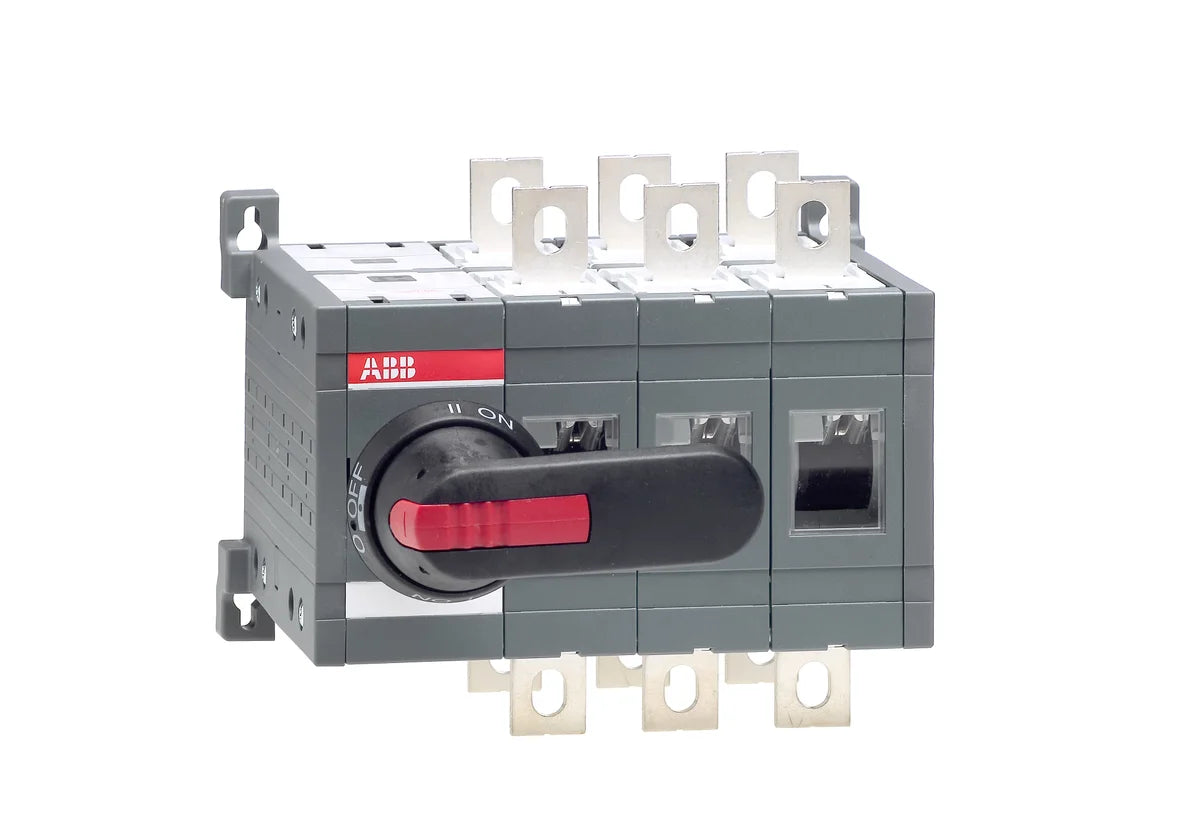

ABB 1SCA022772R6780 OT315E03CP 3-Pole 315A Base Mount Manual Change-Over Switch
Description
About the OT315E03CP
About the OT315E03CP
The ABB OT315E03CP (SKU: 1SCA022772R6780) is a 3-pole 315A manual change-over switch designed for reliable source switching in industrial power distribution and control panel applications. Featuring base mounting configuration and a robust 315A rated current capacity, the OT315E03CP delivers dependable manual changeover functionality for demanding industrial environments. Certified to IEC 60947-1 and approved by DNV, this switch meets the rigorous standards required for marine, offshore, and heavy industrial installations.
Certifications & Standards
- CE: Compliant with European Union directives for electrical equipment safety and electromagnetic compatibility
- IEC 60947-1 (IEC60947-130): Meets the international standard for low-voltage switchgear and controlgear — general rules
- DNV: Approved by Det Norske Veritas for use in marine and offshore applications requiring classification society certification
- RoHS: Compliant with the Restriction of Hazardous Substances Directive — free from restricted hazardous materials
- REACH: Compliant with EU REACH regulation on registration, evaluation, authorisation and restriction of chemicals
- WEEE: Compliant with Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal and recycling
Applications & Use Cases
- Manual source changeover between mains and generator supply in industrial facilities
- Power distribution panels requiring reliable 3-pole manual switching at up to 315A
- Marine and offshore installations where DNV certification is mandatory
- Control panels in manufacturing, process automation, and heavy industrial environments
- Changeover between two independent power sources in critical infrastructure
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 221 mm, 8.7 in |
|---|---|
| Product Net Height | 185 mm, 7.28 in |
| Product Net Depth / Length | 203 mm, 7.99 in |
| Product Net Weight | 6 kg |
Show all 57 specifications ↓ Show less ↑50 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022772R6780 |
|---|---|
| Type designation | OT315E03CP |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019251981 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 24
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 315 A |
|---|---|
| Conventional Thermal Current (Ithe) | Fully Enclosed 315 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 315 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 315 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 160 kW, (500 V) 220 kW, (690 V) 315 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Screw Terminals |
| Terminal Width | 25 mm |
| Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
| Transition Type | Open |
External Classifications and Standards 4
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Logistics 10
| Package Level 1 Units | box 1 box |
|---|---|
| Package Level 1 Width | 240 mm, 9.45 in |
| Package Level 1 Depth / Length | 270 mm, 10.63 in |
| Package Level 1 Height | 218 mm, 8.58 in |
| Package Level 1 Gross Weight | 6.4 kg, 14.11 lb |
| Package Level 1 EAN | 6417019251981 |
| Shipping weight | 6.4 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022772R6780
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
Quick answers
Questions about the OT315E03CP
What is the rated current of OT315E03CP?
The rated current of OT315E03CP is 315 A.
What is the HS code of OT315E03CP for customs?
The tariff (HS) code on file for OT315E03CP is 85365080.
What is the EAN of OT315E03CP?
The EAN (GTIN) of OT315E03CP is 6417019251981.
Where does OT315E03CP ship from, and how fast?
OT315E03CP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
