- Part number
- 1SCA022771R7520
- Model no
- OT200E03CP
Critical stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- DNV
- RoHS

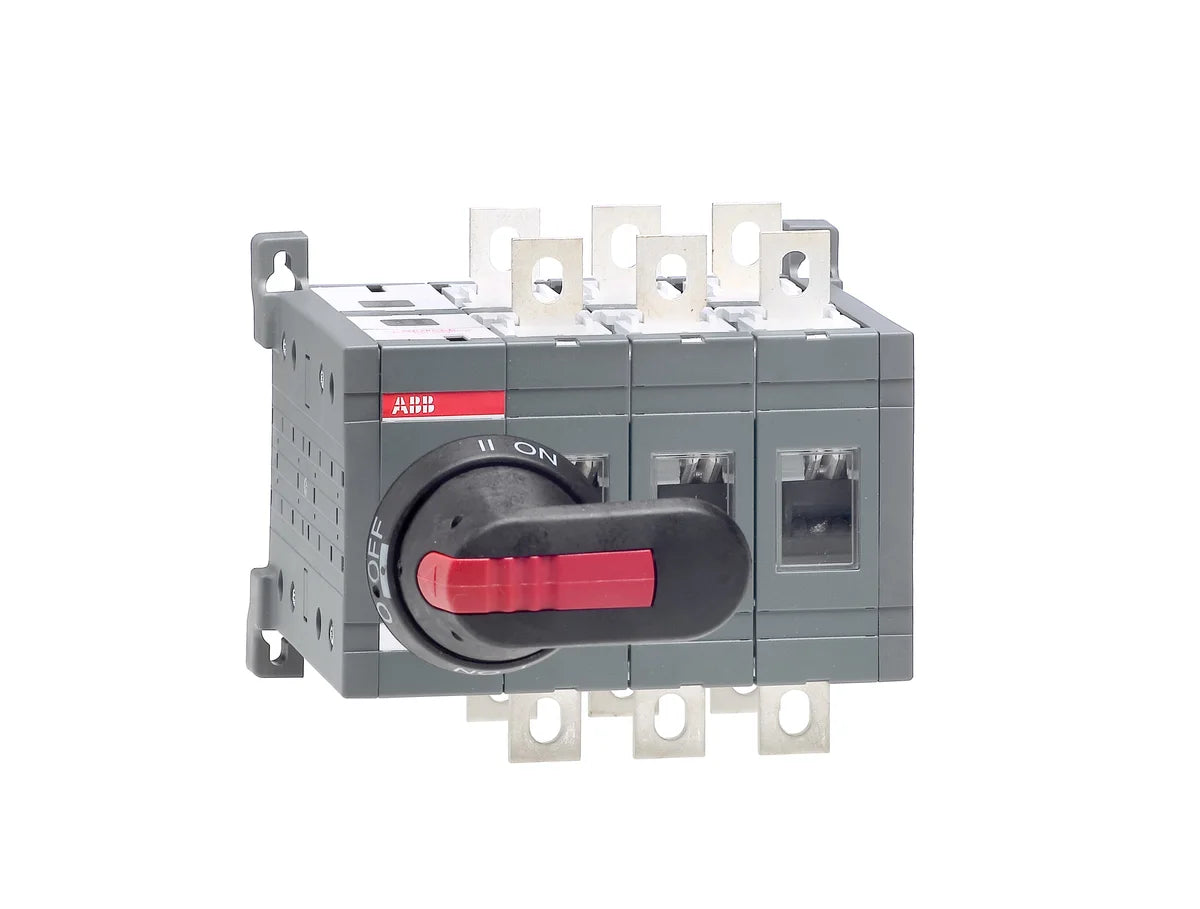

ABB 1SCA022771R7520 OT200E03CP 3-Pole 200A Base Mount Manual Change-Over Switch
Description
About the OT200E03CP
About the OT200E03CP
The ABB OT200E03CP (SKU: 1SCA022771R7520) is a 3-pole 200A manual change-over switch designed for reliable source switching in industrial control panels and power distribution systems. Base-mounted for secure installation, this robust manual change-over switch delivers dependable performance across demanding industrial automation and electrical infrastructure applications, weighing just 3.3 kg for straightforward handling and installation.
Certifications & Standards
- CE: Conforms to European Union safety, health, and environmental protection requirements
- IEC 60947-1: Compliant with the international standard for low-voltage switchgear and controlgear — general rules
- DNV: Approved by Det Norske Veritas for marine and offshore applications
- RoHS: Compliant with the Restriction of Hazardous Substances Directive — free from restricted materials
- REACH: Compliant with EU REACH regulation on chemical substance safety
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal
Applications & Use Cases
- Switching between two power sources in industrial control panels and motor control centres
- Generator changeover and mains/standby source selection in commercial and industrial facilities
- Marine and offshore power distribution systems requiring DNV-approved components
- Automation and process control panels where reliable manual source switching is critical
- Building services and HVAC electrical distribution boards
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 170 mm, 6.69 in |
|---|---|
| Product Net Height | 150 mm, 5.91 in |
| Product Net Depth / Length | 160 mm, 6.3 in |
| Product Net Weight | 3.1 kg |
Show all 57 specifications ↓ Show less ↑50 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022771R7520 |
|---|---|
| Type designation | OT200E03CP |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019251912 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 24
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
|---|---|
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 200 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW, (500 V) 132 kW, (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Screw Terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Open |
External Classifications and Standards 4
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Logistics 10
| Package Level 1 Units | box 1 box |
|---|---|
| Package Level 1 Width | 160 mm, 6.3 in |
| Package Level 1 Depth / Length | 245 mm, 9.65 in |
| Package Level 1 Height | 185 mm, 7.28 in |
| Package Level 1 Gross Weight | 3.3 kg, 7.28 lb |
| Package Level 1 EAN | 6417019251912 |
| Shipping weight | 3.3 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022771R7520
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- DNV
- RoHS
Quick answers
Questions about the OT200E03CP
What is the rated current of OT200E03CP?
The rated current of OT200E03CP is 200 A.
What is the HS code of OT200E03CP for customs?
The tariff (HS) code on file for OT200E03CP is 85365080.
What is the EAN of OT200E03CP?
The EAN (GTIN) of OT200E03CP is 6417019251912.
Where does OT200E03CP ship from, and how fast?
OT200E03CP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
