MO132| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 6.3 | 1SAM360000R1009 | On request | $34.57 | |
| 10 | 1SAM360000R1010 | On request | $39.07 | |
| 12 | 1SAM360000R1012This part | Low stock | $45.43 | |
| 16 | 1SAM360000R1011 | Low stock | $45.43 | |
| 20 | 1SAM360000R1013 | Low stock | $47.91 |

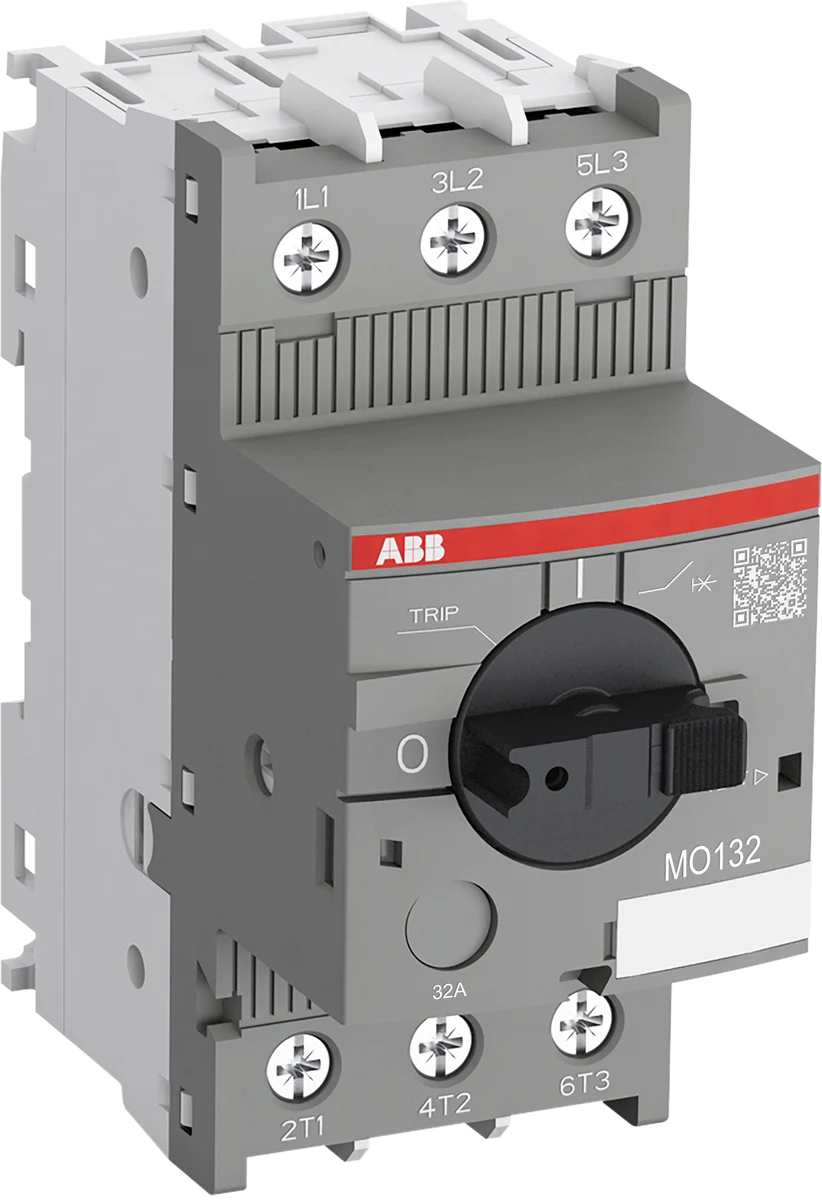

The ABB MO132-12 (SKU: 1SAM360000R1012) is a motor protection circuit-breaker from the MO132 series, designed to provide reliable magnetic-only short-circuit protection for three-phase motors up to 12 A at 400 V AC. With an exceptional breaking capacity of 100 kA at 400 V AC, the MO132-12 delivers robust industrial-grade protection in a compact 45 mm wide housing, making it ideal for integration into control panels and motor starter assemblies across demanding automation environments.
| Product Net Width | 45 mm |
|---|---|
| Product Net Height | 97.8 mm |
| Product Net Depth / Length | 86.55 mm |
| Product Net Weight | 0.31 kg |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 100 kA, (400 V AC) 100 kA, (440 V AC) 20 kA, (500 V AC) 20 kA, (690 V AC) 3 kA |
|---|---|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 100 kA, (400 V AC) 100 kA, (440 V AC) 20 kA, (500 V AC) 20 kA, (690 V AC) 3 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 150 A |
| Setting Range | None |
| Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 5.5 kW |
| Rated Operational Power AC-3e (Pe) | (400 V) Three Phase 5.5 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 12 A |
| Rated Operational Current AC-3 (Ie) | 12 A |
| Rated Operational Current AC-3e (Ie) | 12 A |
| Rated Frequency (f) | Main Circuit 50 Hz, Main Circuit 60 Hz |
| Operating Frequency (fsw) | 0 ... 400 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Power Loss | at Rated Operating Conditions AC-3 per Pole 1.6 W |
| Number of Poles | 3P |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 12 A |
| Degree of Protection | Housing IP20, Main Circuit Terminals IP10 |
| Pollution Degree | 3 |
| Electrical Durability | 50000 cycle |
| Mechanical Durability | Nr. Operations 100000 cycle |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 6 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 6 mm², Flexible 1/2x 1 ... 2.5 mm², Flexible 1/2x 2.5 ... 6 mm², Rigid 1/2x 1 ... 2.5 mm², Rigid 1/2x 2.5 ... 6 mm² |
| Tightening Torque | Main Circuit 1.5 N·m |
| Wire Stripping Length | Main Circuit 10 mm |
| Recommended Screw Driver | Pozidriv 2 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal - Up to 400 V 0 mm, Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm, Electrical Conductive Board, Vertical 75 mm, Other Device Same Type, Horizontal 0 mm, Other Device Same Type, Vertical 150 mm |
| Contact Position Indication | ON / OFF / TRIP |
| Standards | IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L |
| Remarks | For overload protection of the motors, an appropriate thermal or electronic overload relays must be used |
| Short-Circuit Current Rating (SCCR) UL/CSA | Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 35 kA, Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 35 kA, Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 30 kA, Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 18 kA, Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 30 kA, Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 18 kA |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 3 Hp, (208 V AC) Three Phase 3 Hp, (220 ... 240 V AC) Three Phase 3 Hp, (440 ... 480 V AC) Three Phase 7.5 Hp, (550 ... 600 V AC) Three Phase 10 Hp |
| Full Load Amps Motor Use | (200 V AC) Three Phase 11 A, (208 V AC) Three Phase 10.6 A, (220 ... 240 V AC) Three Phase 9.6 A, (440 ... 480 V AC) Three Phase 11 A, (550 ... 600 V AC) Three Phase 11 A |
| Locked Rotor Amps | (200 V AC) Three Phase 73.6 A, (208 V AC) Three Phase 71 A, (220 ... 240 V AC) Three Phase 64 A, (440 ... 480 V AC) Three Phase 63.5 A, (550 ... 600 V AC) Three Phase 64.8 A |
| General Use Rating UL/CSA | (600 V AC) 12 A |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 16-8 AWG, Stranded 1/2x 16-8 AWG |
| Tightening Torque UL/CSA | Main Circuit 18 in·lb |
| Part number | 1SAM360000R1012 |
|---|---|
| Type designation | MO132-12 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614400278 |
| ETIM class | EC000074 |
| eCl@ss | 27370401 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362010 |
| Ambient Air Temperature | Around the Enclosure 0 ... +40 °C, Operation -25 ... +60 °C, Storage -50 ... +80 °C |
|---|---|
| Ambient Air Temperature Compensation | No |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| REACH Declaration | 1SAA963005-4502 |
|---|---|
| RoHS Declaration | 1SAA963006-4501 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 10 | EC000074 - Motor protection circuit-breaker |
|---|---|
| eClass | V11.0 : 27370401 |
| UNSPSC | 39121521 |
| E-Number (Sweden) | 3110040 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 92 mm |
| Package Level 1 Depth / Length | 102 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Gross Weight | 0.325 kg |
| Package Level 1 EAN | 4013614400278 |
| Package Level 2 Units | carton 40 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 13.386 kg |
| Package Level 2 EAN | 4013614443725 |
| Shipping weight | 0.325 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheet| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 0.16 A | 1SAM360000R1001 | MO132-0.16 | Low stock | $34.57 | |||
| 0.25 A | 1SAM360000R1002 | MO132-0.25 | Low stock | $34.57 | |||
| 0.4 A | 1SAM360000R1003 | MO132-0.4 | Low stock | $34.57 | |||
| 0.63 A | 1SAM360000R1004 | MO132-0.63 | In stock | $34.57 | |||
| 1.0 A | 1SAM360000R1005 | MO132-1.0 | Low stock | $34.57 | |||
| 1.6 A | 1SAM360000R1006 | MO132-1.6 | Low stock | $34.57 | |||
| 2.5 A | 1SAM360000R1007 | MO132-2.5 | Low stock | $34.57 | |||
| 4 A | 1SAM360000R1008 | MO132-4.0 | Low stock | $34.57 | |||
| 6.3 A | 1SAM360000R1009 | MO132-6.3 | On request | — | $34.57 | Quote | |
| 10 A | 1SAM360000R1010 | MO132-10 | On request | — | $39.07 | Quote | |
| 12 A | 1SAM360000R1012 This part | MO132-12 | Low stock | $45.43 | |||
| 16 A | 1SAM360000R1011 | MO132-16 | Low stock | $45.43 | |||
| 20 A | 1SAM360000R1013 | MO132-20 | Low stock | $47.91 |
The rated current of MO132-12 is 12 A.
The rated operational voltage of MO132-12 is 400 V AC.
The tariff (HS) code on file for MO132-12 is 85362010.
The EAN (GTIN) of MO132-12 is 4013614400278.
MO132-12 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
