MO132| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 4 | 1SAM360000R1008 | Low stock | $34.57 | |
| 6.3 | 1SAM360000R1009 | On request | $34.57 | |
| 10 | 1SAM360000R1010This part | On request | $39.07 | |
| 12 | 1SAM360000R1012 | Low stock | $45.43 | |
| 16 | 1SAM360000R1011 | Low stock | $45.43 |

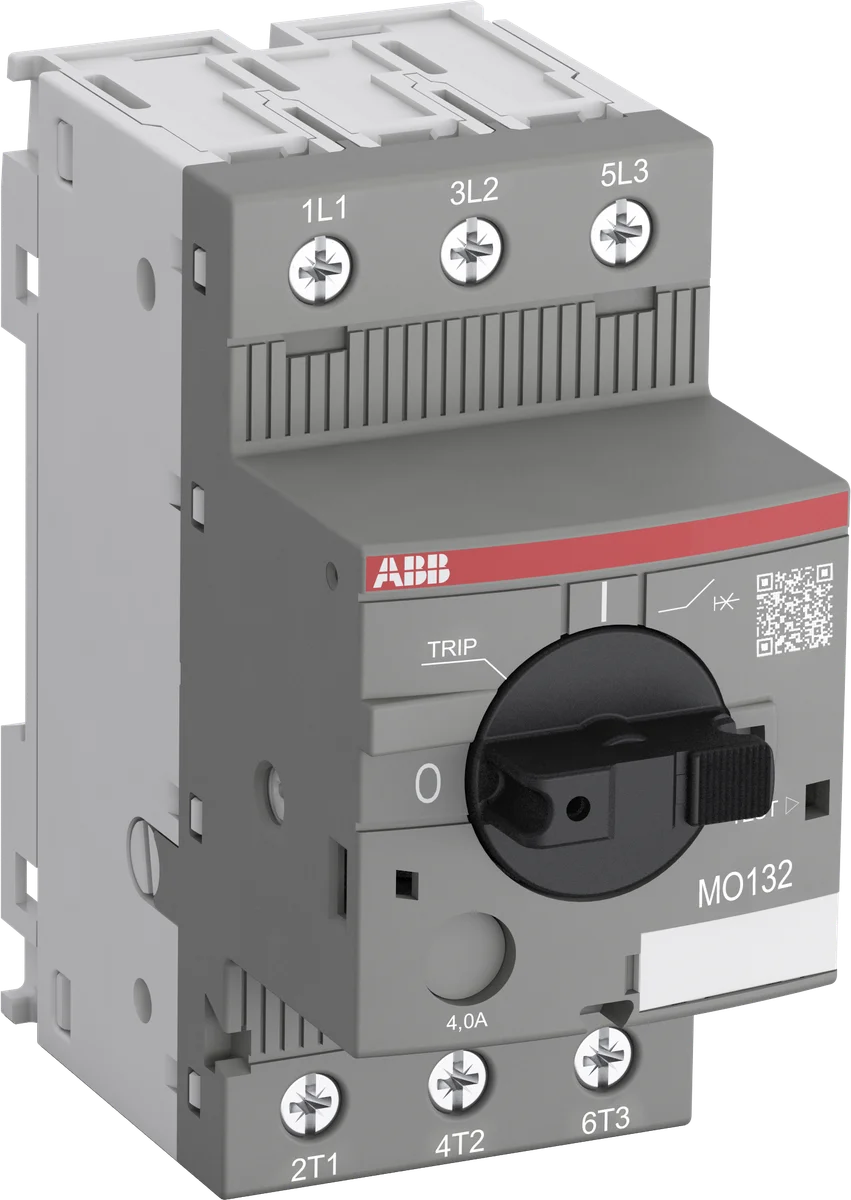

The ABB MO132-10 motor protection circuit-breaker (SKU 1SAM360000R1010) is a magnetic-only manual motor starter designed to provide reliable short-circuit protection for three-phase motors up to 10 A at 400 V AC. Part of ABB's MO132 series, this compact 3-pole device delivers an exceptional breaking capacity of 100 kA at 400 V AC within a slim 45 mm panel width, making it an efficient solution for industrial control panels and motor starter assemblies.
The MO132-10 is engineered for industrial automation and motor control applications where fast, reliable short-circuit disconnection is required without thermal overload functionality. Typical installations include motor control centres (MCCs), machine tool control panels, conveyor drives, pump motor starters, and HVAC equipment. Its compact 45 mm width optimises DIN rail space in densely populated control panels, while the 100 kA breaking capacity ensures compliance with demanding industrial network fault levels. Procurement engineers and panel builders sourcing ABB motor protection circuit-breakers will find the MO132-10 (1SAM360000R1010) ideal for applications requiring IEC 60947-4 compliant magnetic-only protection.
| Product Net Width | 45 mm |
|---|---|
| Product Net Height | 90 mm |
| Product Net Depth / Length | 86.75 mm |
| Product Net Weight | 0.265 kg |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 100 kA, (400 V AC) 100 kA, (440 V AC) 20 kA, (500 V AC) 20 kA, (690 V AC) 3 kA |
|---|---|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 100 kA, (400 V AC) 100 kA, (440 V AC) 20 kA, (500 V AC) 20 kA, (690 V AC) 3 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 125 A |
| Setting Range | None |
| Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 4 kW |
| Rated Operational Power AC-3e (Pe) | (400 V) Three Phase 4 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 10 A |
| Rated Operational Current AC-3 (Ie) | 10 A |
| Rated Operational Current AC-3e (Ie) | 10 A |
| Rated Frequency (f) | Main Circuit 50 Hz, Main Circuit 60 Hz |
| Operating Frequency (fsw) | 0 ... 400 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Power Loss | at Rated Operating Conditions AC-3 per Pole 2.2 W |
| Number of Poles | 3P |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 10 A |
| Degree of Protection | Housing IP20, Main Circuit Terminals IP10 |
| Pollution Degree | 3 |
| Electrical Durability | 50000 cycle |
| Mechanical Durability | Nr. Operations 100000 cycle |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm², Flexible 1/2x 0.75 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm² |
| Tightening Torque | Main Circuit 0.8 ... 1.2 N·m |
| Wire Stripping Length | Main Circuit 9 mm |
| Recommended Screw Driver | Pozidriv 2 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal - Up to 400 V 0 mm, Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm, Electrical Conductive Board, Vertical 75 mm, Other Device Same Type, Horizontal 0 mm, Other Device Same Type, Vertical 150 mm |
| Contact Position Indication | ON / OFF / TRIP |
| Standards | IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L |
| Remarks | For overload protection of the motors, an appropriate thermal or electronic overload relays must be used |
| Short-Circuit Current Rating (SCCR) UL/CSA | Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kA, Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 35 kA, Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kA, Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 18 kA, Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kA, Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 18 kA |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 2 Hp, (208 V AC) Three Phase 2 Hp, (220 ... 240 V AC) Three Phase 3 Hp, (440 ... 480 V AC) Three Phase 5 Hp, (550 ... 600 V AC) Three Phase 7.5 Hp |
| Full Load Amps Motor Use | (200 V AC) Three Phase 7.8 A, (208 V AC) Three Phase 7.5 A, (220 ... 240 V AC) Three Phase 9.6 A, (440 ... 480 V AC) Three Phase 7.6 A, (550 ... 600 V AC) Three Phase 9 A |
| Locked Rotor Amps | (200 V AC) Three Phase 57.5 A, (208 V AC) Three Phase 55 A, (220 ... 240 V AC) Three Phase 64 A, (440 ... 480 V AC) Three Phase 46 A, (550 ... 600 V AC) Three Phase 50.8 A |
| General Use Rating UL/CSA | (600 V AC) 10 A |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 16-12 AWG, Stranded 1/2x 16-12 AWG |
| Tightening Torque UL/CSA | Main Circuit 10 in·lb |
| Part number | 1SAM360000R1010 |
|---|---|
| Type designation | MO132-10 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614400254 |
| ETIM class | EC000074 |
| eCl@ss | 27370401 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362010 |
| Ambient Air Temperature | Around the Enclosure 0 ... +40 °C, Operation -25 ... +60 °C, Storage -50 ... +80 °C |
|---|---|
| Ambient Air Temperature Compensation | No |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| REACH Declaration | 1SAA963005-4502 |
|---|---|
| RoHS Declaration | 1SAA963006-4501 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 10 | EC000074 - Motor protection circuit-breaker |
|---|---|
| eClass | V11.0 : 27370401 |
| UNSPSC | 39121521 |
| E-Number (Sweden) | 3110038 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 92 mm |
| Package Level 1 Depth / Length | 95 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Gross Weight | 0.28 kg |
| Package Level 1 EAN | 4013614400254 |
| Package Level 2 Units | carton 40 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 11.586 kg |
| Package Level 2 EAN | 4013614443701 |
| Shipping weight | 0.28 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheet| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 0.16 A | 1SAM360000R1001 | MO132-0.16 | Low stock | $34.57 | |||
| 0.25 A | 1SAM360000R1002 | MO132-0.25 | Low stock | $34.57 | |||
| 0.4 A | 1SAM360000R1003 | MO132-0.4 | Low stock | $34.57 | |||
| 0.63 A | 1SAM360000R1004 | MO132-0.63 | In stock | $34.57 | |||
| 1.0 A | 1SAM360000R1005 | MO132-1.0 | Low stock | $34.57 | |||
| 1.6 A | 1SAM360000R1006 | MO132-1.6 | Low stock | $34.57 | |||
| 2.5 A | 1SAM360000R1007 | MO132-2.5 | Low stock | $34.57 | |||
| 4 A | 1SAM360000R1008 | MO132-4.0 | Low stock | $34.57 | |||
| 6.3 A | 1SAM360000R1009 | MO132-6.3 | On request | — | $34.57 | Quote | |
| 10 A | 1SAM360000R1010 This part | MO132-10 | On request | — | $39.07 | Quote | |
| 12 A | 1SAM360000R1012 | MO132-12 | Low stock | $45.43 | |||
| 16 A | 1SAM360000R1011 | MO132-16 | Low stock | $45.43 | |||
| 20 A | 1SAM360000R1013 | MO132-20 | Low stock | $47.91 |
The rated current of MO132-10 is 10 A.
The rated operational voltage of MO132-10 is 400 V AC.
The tariff (HS) code on file for MO132-10 is 85362010.
The EAN (GTIN) of MO132-10 is 4013614400254.
MO132-10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
