Part number
1SAM201920R1011
Model no
MSHD-LTB
$19.56 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
MSHD

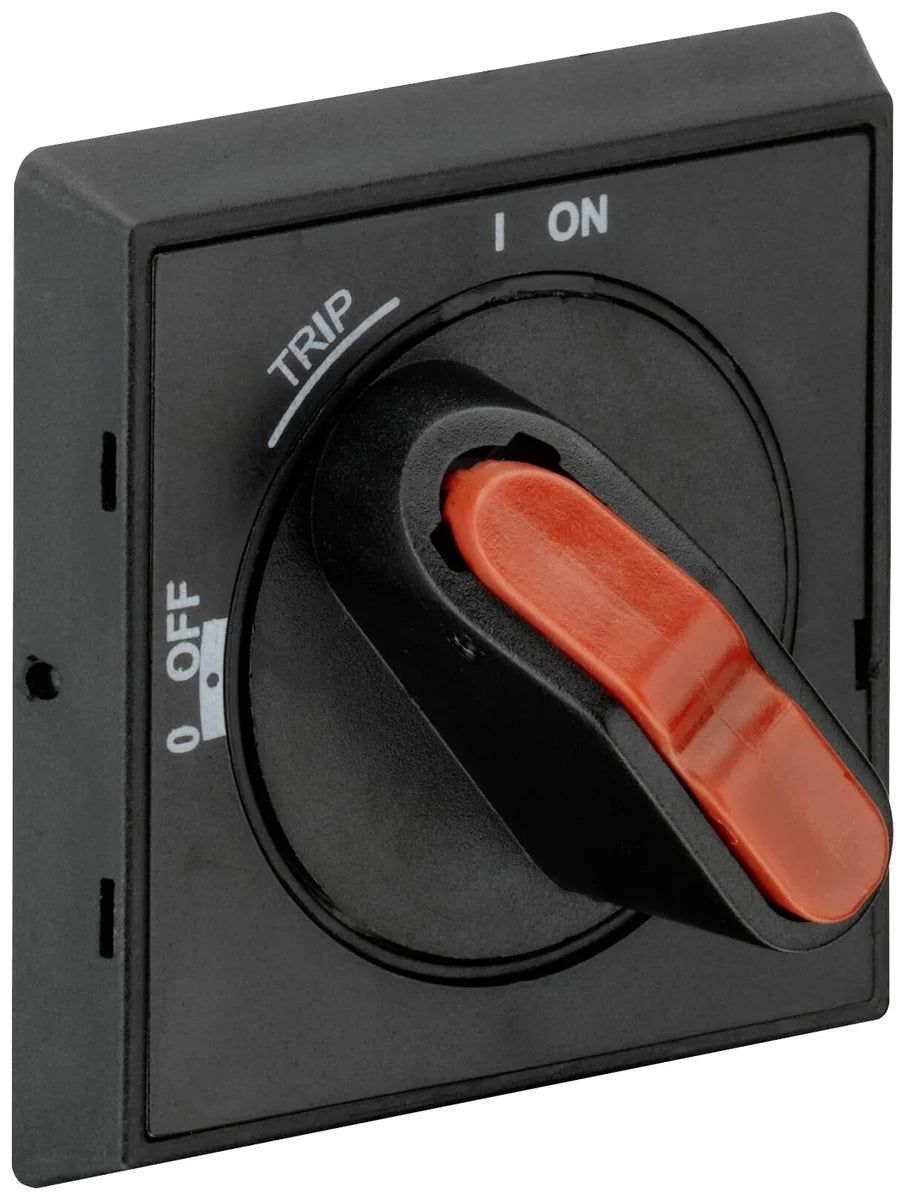

ABB 1SAM201920R1011 MSHD-LTB IP64 Black 3-Times Lockable Defeatable 0-TRIP-I Handle for Power Circuit Breaker

Degree of protection
IP64
EAN
4013614441820
Description

About the MSHD-LTB

The ABB MSHD-LTB (SKU: 1SAM201920R1011) is an IP64-rated black handle accessory for ABB power circuit breakers, offering three-times lockable operation, a defeatable mechanism, and clearly defined 0-TRIP-I switching positions. Designed for demanding industrial control panel environments, the MSHD-LTB provides secure, reliable manual control of the breaker's switching state while meeting international safety and environmental standards.

Certifications & Standards

  • CE: Complies with European Union directives for electrical equipment safety and electromagnetic compatibility
  • CSA: Certified by the Canadian Standards Association for use in North American markets
  • REACH: Compliant with EU REACH regulation on chemical substances (SVHC)
  • RoHS: Compliant with EU Restriction of Hazardous Substances directive, free from restricted materials
  • WEEE: Registered under the EU Waste Electrical and Electronic Equipment directive for responsible disposal
  • UKCA: UK Conformity Assessed marking for Great Britain market access post-Brexit

Applications & Use Cases

  • Manual ON/OFF/TRIP switching of ABB MSHD-series compatible power circuit breakers in control panels
  • Lockout/tagout (LOTO) applications requiring up to three padlock positions for electrical safety compliance
  • Industrial automation and motor control centres (MCCs) where IP64 ingress protection against dust and water splash is required
  • Machinery and plant equipment panels in manufacturing, energy distribution, and building services
  • Applications where the defeatable feature allows the handle to be disengaged during maintenance

Frequently Asked Questions

  • What does "defeatable" mean on the MSHD-LTB? The defeatable feature allows the handle mechanism to be disengaged from the breaker, enabling the breaker to be operated independently — useful during commissioning or maintenance procedures.
  • How many padlocks can be applied to the MSHD-LTB? The MSHD-LTB supports up to three padlocks simultaneously, satisfying multi-person LOTO safety requirements.
  • What IP rating does the MSHD-LTB carry? The handle carries an IP64 rating, providing complete protection against dust ingress and protection against water splashing from any direction.
  • What switching positions are available? The MSHD-LTB provides three clearly marked positions: 0 (OFF), TRIP (tripped state indication), and I (ON).
Specification

Full specification

37 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 65.6 mm
Product Net Height 65.5 mm
Product Net Depth / Length 57.9 mm
Product Net Weight 0.065 kg

Technical 3

Degree of Protection IP64
Tightening Torque 0.12 N·m
Contact Position Indication ON / OFF / TRIP

Technical UL/CSA 1

Tightening Torque UL/CSA 1.06 in·lb
Show all 37 specifications ↓ Show less ↑29 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.

Identification 11

Part number 1SAM201920R1011
Type designation MSHD-LTB
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614441820
ETIM class EC000229
eCl@ss 27370414
Minimum Order Quantity 1 piece
Customs Tariff Number 85389099

Material Compliance 5

REACH Declaration 1SAA963005-4502
RoHS Declaration 1SAA963006-4501
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006539
WEEE Category Product Not in WEEE Scope

External Classifications and Standards 3

ETIM 10 EC000229 - Handle for power circuit breaker
eClass V11.0 : 27370414
UNSPSC 31162801

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 130 mm
Package Level 1 Depth / Length 70 mm
Package Level 1 Height 170 mm
Package Level 1 Gross Weight 0.1 kg
Package Level 1 EAN 4013614441820
Shipping weight 0.1 kg
Ships from Türkiye
Dispatch 17 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SAM201920R1011

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
Quick answers

Questions about the MSHD-LTB

What is the HS code of MSHD-LTB for customs?

The tariff (HS) code on file for MSHD-LTB is 85389099.

What is the EAN of MSHD-LTB?

The EAN (GTIN) of MSHD-LTB is 4013614441820.

Where does MSHD-LTB ship from, and how fast?

MSHD-LTB ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
