- Part number
- 6GT2898-5AA00
- Model no
- Fixing hood for RF645T
Siemens 6GT2898-5AA00 SIMATIC RF600 Fixing Hood for RF645T 79x15.4x39.4mm RFID Component
Siemens SIMATIC RF600 fixing hood for RF645T transponder, PA 6.6 GF, black, longitudinal mounting.
Description
About the Fixing hood for RF645T
About the Fixing hood for RF645T

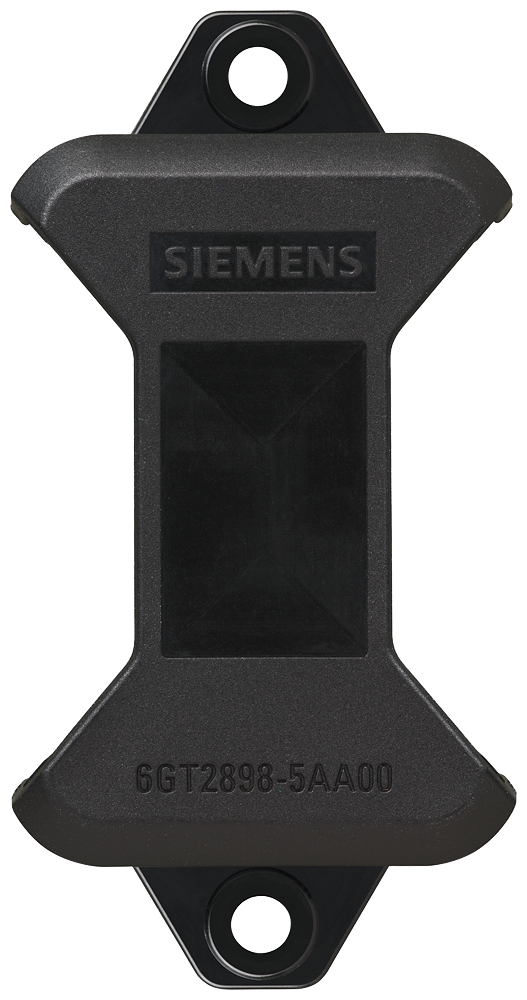

The Siemens 6GT2898-5AA00 is a SIMATIC RF600 fixing hood for mounting the RF645T transponder, molded in black glass-fiber-reinforced PA 6.6, measuring 79 x 15.4 x 39.4 mm. It holds the RF645T lying longitudinally in the holder, and it is rated -40 to +85 degrees C for operation, storage and transport alike.
Selection Notes
The longitudinal seating in this hood sets it apart from the RF645T fixing bracket, which holds the transponder crosswise instead, so the choice depends on the panel's available mounting length versus width. The glass-fiber-reinforced PA 6.6 body matches the RF645T's own -40 to +85 degrees C rating, so it does not become the limiting factor in cold-store or outdoor installations.
Specification
Full specification
General 5
| product type designation | Fixing hood for RF645T |
|---|---|
| product description | Fixing hood for RF645T transponders SIMATIC RF600 Fixing hood for RF645T Plastic PA 6.6 30GF minimum order quantity 20 units. |
| product brand name | SIMATIC RF |
| suitability for use | Transponder lies longitudinally in the holder |
| suitability for operation | for transponders RF645T |
Mechanical data 2
| material | PA 6.6 GF |
|---|---|
| color | black |
Ambient conditions 3
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
Show all 30 specifications ↓ Show less ↑20 more values in Identification, Design, dimensions and weights, Logistics.
Identification 10
| Part number | 6GT2898-5AA00 |
|---|---|
| Type designation | Fixing hood for RF645T |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106025748 |
| ETIM class | EC002906 |
| eCl@ss | 27144078 |
Design, dimensions and weights 3
| width | 79 mm |
|---|---|
| height | 15.4 mm |
| depth | 39.4 mm |
Logistics 7
| Net weight | 0.008 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | DE |
| Shipping weight | 0.508 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2898-5AA00
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Fixing hood for RF645T
What is the HS code of Fixing hood for RF645T for customs?
The tariff (HS) code on file for Fixing hood for RF645T is 39269097.
What is the EAN of Fixing hood for RF645T?
The EAN (GTIN) of Fixing hood for RF645T is 4034106025748.
Where does Fixing hood for RF645T ship from, and how fast?
Fixing hood for RF645T ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
