Siemens 6GT2891-4FN10 SIMATIC RFID RS422 Connecting Cable M12/M12 10m RFID Cable

% $-97.62

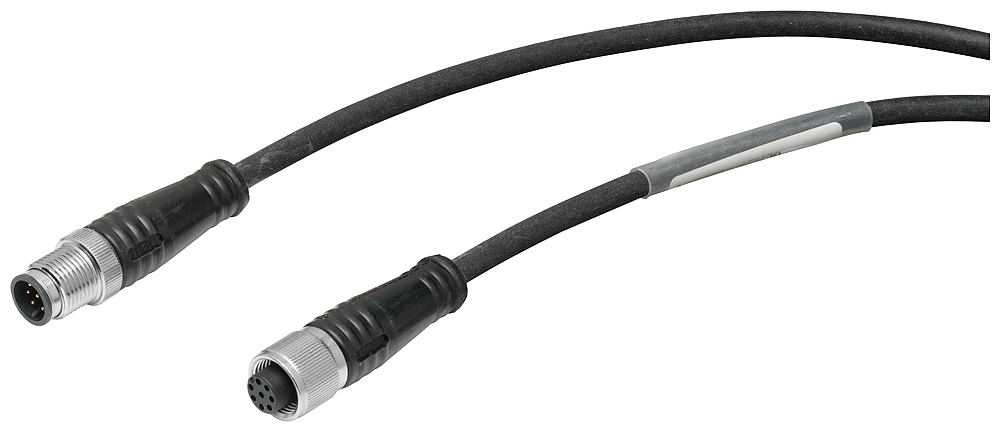

Siemens 6GT2891-4FN10 SIMATIC RFID RS422 cable M12 to M12 - 10m
Siemens 6GT2891-4FN10 SIMATIC RFID RS422 cable M12 to M12 - 10m

Siemens 6GT2891-4FN10 SIMATIC RFID RS422 Connecting Cable M12/M12 10m RFID Cable

Brand: Siemens
Reference No: 6GT2891-4FN10
Catalog No: 6GT2891-4FN10
Series: SIMATIC RFID
Tariff Code (HS): 85444290
Rated Voltage: 300 V
Communication: RS-422
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$97.62

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6GT2891-4FN10 is a SIMATIC RFID RS422 connecting or extension cable between a reader such as the RF160C, RF170C or RF18xC and its communication module, terminated with a straight M12 8-pin male connector on one end and a straight M12 8-pin female connector on the other. The 6-core cable runs 10 m and carries EAC approval.

Technical Specifications

Catalog No 6GT2891-4FN10
SKU 6GT2891-4FN10
Brand Siemens
Series SIMATIC RFID
Product Type Designation Cable RS422, M12 / M12
Product Description Highly flexible communication line (6-core)
Suitability for Use Plug-in or extension cable for connecting a reader to a communication module
Cable Designation L-YC11Y 6x1x0.25 6x24AWG CM
Wire Length 10 m
Number of Electrical Connections 2
Type of Electrical Connection M12 (male, 8 pin, straight) / M12 (female, 8 pin, straight)
Loop Resistance per Length (max) 160 mΩ/m
Insulation Resistance Coefficient 20 GΩ·m
Operating Voltage (max) 300 V
Number of Electrical Cores 6
Shield Design Braided shield made of tin-plated copper wires
Outer Diameter of Cable Sheath 5.4 mm
Outer Diameter Tolerance 0.2 mm
Wire Insulation Material PVC
Cable Sheath Material PUR
Color of Data Wire Insulation DIN 47100
Cable Sheath Color Black
Bending Radius, Single Bend (min) 21.6 mm
Bending Radius, Multiple Bends (min) 43 mm
Bending Radius, Continuous Bending 75 mm
Number of Bending Cycles 3,000,000
Tensile Load (max) 200 N
Weight per Length 45 kg/km
Ambient Temperature, Operation -30 ... +80 °C
Ambient Temperature, Storage -30 ... +80 °C
Ambient Temperature, Transport -30 ... +80 °C
Ambient Temperature, Installation -30 ... +80 °C
Fire Behavior Flame resistant according to IEC 60332-1-2
Burning Behavior Class (EN 13501-6) Eca
Chemical Resistance to Mineral Oil Resistant
Chemical Resistance to Grease Resistant
UV Radiation Resistance Resistant
Silicone-Free Yes
UL/ETL Listing, 300V Rating Yes; CM (cable without plug only)
EAC Approval Yes
General Product Approval EMV
China RoHS Manufacturer Declaration
Country of Origin DE
Net Weight 0.505 kg
EAN 4019169669207

Certifications & Standards

  • EAC

Technical Details

Short Description
SIMATIC RFID RS422 cable, M12 8-pin to M12 8-pin, 10m, EAC approved.
Rated Voltage (VAC)
300 V
Catalog No
6GT2891-4FN10
Standards
EAC approval
Delivery Date (Days)
10-15 days
Model Number
6GT2891-4FN10
Tariff Code
85444290
