- Part number
- 6XV1801-6DH10
- Model no
- Power Connecting Cable M12-180/M12-180
Siemens 6XV1801-6DH10 SIMATIC RF200 Power Connecting Cable M12-180 1m RFID Cable
Siemens SIMATIC RF200 6XV1801-6DH10 M12-180 power connecting cable, 1m, L-coded, 15A, IP65/67, for RF185C/186C/188C.
Description
About the Power Connecting Cable M12-180/M12-180
About the Power Connecting Cable M12-180/M12-180

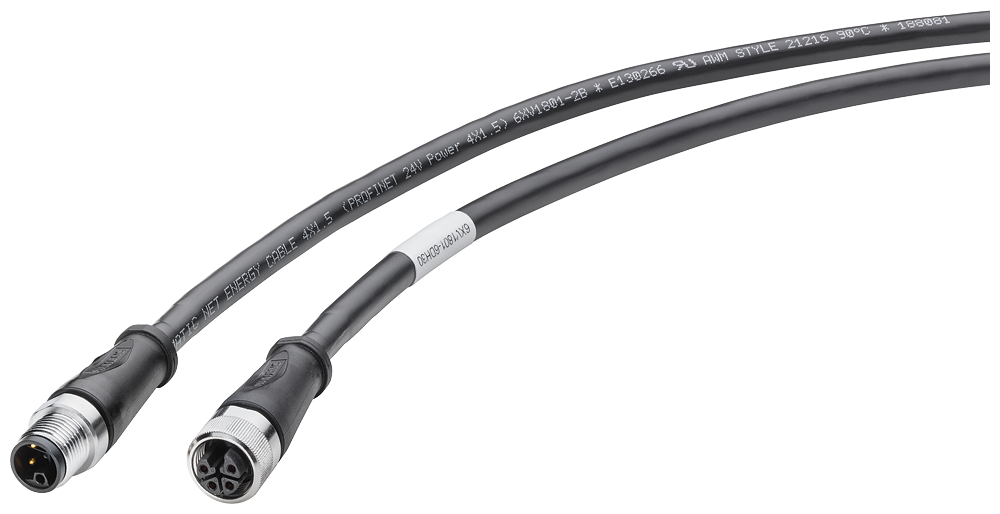

The Siemens SIMATIC RF200 6XV1801-6DH10 is a 1 m pre-assembled M12-180/M12-180 power connecting cable, L-coded and 4-pole, for wiring the 24 V supply to RF185C, RF186C, and RF188C RFID readers rated IP65/67. It carries 15 A continuous current at 40 degrees C over a 1.5 mm² cross-section and operates from -20 to +90 degrees C.
Certifications & Standards
- UL/ETL 300V
- EAC
- RoHS
Selection Notes
This 1 m length pre-assembles the two M12-180 L-coded connectors so no field wiring is needed when running 24 V power to a single RF185C, RF186C, or RF188C reader mounted close to its power source. Its 15 A continuous rating at 40C and 600 V RMS operating voltage give headroom for shared power distribution across the M12-180 wiring these readers use. For readers mounted farther from the power tap, choose a longer length in the same LIYY 4X1X1.5 BK cable series instead of extending this one.
Specification
Full specification
General 6
| product type designation | Power Connecting Cable M12-180/M12-180 |
|---|---|
| product description | Flexible plug-in cable (4-wire), preferred length, pre-assembled with one 4-pin M12 male and one female connector (L-coded, 180° cable outlet) Power connecting cable M12-180/M12-180 for the power supply of the terminal devices / network components: pre-assembled cable with M12 plug and M12 socket, L-coded, 4-pole, 1.0 m. |
| product brand name | SIMATIC NET |
| suitability for use | Cable for connecting the 24 V power supply to RF185C, RF186C, RF188C to IP65/67 degree of protection |
| cable designation | LIYY 4X1X1.5 BK |
| wire length | 1 m |
Electrical data 3
| operating voltage / RMS value | 600 V |
|---|---|
| conductor cross section / of the power line | 1.5 mm2 |
| continuous current / of the power lines | 15 A; at 40°C according to DIN VDE 0891-1 (17 A at 20°C according to DIN VDE 0891-1) |
Mechanical data 24
| number of electrical cores | 4 |
|---|---|
| type of electrical connection | M12-180 |
| outer diameter: of inner conductor | 1.6 mm |
| outer diameter: of the wire insulation | 2.3 mm |
| outer diameter: of cable sheath | 7.7 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.3 mm |
| conductor class | 5 |
| material: of the conductor | CU, blank |
| material: of the wire insulation | PVC |
| material: of cable sheath | PVC |
| product component / PE connection | No |
| marking / of cores | Color |
| color: of the power line insulation | brown / white / blue / black |
| color: of cable sheath | Black |
| bending radius: with single bend / minimum permissible | 31 mm |
| bending radius: with multiple bends / minimum permissible | 62 mm |
| bending radius: with continuous bending | 62 mm |
| number of bending cycles | 2000000; for use in cable carriers, for 2 million bending cycles with a bending radius of 100 mm, speed of 4 m/s, and acceleration of 4 m/s2 |
| tensile load / maximum | 100 N |
| weight per length plug | 97 kg/km |
| type of plug interlock | screwed |
| design of plug-in connection | M12-180 |
| connector coding | M12 |
| connector coding / of the M12 circular connector | L-coded |
Show all 66 specifications ↓ Show less ↑33 more values in Identification, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6XV1801-6DH10 |
|---|---|
| Type designation | Power Connecting Cable M12-180/M12-180 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169857130 |
| ETIM class | EC003249 |
| eCl@ss | 27060307 |
Ambient conditions 11
| ambient temperature: during operation | -20 ... +90 °C |
|---|---|
| ambient temperature: during storage | -30 ... +90 °C |
| ambient temperature: during transport | -30 ... +90 °C |
| ambient temperature: during installation | -20 ... +90 °C |
| ambient condition / for operation | temperature range for permanent installation -30 °C to 90 °C |
| fire behavior | Flame-resistant acc. to IEC 60332-1-2 |
| chemical resistance: to mineral oil | Oil resistant according to EN 50290-2-22 (VDE 0819), compound type TM55 (7x24h/90 °C) |
| chemical resistance: to grease | Conditional resistance |
| chemical resistance: to water | Conditional resistance |
| radiological resistance / to UV radiation | resistant |
| protection class IP | IP65 / 67 |
Product features, product functions, product components / general 2
| product feature: halogen-free | No |
|---|---|
| product feature: silicon-free | Yes |
Standards, specifications, approvals 3
| UL/ETL listing / 300 V Rating | Yes |
|---|---|
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: RoHS conformity | Yes |
Logistics 7
| Net weight | 0.097 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | DE |
| Shipping weight | 0.597 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6XV1801-6DH10
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL/ETL listing / 300 V Rating
- EAC approval
- RoHS conformity
Quick answers
Questions about the Power Connecting Cable M12-180/M12-180
What is the rated current of Power Connecting Cable M12-180/M12-180?
The rated current of Power Connecting Cable M12-180/M12-180 is 15 A.
Which supply voltage is Power Connecting Cable M12-180/M12-180 rated for?
The rated operational voltage of Power Connecting Cable M12-180/M12-180 is 600 V AC.
What is the HS code of Power Connecting Cable M12-180/M12-180 for customs?
The tariff (HS) code on file for Power Connecting Cable M12-180/M12-180 is 85444290.
What is the EAN of Power Connecting Cable M12-180/M12-180?
The EAN (GTIN) of Power Connecting Cable M12-180/M12-180 is 4019169857130.
Where does Power Connecting Cable M12-180/M12-180 ship from, and how fast?
Power Connecting Cable M12-180/M12-180 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
