- Part number
- 6GT2898-2AA00
- Model no
- Distance piece for RF620T
Siemens 6GT2898-2AA00 SIMATIC RF600 Distance Piece for RF620T 155x38x12mm RFID Component
Siemens SIMATIC RF600 mounting spacer for RF620T transponder, 155x38x12mm, PP, anthracite; M5 or cable-clamp fixing.
Description
About the Distance piece for RF620T
About the Distance piece for RF620T

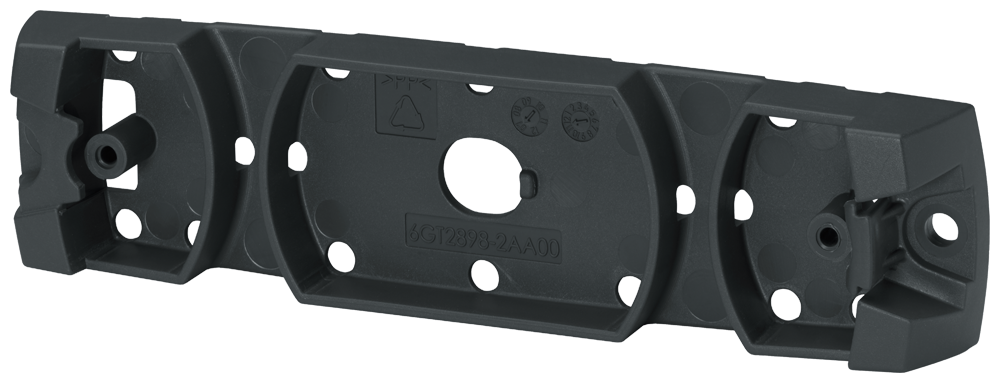

The Siemens 6GT2898-2AA00 is a SIMATIC RF600 mounting spacer for the RF620T transponder, measuring 155 x 38 x 12 mm in anthracite polypropylene. It holds the transponder 12 mm off a metal surface using two M5 screws or two cable clamps, and the transponder then snaps into place and can be secured with screws.
Selection Notes
The 12 mm standoff and two-point M5-or-cable-clamp fixing let this spacer be installed on a flat panel or clamped to a rail without redrilling for a different mounting pattern. Because the housing is polypropylene rather than metal, it does not add a ground path around the transponder, which matters when RF620T is mounted close to a metal structure.
Specification
Full specification
General 5
| product type designation | Distance piece for RF620T |
|---|---|
| product description | Support for mounting transponders with a size of 127 mm x 38 mm and 12 mm distance to metal SIMATIC RF600 spacer for RF620T 155x 38x 12 mm (LxWxH), -25 to +70 °C Minimum order quantity: 20. |
| product brand name | SIMATIC RF |
| suitability for use | The support is mounted using two M5 screws or 2 cable clamps. The transponder is snapped into place and can also be secured with screws |
| suitability for operation | for transponders RF620T |
Mechanical data 2
| material | PP |
|---|---|
| color | anthracite |
Ambient conditions 3
| ambient temperature: during operation | -20 ... +55 °C |
|---|---|
| ambient temperature: during storage | -25 ... +70 °C |
| ambient temperature: during transport | -25 ... +70 °C |
Show all 30 specifications ↓ Show less ↑20 more values in Identification, Design, dimensions and weights, Logistics.
Identification 10
| Part number | 6GT2898-2AA00 |
|---|---|
| Type designation | Distance piece for RF620T |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209742703 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Design, dimensions and weights 3
| width | 38 mm |
|---|---|
| height | 12 mm |
| depth | 155 mm |
Logistics 7
| Net weight | 0.015 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | DE |
| Shipping weight | 0.515 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2898-2AA00
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Distance piece for RF620T
What is the HS code of Distance piece for RF620T for customs?
The tariff (HS) code on file for Distance piece for RF620T is 39269097.
What is the EAN of Distance piece for RF620T?
The EAN (GTIN) of Distance piece for RF620T is 4011209742703.
Where does Distance piece for RF620T ship from, and how fast?
Distance piece for RF620T ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
