- Part number
- 6GT2898-0AC00
- Model no
- Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01.
SIMATIC RF600Siemens 6GT2898-0AC00 SIMATIC RF600 Wide-Range Power Supply 24V DC 3A IP67 Power Supply
Siemens SIMATIC RF600 wide-range power supply, 100-240V AC in, 24V DC/3A out, IP67, EU power cable, feeds two RFID readers.
Description
About the Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01.
About the Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01.

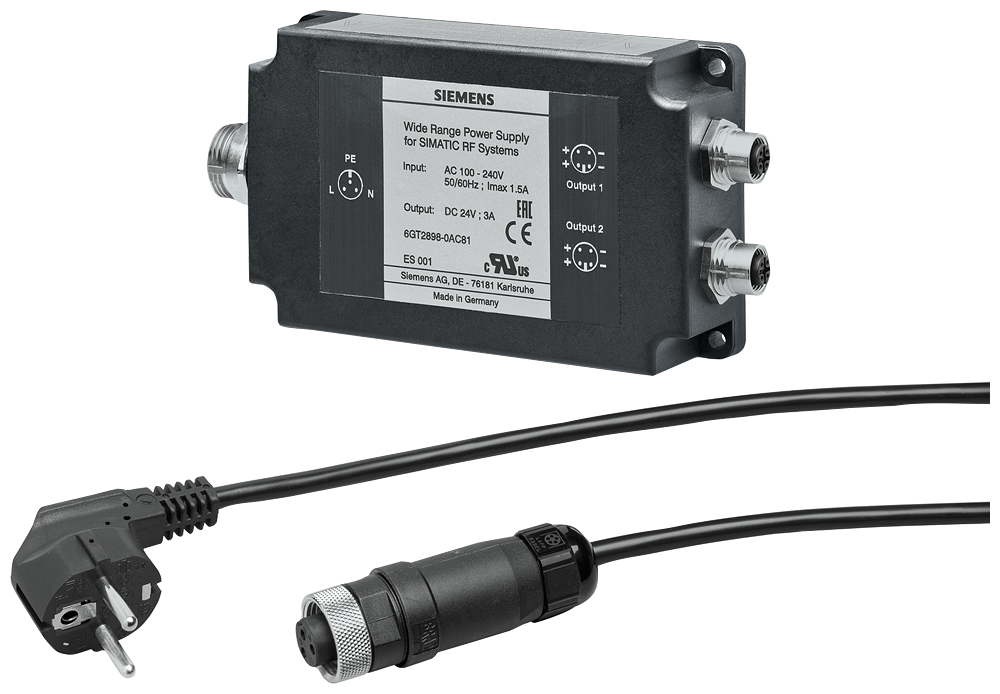

The Siemens 6GT2898-0AC00 is a SIMATIC RF600 wide-range power supply unit that converts a 100 to 240 V AC input into a 24 V DC, 3 A output for directly powering two RFID readers at the process. Housed to IP67 with an EU Schuko power cable and two M12 4-pin output connectors, it withstands wash-down and outdoor mounting near the antenna.
Selection Notes
The IP67 housing and 100 to 240 V AC universal input let this unit sit directly at the reader rather than in a cabinet, cutting the DC run length to the antenna. Two M12 output ports mean one unit feeds two readers instead of one power supply per reader. The 3.9 A continuous short-circuit current rating protects the output without an external fuse, and the Class II protective insulation removes the need for a separate protective-earth connection at the load.
Specification
Full specification
General 4
| product type designation | Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01. |
|---|---|
| product brand name | SIMATIC RF |
| type of current supply | Input: 100 to 230 V AC, output: 24 V DC / 3 A |
| suitability for use | Two readers can be connected directly. Robust and cast industrial power supply unit with high degree of protection for use directly at the process. |
Electrical data / input 5
| voltage curve / at input | AC single phase |
|---|---|
| supply voltage / 1 / rated value | 230 V |
| type of voltage / 1 / of the supply voltage | AC |
| line frequency: 50 Hz | Yes |
| line frequency: 60 Hz | Yes |
Electrical data / output 5
| voltage curve / at output | DC 24 V fixed voltage |
|---|---|
| output voltage: 1 / at DC / rated value | 24 V |
| output current: rated value | 3 A |
| output current: rated range | 0 ... 3.9 A |
| efficiency in percent | 90 % |
Show all 55 specifications ↓ Show less ↑41 more values in Identification, Electrical data / closed-loop control, Electrical data / protection and monitoring, Electrical data / safety, Interfaces, Signal inputs/outputs, Design, dimensions and weights, Ambient conditions, Standards, specifications, approvals, Accessories, Logistics.
Identification 10
| Part number | 6GT2898-0AC00 |
|---|---|
| Type designation | Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106025830 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Electrical data / closed-loop control 1
| relative overall tolerance / of the voltage | 2% |
|---|
Electrical data / protection and monitoring 4
| design of the overvoltage protection / at output | Uout nom +20 % typ. |
|---|---|
| property of the output / short-circuit proof | Yes |
| design of short-circuit protection | Permanent |
| enduring short circuit current / RMS value / maximum | 3.9 A |
Electrical data / safety 3
| electrical separation / between input and output | Yes |
|---|---|
| galvanic isolation | SELV / PELV according to EN 60950 |
| operating resource protection class | Class II (protective insulation) |
Interfaces 3
| number of electrical connections: for power supply | 2 |
|---|---|
| type of electrical connection: at input | Schuko socket CEE 7/7 with 2 m connecting cable |
| type of electrical connection: at output | 2 x M12 4 pin, A-coded, female |
Signal inputs/outputs 1
| product component / signaling contact | No |
|---|
Design, dimensions and weights 4
| width | 85 mm |
|---|---|
| height | 35 mm |
| depth | 175 mm |
| fastening method | 4 screws M5 |
Ambient conditions 5
| ambient temperature: during operation | -25 ... +75 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: note | free convection |
| protection class IP | IP67 |
Standards, specifications, approvals 2
| standard: for safety / from CSA and UL | EN 60950 / UL 60950 / CAN/CSA 22.2 950, 3 Edition |
|---|---|
| standard: for emitted interference | EN 61000-6-3, EN 55011 (Class B) |
Accessories 1
| accessories / included | Power supply un...T2898-0AC001 |
|---|
Logistics 7
| Net weight | 0.94 kg |
|---|---|
| Package dimensions | 75 × 130 × 100 mm |
| Country of origin | DE |
| Shipping weight | 1.44 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2898-0AC00
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01.
What is the rated current of Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01.?
The rated current of Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01. is 3 A.
Which supply voltage is Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01. rated for?
The rated operational voltage of Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01. is 100–240 V AC.
What is the HS code of Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01. for customs?
The tariff (HS) code on file for Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01. is 85044083.
What is the EAN of Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01.?
The EAN (GTIN) of Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01. is 4034106025830.
Where does Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01. ship from, and how fast?
Wide-range power supply unit with EU connecting cable SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100- 240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
