- Part number
- 6GT2891-4UH20
- Model no
- Connecting cable RS232, M12 / PicoBlade
Siemens 6GT2891-4UH20 SIMATIC RF1000 Connecting Cable RS232 M12/PicoBlade 2m RFID Cable
Siemens SIMATIC RF1000 connecting cable, RS232, M12/PicoBlade, 2 m; links RF1040R/RF1070R readers to RF166C, RF170C or RF18xC/CI modules.
Description
About the Connecting cable RS232, M12 / PicoBlade
About the Connecting cable RS232, M12 / PicoBlade

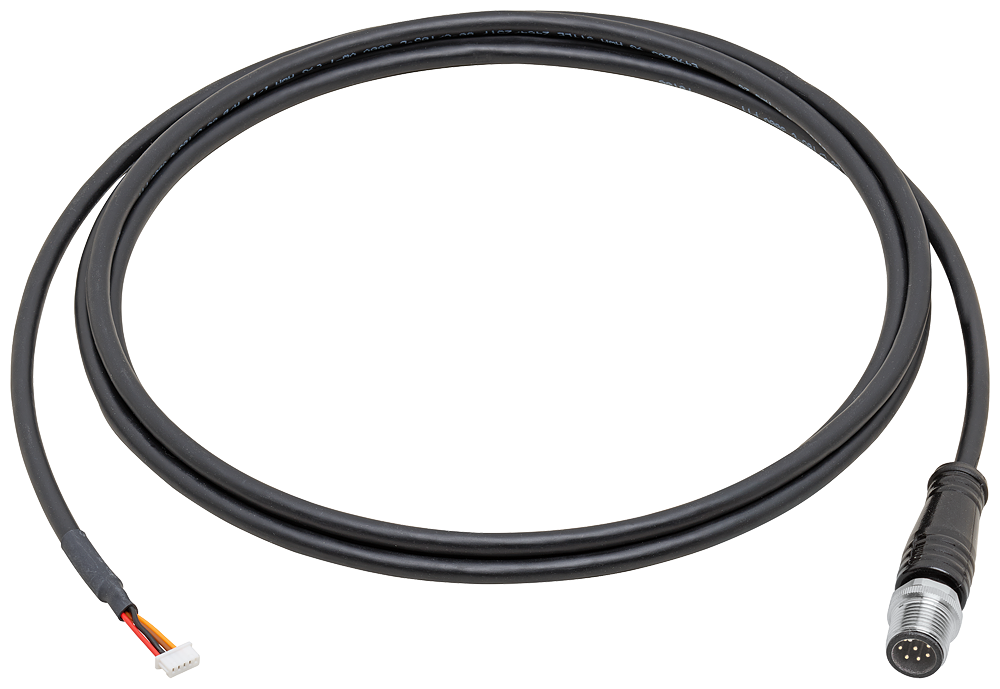

The Siemens 6GT2891-4UH20 is a pre-assembled SIMATIC RF1000 connecting cable with RS232 signaling, M12 (8-pole) on one end and a 5-pole PicoBlade connector on the other, in a 2 m length. It links an RF1040R or RF1070R reader to an RF166C, RF170C or RF18xC/CI communication module. The 4-core shielded design carries a 300 V maximum operating voltage and a 69 mm minimum bend radius.
Selection Notes
At 2 m, this is the fixed connecting cable between the reader head and its communication module in a cabinet-mounted RF1000 setup, not an extension run. The M12 (8-pole) end pairs with the reader; the 5-pole PicoBlade end plugs directly into RF166C, RF170C or RF18xC/CI, so check the module's connector type before ordering, since other RF1000 accessory cables in the range use different connector combinations. The 69 mm minimum bend radius sets the smallest loop the cable can take inside a cabinet.
Specification
Full specification
General 6
| product type designation | Connecting cable RS232, M12 / PicoBlade |
|---|---|
| product description | Communication cable (4-core) SIMATIC RF1000 connecting cable, pre-assembled RS232, between RF1040R or RF1070R and an RF166C, RF170C or RF18xC/CI; black, length 2 m,. |
| product brand name | SIMATIC RF |
| suitability for use | plug-in cable for connecting an RF1000 reader with RF166C, RF170C or RF18xC/CI |
| cable designation | LiYCY 4x AWG26 |
| wire length | 2 m |
Electrical data 4
| number of electrical connections | 2 |
|---|---|
| type of electrical connection | M12 (female, 8-pole, straight) / PicoBlade 51021 5-pole |
| loop resistance per length / maximum | 130 mΩ/m |
| operating voltage: maximum | 300 V |
Mechanical data 10
| number of electrical cores | 4 |
|---|---|
| design of the shield | Braided shield made of tin-plated copper wires |
| outer diameter: of cable sheath | 4.6 mm |
| material: of the wire insulation | PVC |
| material: of cable sheath | Special PVC, flame resistant according to UL-VW-1 |
| color: of the insulation of data wires | international color code |
| color: of cable sheath | Black |
| bending radius: with single bend / minimum permissible | 69 mm |
| bending radius: with multiple bends / minimum permissible | 69 mm |
| weight per length | 35 kg/km |
Show all 48 specifications ↓ Show less ↑28 more values in Identification, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GT2891-4UH20 |
|---|---|
| Type designation | Connecting cable RS232, M12 / PicoBlade |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106026035 |
| ETIM class | EC003249 |
| eCl@ss | 27060307 |
Ambient conditions 8
| ambient temperature: during operation | -15 ... +80 °C |
|---|---|
| ambient temperature: during storage | -30 ... +80 °C |
| ambient temperature: during transport | -30 ... +80 °C |
| ambient temperature: during installation | -15 ... +80 °C |
| fire behavior | flame resistant according to IEC 60332-1-2 |
| chemical resistance: to mineral oil | resistant |
| chemical resistance: to water | resistant |
| radiological resistance / to UV radiation | resistant |
Product features, product functions, product components / general 2
| product feature: halogen-free | No |
|---|---|
| product feature: silicon-free | Yes |
Standards, specifications, approvals 1
| UL/ETL listing / 300 V Rating | Yes; UL AWM 2464/2517 (only cable without plug) |
|---|
Logistics 7
| Net weight | 0.076 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | DE |
| Shipping weight | 0.576 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2891-4UH20
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Connecting cable RS232, M12 / PicoBlade
Which supply voltage is Connecting cable RS232, M12 / PicoBlade rated for?
The rated operational voltage of Connecting cable RS232, M12 / PicoBlade is 300 V AC.
What is the HS code of Connecting cable RS232, M12 / PicoBlade for customs?
The tariff (HS) code on file for Connecting cable RS232, M12 / PicoBlade is 85444290.
What is the EAN of Connecting cable RS232, M12 / PicoBlade?
The EAN (GTIN) of Connecting cable RS232, M12 / PicoBlade is 4034106026035.
Where does Connecting cable RS232, M12 / PicoBlade ship from, and how fast?
Connecting cable RS232, M12 / PicoBlade ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
