- Part number
- 6GT2891-2UH30
- Model no
- Connecting cable RS232, open end / PicoBlade

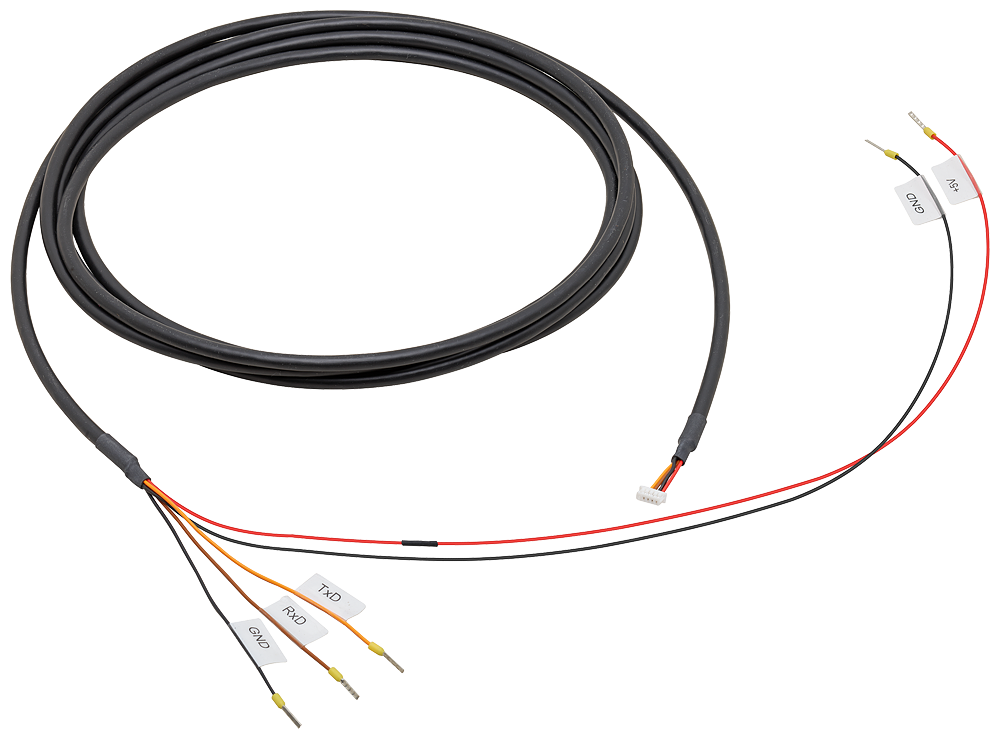

Siemens 6GT2891-2UH30 SIMATIC RF1000 RS232 Connecting Cable 3m RFID Cable
SIMATIC RF1000 RS232 cable, open end to PicoBlade 5-pole, 3m.
Description
About the Connecting cable RS232, open end / PicoBlade
About the Connecting cable RS232, open end / PicoBlade
The Siemens 6GT2891-2UH30 is a SIMATIC RF1000 pre-assembled RS232 connecting cable between the RF1040R or RF1070R reader and a controller such as an ET 200SP RS-232 module. It has open ends on the controller side and a 5-pole PicoBlade connector on the reader side, running 3 m in a black PVC jacket.
Specification
Full specification
General 6
| product type designation | Connecting cable RS232, open end / PicoBlade |
|---|---|
| product description | Communication cable (4-core) SIMATIC RF1000 connecting cable, pre-assembled RS232; between RF1040R or RF1070R and controllers; connection with open ends, black, length 3 m. |
| product brand name | SIMATIC RF |
| suitability for use | plug-in cable for connecting an RF1000 reader with an RS-232 module with screw connection (for example, ET 200SP) |
| cable designation | LiYCY 4x AWG26 |
| wire length | 3 m |
Electrical data 4
| number of electrical connections | 2 |
|---|---|
| type of electrical connection | Open end / PicoBlade 51021 5-pole |
| loop resistance per length / maximum | 130 mΩ/m |
| operating voltage: maximum | 300 V |
Mechanical data 10
| number of electrical cores | 4 |
|---|---|
| design of the shield | Braided shield made of tin-plated copper wires |
| outer diameter: of cable sheath | 4.6 mm |
| material: of the wire insulation | PVC |
| material: of cable sheath | Special PVC, flame resistant according to UL-VW-1 |
| color: of the insulation of data wires | international color code |
| color: of cable sheath | Black |
| bending radius: with single bend / minimum permissible | 69 mm |
| bending radius: with multiple bends / minimum permissible | 69 mm |
| weight per length | 35 kg/km |
Show all 48 specifications ↓ Show less ↑28 more values in Identification, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GT2891-2UH30 |
|---|---|
| Type designation | Connecting cable RS232, open end / PicoBlade |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106026042 |
| ETIM class | EC003249 |
| eCl@ss | 27060307 |
Ambient conditions 8
| ambient temperature: during operation | -15 ... +80 °C |
|---|---|
| ambient temperature: during storage | -30 ... +80 °C |
| ambient temperature: during transport | -30 ... +80 °C |
| ambient temperature: during installation | -15 ... +80 °C |
| fire behavior | flame resistant according to IEC 60332-1-2 |
| chemical resistance: to mineral oil | resistant |
| chemical resistance: to water | resistant |
| radiological resistance / to UV radiation | resistant |
Product features, product functions, product components / general 2
| product feature: halogen-free | No |
|---|---|
| product feature: silicon-free | Yes |
Standards, specifications, approvals 1
| UL/ETL listing / 300 V Rating | Yes; UL AWM 2464/2517 (only cable without plug) |
|---|
Logistics 7
| Net weight | 0.101 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | DE |
| Shipping weight | 0.601 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2891-2UH30
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Connecting cable RS232, open end / PicoBlade
Which supply voltage is Connecting cable RS232, open end / PicoBlade rated for?
The rated operational voltage of Connecting cable RS232, open end / PicoBlade is 300 V AC.
What is the HS code of Connecting cable RS232, open end / PicoBlade for customs?
The tariff (HS) code on file for Connecting cable RS232, open end / PicoBlade is 85444290.
What is the EAN of Connecting cable RS232, open end / PicoBlade?
The EAN (GTIN) of Connecting cable RS232, open end / PicoBlade is 4034106026042.
Where does Connecting cable RS232, open end / PicoBlade ship from, and how fast?
Connecting cable RS232, open end / PicoBlade ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
