- Part number
- 6GT2891-0PH50
- Model no
- Adaptor cable for power supply, M12-8 / M12-4

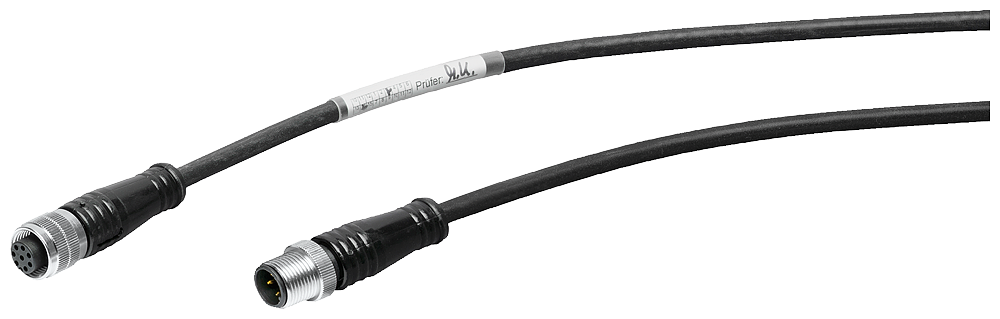

Siemens 6GT2891-0PH50 SIMATIC RF600 24V Power Connecting Cable M12 5m RFID Cable
SIMATIC RF600 24V power cable, M12 4-pin to M12 8-pin, PUR jacket, 5m.
Description
About the Adaptor cable for power supply, M12-8 / M12-4
About the Adaptor cable for power supply, M12-8 / M12-4
The Siemens 6GT2891-0PH50 is a SIMATIC RF600 connecting cable that supplies 24 V power from a 6GT2898-0AA or 6GT2898-0AC power supply unit to the RF610XR, RF650R and RF68xR readers. It terminates in a straight M12 4-pin male connector on the supply side and a straight M12 8-pin female connector on the reader side, running 5 m in a PUR jacket.
Specification
Full specification
General 6
| product type designation | Adaptor cable for power supply, M12-8 / M12-4 |
|---|---|
| product description | Highly flexible cable (6-wire) SIMATIC RF600 connecting cable for 24 V connection of the readers RF610XR, RF650R, RF68XR to the power supply units of type 6GT2898-0AA and 6GT2898- 0AC, PUR, length 5 m. |
| product brand name | SIMATIC RF |
| suitability for use | Plug-in cable for connecting a 24 V power supply to a reader RF61XR, RF650R, RF68XR, MV440 |
| cable designation | L-YC11Y 6x1x0.25 6x24AWG CM |
| wire length | 5 m |
Electrical data 4
| number of electrical connections | 2 |
|---|---|
| loop resistance per length / maximum | 160 mΩ/m |
| insulation resistance coefficient | 20 GΩ·m |
| operating voltage / maximum | 300 V |
Mechanical data 19
| design of the shield | Braided shield made of tin-plated copper wires |
|---|---|
| number of electrical cores | 6 |
| type of electrical connection | M12 (male, 4-pin, straight) / M12 (female, 8-pin, straight) |
| outer diameter: of cable sheath | 5.4 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.2 mm |
| design of stranding element | Six |
| conductor class | 5 |
| material: of the conductor | CU, blank |
| material: of the wire insulation | PVC |
| material: of cable sheath | PUR |
| marking / of cores | Color |
| color: of the insulation of data wires | DIN 47100 |
| color: of cable sheath | Black |
| bending radius: with single bend / minimum permissible | 21.6 mm |
| bending radius: with multiple bends / minimum permissible | 43 mm |
| bending radius: with continuous bending | 75 mm |
| number of bending cycles | 3000000 |
| tensile load / maximum | 200 N |
| weight per length | 45 kg/km |
Show all 58 specifications ↓ Show less ↑29 more values in Identification, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, General Product Approval EMV, Logistics.
Identification 10
| Part number | 6GT2891-0PH50 |
|---|---|
| Type designation | Adaptor cable for power supply, M12-8 / M12-4 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106024352 |
| ETIM class | EC002587 |
| eCl@ss | 27060327 |
Ambient conditions 8
| ambient temperature: during operation | -30 ... +80 °C |
|---|---|
| ambient temperature: during storage | -30 ... +80 °C |
| ambient temperature: during transport | -30 ... +80 °C |
| ambient temperature: during installation | -30 ... +80 °C |
| fire behavior | Flame-resistant according to IEC 60332-1-4 |
| chemical resistance: to mineral oil | resistant |
| chemical resistance: to grease | resistant |
| radiological resistance / to UV radiation | resistant |
Product features, product functions, product components / general 2
| product feature: halogen-free | No |
|---|---|
| product feature: silicon-free | Yes |
Standards, specifications, approvals 1
| UL/ETL listing / 300 V Rating | Yes; CM |
|---|
General Product Approval EMV 1
| China RoHS Manufacturer Declara- | tion |
|---|
Logistics 7
| Net weight | 0.045 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | DE |
| Shipping weight | 0.545 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2891-0PH50
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Adaptor cable for power supply, M12-8 / M12-4
Which supply voltage is Adaptor cable for power supply, M12-8 / M12-4 rated for?
The rated operational voltage of Adaptor cable for power supply, M12-8 / M12-4 is 300 V AC.
What is the HS code of Adaptor cable for power supply, M12-8 / M12-4 for customs?
The tariff (HS) code on file for Adaptor cable for power supply, M12-8 / M12-4 is 85444290.
What is the EAN of Adaptor cable for power supply, M12-8 / M12-4?
The EAN (GTIN) of Adaptor cable for power supply, M12-8 / M12-4 is 4034106024352.
Where does Adaptor cable for power supply, M12-8 / M12-4 ship from, and how fast?
Adaptor cable for power supply, M12-8 / M12-4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
