- Part number
- 6GT2891-0CH50
- Model no
- DI/DO cable, M12 12-pole / open strands

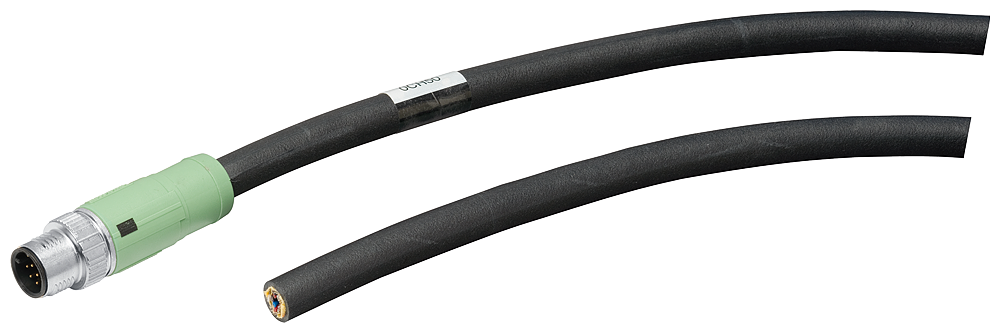

Siemens 6GT2891-0CH50 SIMATIC RF600 DI/DO Connecting Cable M12 12-Pin 5m IP67 RFID Cable
SIMATIC RF600 DI/DO cable, M12 12-pin to open end, shielded PUR, 5m, IP67.
Description
About the DI/DO cable, M12 12-pole / open strands
About the DI/DO cable, M12 12-pole / open strands
The Siemens 6GT2891-0CH50 is a SIMATIC RF600 DI/DO connecting cable that wires sensors and actuators into the RF650R, RF670R and RF68xR readers through a straight M12 12-pin male connector, with the other end left open for termination at the customer's end. The shielded 12-core cable runs 5 m and carries an IP67 rating for washdown and cabinet installations.
Specification
Full specification
General 6
| product type designation | DI/DO cable, M12 12-pole / open strands |
|---|---|
| product description | Highly flexible sensor cable (12-core) SIMATIC RF600 DI/DO Cable connector for RF650R reader, RF670R, RF68XR, M12, 12x 0.14 mm2, shielded, material PUR, IP67; Length 5 m, open on one side. |
| product brand name | SIMATIC RF |
| suitability for use | Cable for wiring sensors/actuators to the RF650R, RF670R, RF68xR at the customer's end |
| cable designation | LSPYwC11Y |
| wire length | 5 m |
Electrical data 5
| number of electrical connections | 2 |
|---|---|
| type of electrical connection | M12 (male, 12 pin, straight) / open |
| loop resistance per length / maximum | 284 mΩ/m |
| insulation resistance coefficient | 10 GΩ·m |
| operating voltage: maximum | 42 V |
Mechanical data 13
| number of electrical cores | 12 |
|---|---|
| design of the shield | Braided shield made of tin-plated copper wires |
| outer diameter: of cable sheath | 8.5 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.2 mm |
| material: of the wire insulation | PVC |
| material: of cable sheath | PUR |
| color: of the insulation of data wires | DIN 47100 |
| color: of cable sheath | Black |
| bending radius: with single bend / minimum permissible | 42.5 mm |
| bending radius: with multiple bends / minimum permissible | 85 mm |
| bending radius: with continuous bending | 85 mm |
| number of bending cycles | 2000000 |
| weight per length | 87 kg/km |
Show all 52 specifications ↓ Show less ↑28 more values in Identification, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, General Product Approval EMV, Logistics.
Identification 10
| Part number | 6GT2891-0CH50 |
|---|---|
| Type designation | DI/DO cable, M12 12-pole / open strands |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169668804 |
| ETIM class | EC003249 |
| eCl@ss | 27060307 |
Ambient conditions 8
| ambient temperature: during operation | -5 ... +80 °C |
|---|---|
| ambient temperature: during storage | -30 ... +80 °C |
| ambient temperature: during transport | -30 ... +80 °C |
| ambient temperature: during installation | -5 ... +80 °C |
| fire behavior | flame resistant according to IEC 60332-1-2, VW-1 |
| chemical resistance: to mineral oil | resistant according to DIN EN 60811-2-1 |
| chemical resistance: to grease | resistant according to DIN EN 60811-2-1 |
| radiological resistance / to UV radiation | resistant |
Product features, product functions, product components / general 1
| product feature: halogen-free | No |
|---|
Standards, specifications, approvals 1
| UL/ETL listing / 300 V Rating | No |
|---|
General Product Approval EMV 1
| China RoHS Manufacturer Declara- | tion |
|---|
Logistics 7
| Net weight | 0.48 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | DE |
| Shipping weight | 0.98 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2891-0CH50
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the DI/DO cable, M12 12-pole / open strands
Which supply voltage is DI/DO cable, M12 12-pole / open strands rated for?
The rated operational voltage of DI/DO cable, M12 12-pole / open strands is 42 V AC.
What is the HS code of DI/DO cable, M12 12-pole / open strands for customs?
The tariff (HS) code on file for DI/DO cable, M12 12-pole / open strands is 85444290.
What is the EAN of DI/DO cable, M12 12-pole / open strands?
The EAN (GTIN) of DI/DO cable, M12 12-pole / open strands is 4019169668804.
Where does DI/DO cable, M12 12-pole / open strands ship from, and how fast?
DI/DO cable, M12 12-pole / open strands ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
