- Part number
- 6GT2890-2AB10
- Model no
- Bracket for readers and antennas
Siemens 6GT2890-2AB10 SIMATIC RF600 3-Way Antenna Holder Kit Stainless Steel RFID Component
Siemens stainless steel 3-way mounting kit for RF600 readers/antennas, VESA 100.
Description
About the Bracket for readers and antennas
About the Bracket for readers and antennas

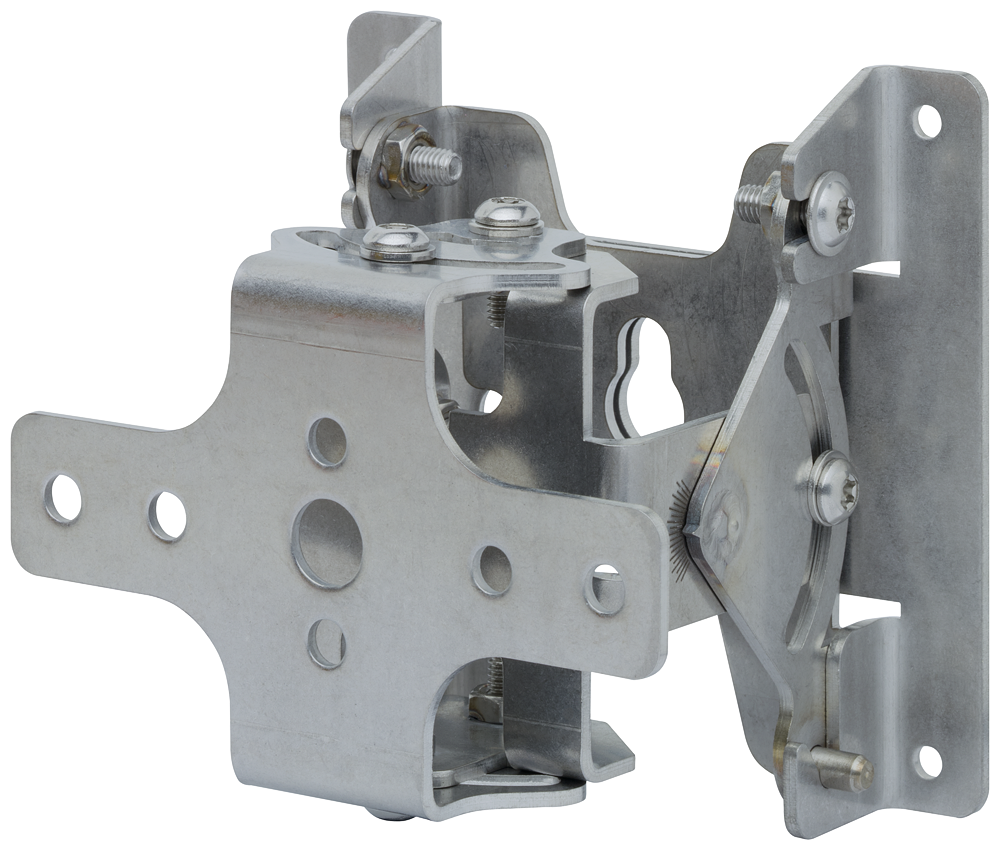

The Siemens 6GT2890-2AB10 is a solid stainless steel bracket for the SIMATIC RF600 family, sold as a 3-way mounting kit for RF600 readers and antennas except the RF62xA and RF615A. It gives +/-45° vertical and horizontal angle adjustment on a VESA 100 mounting pattern, with a screw lock that holds the alignment once set.
Specification
Full specification
General 5
| product type designation | Bracket for readers and antennas |
|---|---|
| product description | Solid stainless steel bracket with +/- 45° vertical/horizontal angle adjustment and screw lock SIMATIC RF600 antenna holder 3-way kit stainless steel; for RF600 readers and antennas except RF62xA and RF615A packing unit 1 unit. |
| product brand name | SIMATIC RF |
| suitability for use | For 3-way mounting and adjustment of RF600 readers and antennas |
| suitability for operation | mounting for RF600 readers and antennas with VESA 100 mounting system with screw locking against misalignment |
Mechanical data 2
| material | Stainless steel |
|---|---|
| color | metallic |
Ambient conditions 3
| ambient temperature: during operation | -25 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +100 °C |
| ambient temperature: during transport | -40 ... +100 °C |
Show all 30 specifications ↓ Show less ↑20 more values in Identification, Design, dimensions and weights, Logistics.
Identification 10
| Part number | 6GT2890-2AB10 |
|---|---|
| Type designation | Bracket for readers and antennas |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106025809 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Design, dimensions and weights 3
| width | 115 mm |
|---|---|
| height | 95 mm |
| depth | 120 mm |
Logistics 7
| Net weight | 0.75 kg |
|---|---|
| Package dimensions | 120 × 115 × 95 mm |
| Country of origin | DE |
| Shipping weight | 1.25 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2890-2AB10
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Bracket for readers and antennas
What is the HS code of Bracket for readers and antennas for customs?
The tariff (HS) code on file for Bracket for readers and antennas is 73269098.
What is the EAN of Bracket for readers and antennas?
The EAN (GTIN) of Bracket for readers and antennas is 4034106025809.
Where does Bracket for readers and antennas ship from, and how fast?
Bracket for readers and antennas ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
