- Part number
- 6GT2831-6CB00
Siemens has announced the end of 6GT2831-6CB00
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

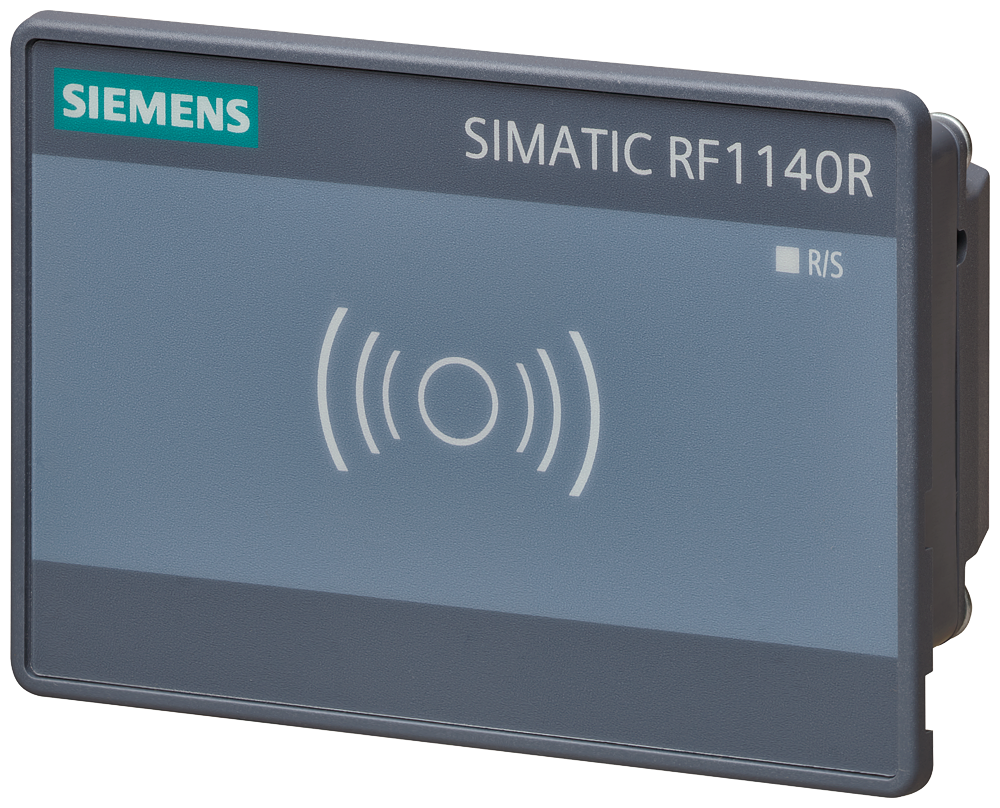

Siemens 6GT2831-6CB00 SIMATIC RF1000 RF1140R PoE/RJ45 Reader 24V 125 kHz/13.56 MHz RFID Reader
Siemens RF1140R PoE/RJ45 reader, LF HiTag/EM41xx + HF ISO 14443/15693, 24V DC.
Description
About the 6GT2831-6CB00
About the 6GT2831-6CB00
The Siemens 6GT2831-6CB00 is a SIMATIC RF1000 RF1140R access control reader that connects via RJ45 with Power over Ethernet or a 24 V DC supply. It reads LF transponders (HiTag 1/2/S, EM41xx/45xx) at 125 kHz and HF transponders (ISO 14443 A/B, ISO 15693) at 13.56 MHz over TCP/IP (XML) or Modbus TCP, with an IP65 front rating after cabinet installation.
Selection Notes
The RF1140R pairs LF and HF reading with a network-native RJ45/PoE connection, so it fits a distributed door controller that polls the reader over TCP/IP or Modbus TCP without a local host PC. Choose the RF1170R instead where only HF badges are in use; choose the USB/RS232 RF1040R where the reader sits next to a PC or serial controller rather than on the network.
Applications
PoE power over RJ45 combined with LF/HF dual-band reading suits access points that still carry legacy LF badges but are being migrated to a networked door-controller architecture.
Specification
Full specification
General 2
| product brand name | SIMATIC RF |
|---|---|
| suitability for operation | HiTag 1/2/S, EM4xxx, ISO 15693 and ISO 14443 A/B transponder, for connection in the system landscape |
Radio frequencies 5
| operating frequency | 0.125 ... 13.56 MHz |
|---|---|
| protocol / with radio transmission | HiTag 1/2/S, EM41xx/45xx, EKS key, ISO 15693, ISO 14443 A/B, Felica, NXP NTAG21x, HID iClass |
| transfer rate / with radio transmission / maximum | 424 kbit/s |
| product feature / multitag-capable | Yes |
| operating frequency / 1 | 2.4 GHz (only for BLE support) |
Interfaces 1
| standard for interfaces / for communication | TCP IP (XML) / ModbusTCP / RJ 45 |
|---|
Show all 47 specifications ↓ Show less ↑39 more values in Identification, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Accessories, Approvals / Certificates, Logistics.
Identification 9
| Part number | 6GT2831-6CB00 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047623093961 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Mechanical data 3
| material | PC-GF |
|---|---|
| color | titanium gray |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 2
| supply voltage / at DC: rated value | 24 V |
|---|---|
| supply voltage / at DC: ● | 20 ... 30 V |
Ambient conditions 7
| ambient temperature: during operation | -25 ... +55 °C |
|---|---|
| ambient temperature: during storage | -25 ... +55 °C |
| ambient temperature: during transport | -25 ... +55 °C |
| protection class IP | IP65; on front after cabinet installation, IP20 rear |
| shock resistance | EN 60721-3-7 Class 7 M2 |
| shock acceleration | 300 m/s2 |
| vibrational acceleration | 50 m/s2 |
Design, dimensions and weights 4
| width | 90 mm |
|---|---|
| height | 62 mm |
| depth | 45.5 mm |
| fastening method | 4 stud bolts M4 for cabinet installation |
Product features, product functions, product components / general 2
| display version | 3-color LED |
|---|---|
| product feature / silicon-free | Yes |
Standards, specifications, approvals 3
| certificate of suitability | Radio according to R&TTE guidelines EN300 330 and EN 301489, FCC, cULus |
|---|---|
| certificate of suitability: IECEx | No |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Accessories 1
| accessories | card holder, clean room cover, HID license card |
|---|
Approvals / Certificates 1
| General Product Approval | Type Examination Cer- tificate |
|---|
Logistics 7
| Net weight | 0.2 kg |
|---|---|
| Package dimensions | 78 × 124 × 29 mm |
| Country of origin | DE |
| Shipping weight | 0.7 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2831-6CB00
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6GT2831-6CB00
Which supply voltage is 6GT2831-6CB00 rated for?
The rated operational voltage of 6GT2831-6CB00 is 24 V AC.
What is the HS code of 6GT2831-6CB00 for customs?
The tariff (HS) code on file for 6GT2831-6CB00 is 84718000.
What is the EAN of 6GT2831-6CB00?
The EAN (GTIN) of 6GT2831-6CB00 is 4047623093961.
Where does 6GT2831-6CB00 ship from, and how fast?
6GT2831-6CB00 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
