- Part number
- 6GT2831-6CA60
- Model no
- Reader RF1040R USB/RS232 SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, including RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable. with BLE

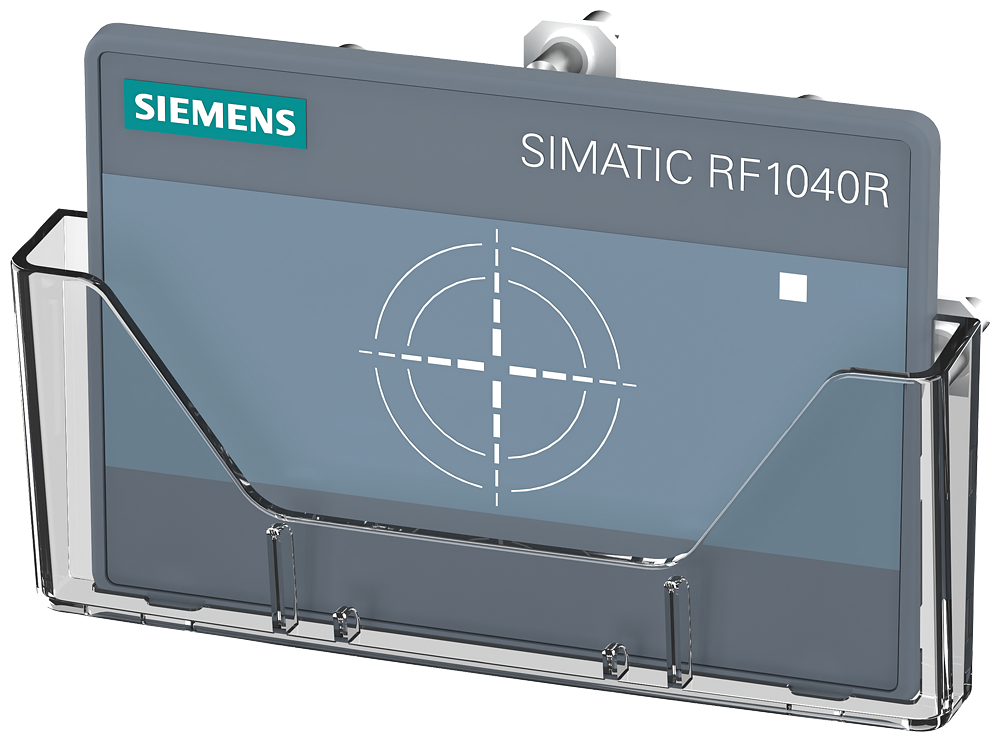

Siemens 6GT2831-6CA60 SIMATIC RF1000 RF1040R USB/RS232 Reader 125 kHz/13.56 MHz RFID Reader
Siemens RF1040R USB/RS232 reader, LF HiTag/EM41xx + HF ISO 14443/15693.
Description
About the Reader RF1040R USB/RS232 SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, including RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable. with BLE
About the Reader RF1040R USB/RS232 SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, including RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable. with BLE
The Siemens 6GT2831-6CA60 is a SIMATIC RF1000 RF1040R dual-frequency access control reader with USB 2.0 and RS232 interfaces. It reads LF transponders (HiTag 1/2/S, EM41xx/45xx) at 125 kHz and HF transponders (ISO 14443 A/B, ISO 15693) at 13.56 MHz, with optional BLE at 2.4 GHz, and carries an IP65 front rating after cabinet installation.
Selection Notes
The RF1040R is the only USB/RS232 reader in the family that covers LF tags (HiTag, EM41xx) alongside the HF ISO 14443/15693 set, so it fits a mixed-badge migration where old LF cards are still in circulation. Choose the RF1060R or RF1070R instead when the site is HF-only, since dropping LF support is not a trade-off there; choose the PoE RF1140R when the reader needs to run over the network instead of a local USB/RS232 host.
Applications
Dual-band LF/HF reading in a single 90 x 62 x 23.5 mm housing lets one reader replace two single-band units during a legacy-card phase-out at doors and turnstiles.
Specification
Full specification
General 3
| product type designation | Reader RF1040R USB/RS232 SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, including RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable. with BLE |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | HiTag 1/2/S, EM4xxx, ISO 15693 and ISO 14443 A/B transponder, for connecting to PC and control systems |
Radio frequencies 5
| operating frequency | 0.125 ... 13.56 MHz |
|---|---|
| protocol / with radio transmission | HiTag 1/2/S, EM41xx/45xx, EKS key, ISO 15693, ISO 14443 A/B, Felica, NXP NTAG21x, HID iClass |
| transfer rate / with radio transmission / maximum | 424 kbit/s |
| product feature / multitag-capable | Yes |
| operating frequency / 1 | 2.4 GHz (only for BLE support) |
Electrical data 1
| transfer rate / at the point-to-point connection / serial / maximum | 115.2 kbit/s |
|---|
Show all 51 specifications ↓ Show less ↑42 more values in Identification, Interfaces, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Accessories, Logistics.
Identification 10
| Part number | 6GT2831-6CA60 |
|---|---|
| Type designation | Reader RF1040R USB/RS232 SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, including RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable. with BLE |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106027209 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Interfaces 2
| standard for interfaces / for communication | USB 2.0, RS232 |
|---|---|
| type of electrical connection | 1.8 m connecting cable with USB 2.0 type A connector or RS232 connecting cable |
Mechanical data 3
| material | PC-GF |
|---|---|
| color | titanium gray |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 4
| supply voltage / at DC: rated value | 5 V |
|---|---|
| supply voltage / at DC: ● | 4.6 ... 5.25 V |
| consumed current / at DC: at 5 V / typical | 0.15 A |
| consumed current / at DC: at 5 V / maximum | 0.3 A |
Ambient conditions 7
| ambient temperature: during operation | -25 ... +55 °C |
|---|---|
| ambient temperature: during storage | -25 ... +55 °C |
| ambient temperature: during transport | -25 ... +55 °C |
| protection class IP | IP65; on front after cabinet installation, IP20 rear |
| shock resistance | EN 60721-3-7 Class 7 M2 |
| shock acceleration | 300 m/s2 |
| vibrational acceleration | 50 m/s2 |
Design, dimensions and weights 4
| width | 90 mm |
|---|---|
| height | 62 mm |
| depth | 23.5 mm |
| fastening method | 4 M4 screws for cabinet installation |
Product features, product functions, product components / general 2
| display version | 3-color LED |
|---|---|
| product feature / silicon-free | Yes |
Standards, specifications, approvals 2
| certificate of suitability | Radio according to R&TTE guidelines EN300 330 and EN 301489, FCC, cULus |
|---|---|
| certificate of suitability: IECEx | No |
Accessories 1
| accessories | card holder, USB cable 0.5 m, table/wall box, clean room cover, BLE license, HID license |
|---|
Logistics 7
| Net weight | 0.12 kg |
|---|---|
| Package dimensions | 170 × 80 × 50 mm |
| Country of origin | DE |
| Shipping weight | 0.62 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2831-6CA60
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Reader RF1040R USB/RS232 SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, including RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable. with BLE
Which supply voltage is Reader RF1040R USB/RS232 SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, including RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable. with BLE rated for?
The rated operational voltage of Reader RF1040R USB/RS232 SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, including RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable. with BLE is 5 V AC.
What is the HS code of Reader RF1040R USB/RS232 SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, including RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable. with BLE for customs?
The tariff (HS) code on file for Reader RF1040R USB/RS232 SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, including RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable. with BLE is 84718000.
What is the EAN of Reader RF1040R USB/RS232 SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, including RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable. with BLE?
The EAN (GTIN) of Reader RF1040R USB/RS232 SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, including RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable. with BLE is 4034106027209.
Where does Reader RF1040R USB/RS232 SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, including RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable. with BLE ship from, and how fast?
Reader RF1040R USB/RS232 SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, including RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable. with BLE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
