- Part number
- 6GT2831-6BA60
- Model no
- Reader RF1070R USB/RS232 SIMATIC RF1000 access control reader RF1070R; ISO 14443 A/B Mifare, ISO15693 Legic Prime; Legic Advant USB port; RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable BLE

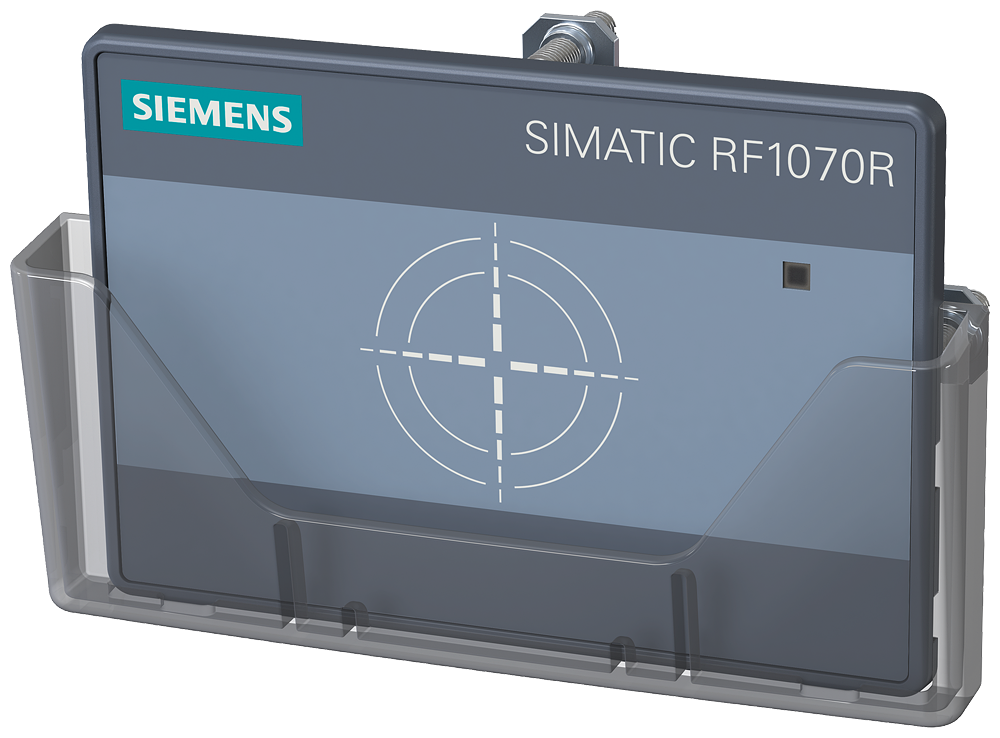

Siemens 6GT2831-6BA60 SIMATIC RF1000 RF1070R USB/RS232 Reader 13.56 MHz Legic/ISO RFID Reader
Siemens RF1070R USB/RS232 reader, Legic Prime/Advant + ISO 14443/15693, 13.56 MHz.
Description
About the Reader RF1070R USB/RS232 SIMATIC RF1000 access control reader RF1070R; ISO 14443 A/B Mifare, ISO15693 Legic Prime; Legic Advant USB port; RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable BLE
About the Reader RF1070R USB/RS232 SIMATIC RF1000 access control reader RF1070R; ISO 14443 A/B Mifare, ISO15693 Legic Prime; Legic Advant USB port; RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable BLE
The Siemens 6GT2831-6BA60 is a SIMATIC RF1000 RF1070R access control reader with USB 2.0 and RS232 interfaces, reading Legic Prime, Legic Advant, ISO 14443 A/B and ISO 15693 transponders at 13.56 MHz plus optional BLE at 2.4 GHz. It includes an integrated antenna and a 1.8 m USB connecting cable, rated IP65 on the front after cabinet installation.
Selection Notes
The RF1070R adds Legic Prime and Legic Advant on top of the ISO 14443 A/B / ISO 15693 support shared with the RF1060R, plus an RS232 fallback next to USB and optional BLE at 2.4 GHz. Choose it over the RF1060R when the site already issues Legic badges or needs a serial link to older access-control hardware; choose the PoE RF1170R instead when the reader must run without a local USB/RS232 host.
Applications
The dual USB/RS232 interface lets the RF1070R serve both new PC-based access points and legacy serial controllers in the same reader body, at 90 x 62 x 23.5 mm and 0.12 kg.
Specification
Full specification
General 3
| product type designation | Reader RF1070R USB/RS232 SIMATIC RF1000 access control reader RF1070R; ISO 14443 A/B Mifare, ISO15693 Legic Prime; Legic Advant USB port; RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable BLE |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | Legic, ISO 15693 and ISO 14443 A/B transponder, for connecting to PC and control systems |
Radio frequencies 5
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | Legic Prime, Legic Advant, ISO 15693, ISO 14443 A/B, chip set: SM4200M, Felica, NXP NTAG21x, HID iClass |
| transfer rate / with radio transmission / maximum | 106 kbit/s |
| product feature / multitag-capable | Yes |
| operating frequency / 1 | 2.4 GHz (only for BLE support) |
Electrical data 1
| transfer rate / at the point-to-point connection / serial / maximum | 115.2 kbit/s |
|---|
Show all 52 specifications ↓ Show less ↑43 more values in Identification, Interfaces, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Accessories, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GT2831-6BA60 |
|---|---|
| Type designation | Reader RF1070R USB/RS232 SIMATIC RF1000 access control reader RF1070R; ISO 14443 A/B Mifare, ISO15693 Legic Prime; Legic Advant USB port; RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable BLE |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106027186 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Interfaces 2
| standard for interfaces / for communication | USB 2.0, RS232 |
|---|---|
| type of electrical connection | 1.8 m connecting cable with USB 2.0 type A connector or RS232 connecting cable |
Mechanical data 3
| material | PC-GF |
|---|---|
| color | titanium gray |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 4
| supply voltage / at DC: rated value | 5 V |
|---|---|
| supply voltage / at DC: ● | 4.6 ... 5.25 V |
| consumed current / at DC: at 5 V / typical | 0.15 A |
| consumed current / at DC: at 5 V / maximum | 0.3 A |
Ambient conditions 7
| ambient temperature: during operation | -25 ... +55 °C |
|---|---|
| ambient temperature: during storage | -25 ... +55 °C |
| ambient temperature: during transport | -25 ... +55 °C |
| protection class IP | IP65; on front after professional gluing of the included front label and cabinet installation, IP20 rear |
| shock resistance | EN 60721-3-7 Class 7 M2 |
| shock acceleration | 300 m/s2 |
| vibrational acceleration | 50 m/s2 |
Design, dimensions and weights 4
| width | 90 mm |
|---|---|
| height | 62 mm |
| depth | 23.5 mm |
| fastening method | 4 M4 screws for cabinet installation |
Product features, product functions, product components / general 2
| display version | 3-color LED |
|---|---|
| product feature / silicon-free | Yes |
Standards, specifications, approvals 2
| certificate of suitability | Radio according to R&TTE guidelines EN300 330 and EN 301489, FCC, cULus |
|---|---|
| certificate of suitability: IECEx | No |
Accessories 1
| accessories | card holder, USB cable 0.5 m, table/wall box, clean room cover, BLE license, HID license |
|---|
Approvals / Certificates 1
| General Product Approval | Manufacturer Declara- tion |
|---|
Logistics 7
| Net weight | 0.12 kg |
|---|---|
| Package dimensions | 170 × 80 × 50 mm |
| Country of origin | DE |
| Shipping weight | 0.62 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2831-6BA60
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Reader RF1070R USB/RS232 SIMATIC RF1000 access control reader RF1070R; ISO 14443 A/B Mifare, ISO15693 Legic Prime; Legic Advant USB port; RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable BLE
Which supply voltage is Reader RF1070R USB/RS232 SIMATIC RF1000 access control reader RF1070R; ISO 14443 A/B Mifare, ISO15693 Legic Prime; Legic Advant USB port; RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable BLE rated for?
The rated operational voltage of Reader RF1070R USB/RS232 SIMATIC RF1000 access control reader RF1070R; ISO 14443 A/B Mifare, ISO15693 Legic Prime; Legic Advant USB port; RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable BLE is 5 V AC.
What is the HS code of Reader RF1070R USB/RS232 SIMATIC RF1000 access control reader RF1070R; ISO 14443 A/B Mifare, ISO15693 Legic Prime; Legic Advant USB port; RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable BLE for customs?
The tariff (HS) code on file for Reader RF1070R USB/RS232 SIMATIC RF1000 access control reader RF1070R; ISO 14443 A/B Mifare, ISO15693 Legic Prime; Legic Advant USB port; RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable BLE is 84718000.
What is the EAN of Reader RF1070R USB/RS232 SIMATIC RF1000 access control reader RF1070R; ISO 14443 A/B Mifare, ISO15693 Legic Prime; Legic Advant USB port; RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable BLE?
The EAN (GTIN) of Reader RF1070R USB/RS232 SIMATIC RF1000 access control reader RF1070R; ISO 14443 A/B Mifare, ISO15693 Legic Prime; Legic Advant USB port; RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable BLE is 4034106027186.
Where does Reader RF1070R USB/RS232 SIMATIC RF1000 access control reader RF1070R; ISO 14443 A/B Mifare, ISO15693 Legic Prime; Legic Advant USB port; RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable BLE ship from, and how fast?
Reader RF1070R USB/RS232 SIMATIC RF1000 access control reader RF1070R; ISO 14443 A/B Mifare, ISO15693 Legic Prime; Legic Advant USB port; RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, including 1.8 m USB connecting cable BLE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
