- Part number
- 6GT2831-6AA60
- Model no
- RF1060R USB reader SIMATIC RF1000 Access control reader RF1060R; ISO 14443 A/B Mifare, ISO15693 USB port; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable .

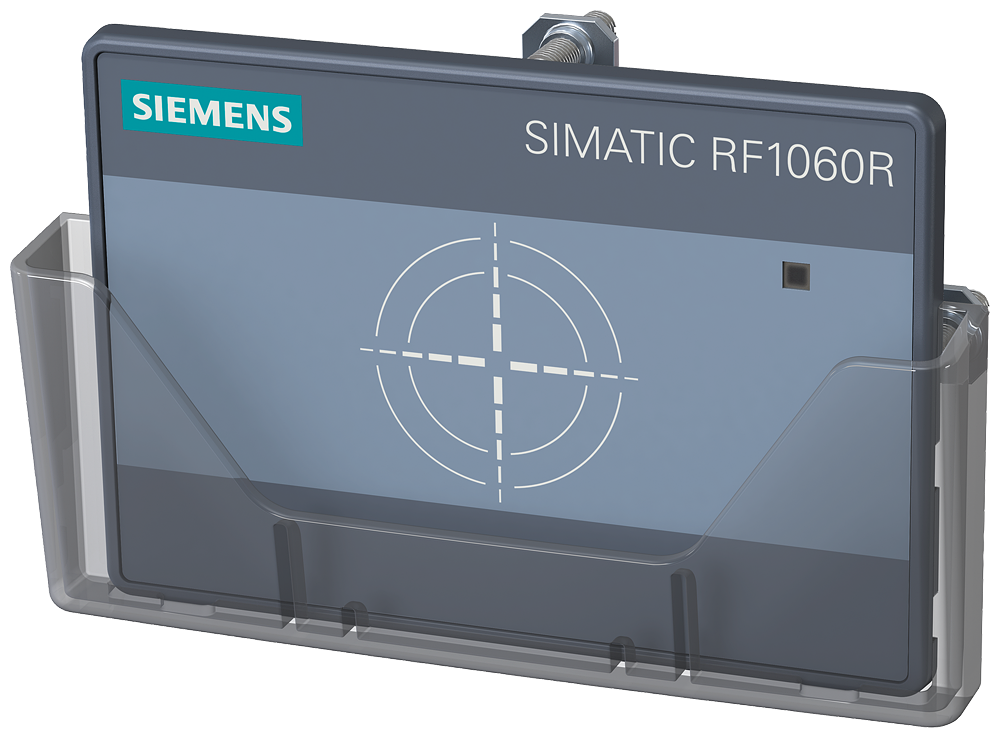

Siemens 6GT2831-6AA60 SIMATIC RF1000 RF1060R USB Reader 13.56 MHz ISO 14443/15693 RFID Reader
Siemens RF1060R USB reader, ISO 14443 A/B / ISO 15693, 13.56 MHz, IP65 front.
Description
About the RF1060R USB reader SIMATIC RF1000 Access control reader RF1060R; ISO 14443 A/B Mifare, ISO15693 USB port; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable .
About the RF1060R USB reader SIMATIC RF1000 Access control reader RF1060R; ISO 14443 A/B Mifare, ISO15693 USB port; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable .
The Siemens 6GT2831-6AA60 is a SIMATIC RF1000 RF1060R access control reader that connects over USB 2.0 and reads ISO 14443 A/B and ISO 15693 transponders at 13.56 MHz. It has an integrated antenna, a 1.8 m USB connecting cable, and an IP65 front rating once mounted in a cabinet cutout, keeping the read head sealed against dust and splashes on the panel front.
Selection Notes
The RF1060R covers ISO 14443 A/B and ISO 15693 transponders over a single USB 2.0 link, so it fits a PC- or control-system-driven access point where the host handles the read logic. Pick the RF1070R variant instead if the installation also needs Legic Prime/Advant tags or an RS232 fallback; pick a PoE/RJ45 model such as the RF1170R when the reader has to run standalone on the network without a local host.
Applications
The 90 x 62 x 23.5 mm housing and 4-screw cabinet fastening suit access-control points, turnstiles, and machine-access panels where a PC or PLC reads badges over USB. The 0.12 kg weight and integrated antenna keep the installation footprint small at doors and equipment enclosures.
Specification
Full specification
General 3
| product type designation | RF1060R USB reader SIMATIC RF1000 Access control reader RF1060R; ISO 14443 A/B Mifare, ISO15693 USB port; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable . |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | ISO 15693 and ISO 14443 A/B transponder, for connecting to PC and control systems |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693, ISO 14443 A/B, Felica, NXP NTAG21x, HID iClass |
| transfer rate / with radio transmission / maximum | 424 kbit/s |
| product feature / multitag-capable | Yes |
Interfaces 2
| standard for interfaces / for communication | USB 2.0 |
|---|---|
| type of electrical connection | 1.8 m connecting cable with USB 2.0 type A connector |
Show all 49 specifications ↓ Show less ↑40 more values in Identification, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Accessories, Logistics.
Identification 10
| Part number | 6GT2831-6AA60 |
|---|---|
| Type designation | RF1060R USB reader SIMATIC RF1000 Access control reader RF1060R; ISO 14443 A/B Mifare, ISO15693 USB port; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable . |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106027377 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Mechanical data 3
| material | PC-GF |
|---|---|
| color | titanium gray |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 4
| supply voltage / at DC: rated value | 5 V |
|---|---|
| supply voltage / at DC: ● | 4.5 ... 5.25 V |
| consumed current / at DC: at 5 V / typical | 0.15 A |
| consumed current / at DC: at 5 V / maximum | 0.3 A |
Ambient conditions 7
| ambient temperature: during operation | -25 ... +55 °C |
|---|---|
| ambient temperature: during storage | -25 ... +55 °C |
| ambient temperature: during transport | -25 ... +55 °C |
| protection class IP | IP65; on front after cabinet installation, IP20 rear |
| shock resistance | EN 60721-3-7 Class 7 M2 |
| shock acceleration | 300 m/s2 |
| vibrational acceleration | 50 m/s2 |
Design, dimensions and weights 4
| width | 90 mm |
|---|---|
| height | 62 mm |
| depth | 23.5 mm |
| fastening method | 4 M4 screws for cabinet installation |
Product features, product functions, product components / general 2
| display version | 3-color LED |
|---|---|
| product feature / silicon-free | Yes |
Standards, specifications, approvals 2
| certificate of suitability | Radio according to R&TTE guidelines EN300 330 and EN 301489, FCC, cULus |
|---|---|
| certificate of suitability: IECEx | No |
Accessories 1
| accessories | card holder, USB cable 0.5 m, table/wall box, clean room cover, |
|---|
Logistics 7
| Net weight | 0.12 kg |
|---|---|
| Package dimensions | 170 × 80 × 50 mm |
| Country of origin | DE |
| Shipping weight | 0.62 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2831-6AA60
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the RF1060R USB reader SIMATIC RF1000 Access control reader RF1060R; ISO 14443 A/B Mifare, ISO15693 USB port; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable .
Which supply voltage is RF1060R USB reader SIMATIC RF1000 Access control reader RF1060R; ISO 14443 A/B Mifare, ISO15693 USB port; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable . rated for?
The rated operational voltage of RF1060R USB reader SIMATIC RF1000 Access control reader RF1060R; ISO 14443 A/B Mifare, ISO15693 USB port; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable . is 5 V AC.
What is the HS code of RF1060R USB reader SIMATIC RF1000 Access control reader RF1060R; ISO 14443 A/B Mifare, ISO15693 USB port; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable . for customs?
The tariff (HS) code on file for RF1060R USB reader SIMATIC RF1000 Access control reader RF1060R; ISO 14443 A/B Mifare, ISO15693 USB port; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable . is 84718000.
What is the EAN of RF1060R USB reader SIMATIC RF1000 Access control reader RF1060R; ISO 14443 A/B Mifare, ISO15693 USB port; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable .?
The EAN (GTIN) of RF1060R USB reader SIMATIC RF1000 Access control reader RF1060R; ISO 14443 A/B Mifare, ISO15693 USB port; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable . is 4034106027377.
Where does RF1060R USB reader SIMATIC RF1000 Access control reader RF1060R; ISO 14443 A/B Mifare, ISO15693 USB port; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable . ship from, and how fast?
RF1060R USB reader SIMATIC RF1000 Access control reader RF1060R; ISO 14443 A/B Mifare, ISO15693 USB port; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable . ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
