- Part number
- 6GT2821-8AC10
- Model no
- RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna.

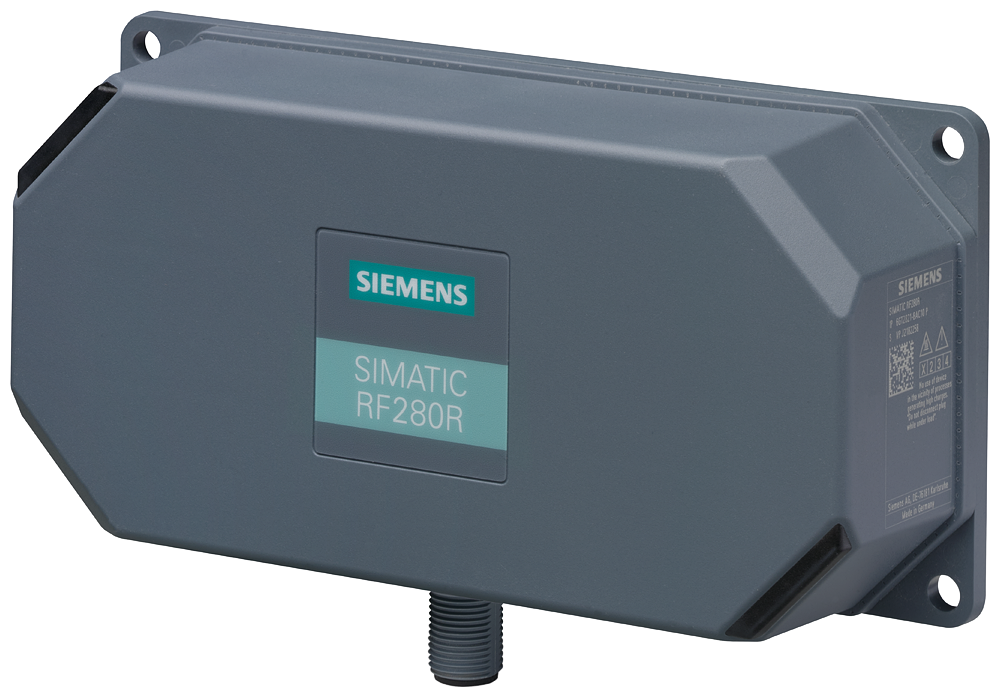

Siemens 6GT2821-8AC10 SIMATIC RF200 RF280R RS422 13.56MHz IP67 RFID Reader
SIMATIC RF200 RF280R RFID reader, RS422 interface, 13.56MHz ISO 15693, IP67, 160x80x41mm.
Description
About the RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna.
About the RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna.
The Siemens 6GT2821-8AC10 is a SIMATIC RF200 RF280R RFID reader with an RS422 (3964R) interface for connecting to SIMATIC communication modules. Built into a 160 x 80 x 41 mm housing with an integrated antenna, it reads ISO 15693 transponders at 13.56 MHz and carries an IP67 rating for -25 to +70°C operation.
Certifications & Standards
- EPD
Selection Notes
The RF280R is the largest integrated-antenna reader in the RF200 line at 160 x 80 x 41 mm, mounted with 4 x M5 screws instead of the 2-screw pattern on the smaller cuboid readers, and it draws 0.13 A versus the 0.05 A typical of the other readers in this family. Its wider -25 to +70°C operating range and -40 to +85°C storage/transport range also exceed the smaller RF200 readers, which is consistent with the larger antenna and electronics package. Choose the RF280R over the next-largest cuboid variant when the read distance the 75 x 75 x 41 mm body provides is still not enough for the application.
Applications
Used for long-range gate reads on pallet or large-carrier tracking, dock doors, and wide conveyor openings where the smaller RF200 readers cannot reach the required tag standoff distance.
Specification
Full specification
General 3
| product type designation | RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna. |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | ISO 15693 Transponder (MDS Dxxx), for connecting to communication modules |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693, ISO 18000-3 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | No |
Electrical data 3
| transfer rate / at the point-to-point connection / serial / maximum | 115.2 kbit/s |
|---|---|
| transmission time / for user data: for write access / per byte / typical | 0.6 ms |
| transmission time / for user data: for read access / per byte / typical | 0.6 ms |
Show all 60 specifications ↓ Show less ↑50 more values in Identification, Interfaces, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GT2821-8AC10 |
|---|---|
| Type designation | RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622501047 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Interfaces 3
| standard for interfaces / for communication | RS422 |
|---|---|
| type of electrical connection | M12, 8-pin |
| for communications interface | M12, 8-pin |
Mechanical data 4
| material | PA 12 |
|---|---|
| color | titanium gray |
| tightening torque / of the screw for securing the equipment / maximum | 1.5 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 3
| supply voltage / at DC: rated value | 24 V |
|---|---|
| supply voltage / at DC: ● | 20.4 ... 28.8 V |
| consumed current / at DC: at 24 V / typical | 0.13 A |
Ambient conditions 7
| ambient temperature: during operation | -25 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| protection class IP | IP67 |
| shock resistance | EN 60721-3-7 Class 7 M2 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 5
| width | 80 mm |
|---|---|
| height | 41 mm |
| depth | 160 mm |
| fastening method | 4 x M5 screws |
| wire length: for RS 422 interface / maximum | 1000 m |
Product features, product functions, product components / general 2
| display version | 3-color LED |
|---|---|
| product feature / silicon-free | Yes |
Standards, specifications, approvals 3
| certificate of suitability | Radio according to R&TTE guidelines EN300 330 and EN 301489, FCC, cULus |
|---|---|
| certificate of suitability: IECEx | No |
| MTBF | 173 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 96.7 kg |
| global warming potential [CO2 eq]: during manufacturing | 10.7 kg |
| global warming potential [CO2 eq]: during operation | 85.7 kg |
| global warming potential [CO2 eq]: after end of life | 0.3 kg |
Approvals / Certificates 1
| General Product Approval | China RoHS |
|---|
Logistics 7
| Net weight | 0.3 kg |
|---|---|
| Package dimensions | 158 × 94 × 42 mm |
| Country of origin | DE |
| Shipping weight | 0.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2821-8AC10
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna.
What is the rated current of RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna.?
The rated current of RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna. is 0.13 A.
Which supply voltage is RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna. rated for?
The rated operational voltage of RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna. is 24 V AC.
What is the HS code of RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna. for customs?
The tariff (HS) code on file for RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna. is 84719000.
What is the EAN of RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna.?
The EAN (GTIN) of RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna. is 4047622501047.
Where does RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna. ship from, and how fast?
RF280R reader SIMATIC RF200 Reader RF280R RS422 interface (3964R) IP67, -10 to +60 °C, 160x 80x 41 mm with integrated antenna. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
