- Part number
- 6GT2821-6AC40
- Model no
- Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna.
Siemens has announced the end of 6GT2821-6AC40
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

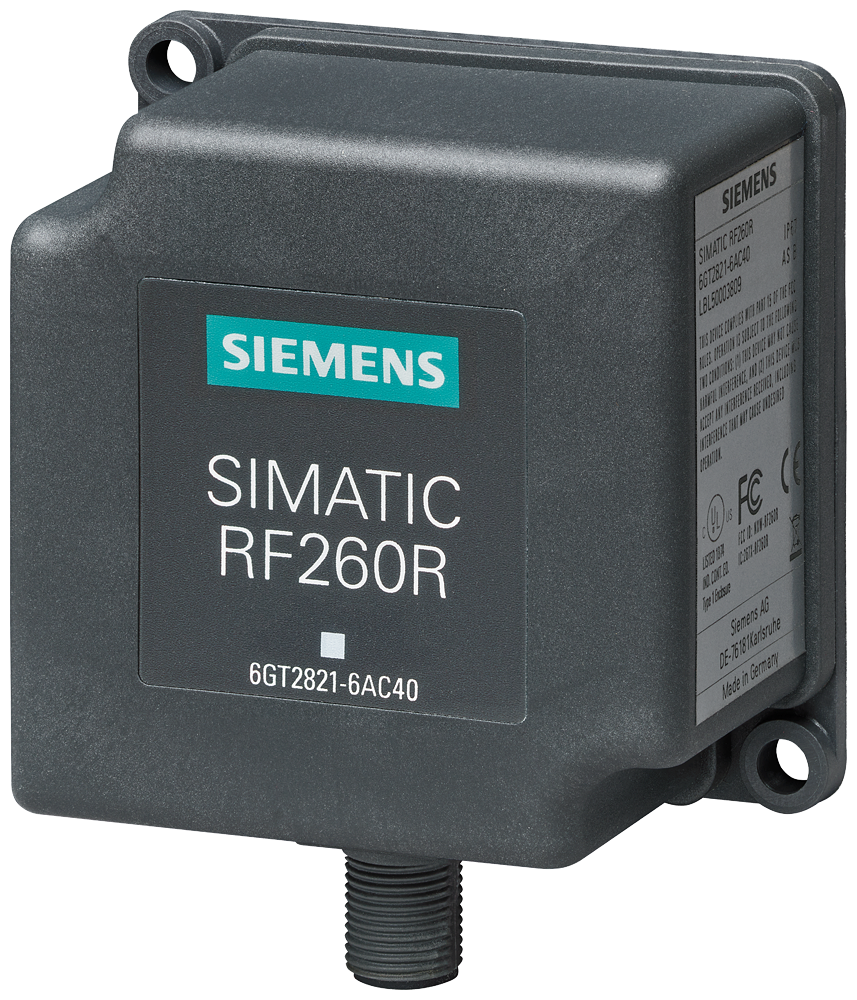

Siemens 6GT2821-6AC40 SIMATIC RF200 RF260R ASCII RS232 13.56MHz IP67 RFID Reader
SIMATIC RF200 RF260R ASCII RFID reader, RS232 scan-mode interface, 13.56MHz ISO 15693, IP67.
Description
About the Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna.
About the Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna.
The Siemens 6GT2821-6AC40 is a SIMATIC RF200 RF260R ASCII RFID reader with an RS232 interface running in ASCII/scan mode, connecting directly to a PC or control system. Built into a 75 x 75 x 41 mm housing with an integrated antenna, it reads ISO 15693 transponders at 13.56 MHz and carries an IP67 rating for -20 to +70°C operation.
Certifications & Standards
- EPD
Selection Notes
This reader pairs the RF260R's larger 75 x 75 x 41 mm integrated-antenna body with an RS232 ASCII/scan-mode interface, so it outputs tag data as plain text to a PC or scanner input rather than through a SIMATIC communication module. The 30 m maximum cable run is far shorter than the RS422 version's 1000 m, so it needs to sit near the connected PC. Choose this ASCII variant over the RS422 version when the endpoint is a PC or terminal, and choose the smaller cuboid ASCII variant instead when the longer read range of the 75 mm body is not needed.
Applications
Used at manual read/write stations, packing benches, or scan-mode terminals where a longer read range than the compact RF240R offers is needed and the reader connects directly to a nearby PC.
Specification
Full specification
General 3
| product type designation | Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | ISO 15693 transponder (MDS Dxxx), for connecting to PC and control systems (incl. Scan Mode) |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693, ISO 18000-3 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | No |
Electrical data 3
| transfer rate / at the point-to-point connection / serial / maximum | 115.2 kbit/s |
|---|---|
| transmission time / for user data: for write access / per byte / typical | 1.2 ms |
| transmission time / for user data: for read access / per byte / typical | 1.2 ms |
Show all 59 specifications ↓ Show less ↑49 more values in Identification, Interfaces, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2821-6AC40 |
|---|---|
| Type designation | Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4034106024550 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Interfaces 2
| standard for interfaces / for communication | RS232 |
|---|---|
| type of electrical connection | M12, 8-pin |
Mechanical data 4
| material | PA6.6 |
|---|---|
| color | anthracite |
| tightening torque / of the screw for securing the equipment / maximum | 1.5 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 3
| supply voltage / at DC: rated value | 24 V |
|---|---|
| supply voltage / at DC: ● | 20.4 ... 28.8 V |
| consumed current / at DC: at 24 V / typical | 0.05 A |
Ambient conditions 7
| ambient temperature: during operation | -20 ... +70 °C |
|---|---|
| ambient temperature: during storage | -25 ... +80 °C |
| ambient temperature: during transport | -25 ... +80 °C |
| protection class IP | IP67 |
| shock resistance | EN 60721-3-7 Class 7 M2 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 5
| width | 75 mm |
|---|---|
| height | 41 mm |
| depth | 75 mm |
| fastening method | 2 x M5 screws |
| wire length: with RS 232 interface / maximum | 30 m |
Product features, product functions, product components / general 2
| display version | 3-color LED |
|---|---|
| product feature / silicon-free | Yes |
Standards, specifications, approvals 3
| certificate of suitability | Radio according to R&TTE guidelines EN300 330 and EN 301489, FCC, cULus |
|---|---|
| certificate of suitability: IECEx | No |
| MTBF | 430 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 50.4 kg |
| global warming potential [CO2 eq]: during manufacturing | 10.7 kg |
| global warming potential [CO2 eq]: during operation | 39.4 kg |
| global warming potential [CO2 eq]: after end of life | 0.3 kg |
General Product Approval 1
| China RoHS Manufacturer Declara- China RoHS | tion |
|---|
Logistics 7
| Net weight | 1 kg |
|---|---|
| Package dimensions | 75 × 75 × 40 mm |
| Country of origin | DE |
| Shipping weight | 1.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2821-6AC40
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna.
What is the rated current of Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna.?
The rated current of Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. is 0.05 A.
Which supply voltage is Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. rated for?
The rated operational voltage of Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. is 24 V AC.
What is the HS code of Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. for customs?
The tariff (HS) code on file for Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. is 84719000.
What is the EAN of Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna.?
The EAN (GTIN) of Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. is 4034106024550.
Where does Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. ship from, and how fast?
Reader RF260R ASCII SIMATIC RF200 Reader RF260R; RS-232 interface (ASCII/scan mode); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
