- Part number
- 6GT2821-6AC10
- Model no
- RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna.

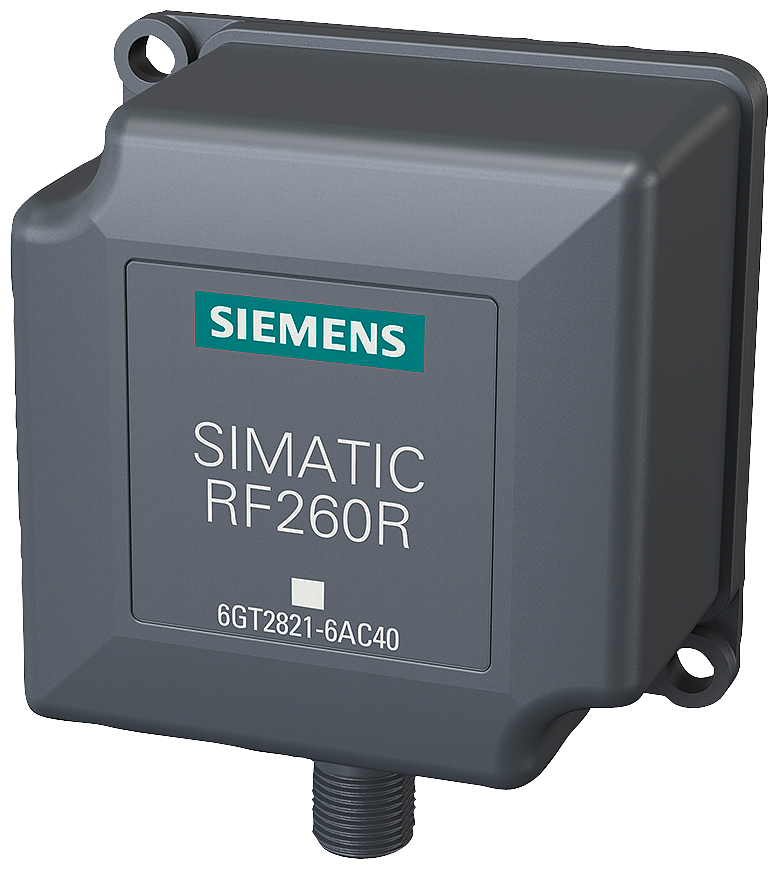

Siemens 6GT2821-6AC10 SIMATIC RF200 RF260R RS422 13.56MHz IP67 RFID Reader
SIMATIC RF200 RF260R RFID reader, RS422 interface, 13.56MHz ISO 15693, IP67, 75x75x41mm.
Description
About the RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna.
About the RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna.
The Siemens 6GT2821-6AC10 is a SIMATIC RF200 RF260R RFID reader with an RS422 (3964R) interface for connecting to SIMATIC communication modules. Built into a 75 x 75 x 41 mm housing with an integrated antenna, it reads ISO 15693 transponders at 13.56 MHz and carries an IP67 rating for -20 to +70°C operation.
Certifications & Standards
- EPD
Selection Notes
At 75 x 75 x 41 mm the RF260R is a larger cuboid body than the smaller 50 x 50 x 30 mm cuboid variant in this family, with the same 24 V DC supply and RS422 (3964R) interface but more integrated antenna area for a longer read range. Choose it over the smaller cuboid variant when the tag standoff distance exceeds what that reader can reliably cover, and keep the smaller variant where panel space is tight. Both share the same SIMATIC communication module wiring, so swapping between the two does not change the control-side interface.
Applications
Used for pallet, tote, or larger carrier identification where read distance requirements exceed what the compact RF240R covers, on conveyor lines, gate-style read points, or work-cell entry stations.
Specification
Full specification
General 3
| product type designation | RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | ISO 15693 Transponder (MDS Dxxx), for connecting to communication modules |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693, ISO 18000-3 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | No |
Electrical data 3
| transfer rate / at the point-to-point connection / serial / maximum | 115.2 kbit/s |
|---|---|
| transmission time / for user data: for write access / per byte / typical | 0.6 ms |
| transmission time / for user data: for read access / per byte / typical | 0.6 ms |
Show all 59 specifications ↓ Show less ↑49 more values in Identification, Interfaces, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2821-6AC10 |
|---|---|
| Type designation | RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4042948566978 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Interfaces 2
| standard for interfaces / for communication | RS422 |
|---|---|
| type of electrical connection | M12, 8-pin |
Mechanical data 4
| material | PA6.6 |
|---|---|
| color | anthracite |
| tightening torque / of the screw for securing the equipment / maximum | 1.5 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 3
| supply voltage / at DC: rated value | 24 V |
|---|---|
| supply voltage / at DC: ● | 20.4 ... 28.8 V |
| consumed current / at DC: at 24 V / typical | 0.05 A |
Ambient conditions 7
| ambient temperature: during operation | -20 ... +70 °C |
|---|---|
| ambient temperature: during storage | -25 ... +80 °C |
| ambient temperature: during transport | -25 ... +80 °C |
| protection class IP | IP67 |
| shock resistance | EN 60721-3-7 Class 7 M2 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 5
| width | 75 mm |
|---|---|
| height | 41 mm |
| depth | 75 mm |
| fastening method | 2 x M5 screws |
| wire length: for RS 422 interface / maximum | 1000 m |
Product features, product functions, product components / general 2
| display version | 3-color LED |
|---|---|
| product feature / silicon-free | Yes |
Standards, specifications, approvals 3
| certificate of suitability | Radio according to R&TTE guidelines EN300 330 and EN 301489, FCC, cULus |
|---|---|
| certificate of suitability: IECEx | No |
| MTBF | 480 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 43.51 kg |
| global warming potential [CO2 eq]: during manufacturing | 10.7 kg |
| global warming potential [CO2 eq]: during operation | 32.51 kg |
| global warming potential [CO2 eq]: after end of life | 0.3 kg |
General Product Approval 1
| China RoHS Manufacturer Declara- | tion |
|---|
Logistics 7
| Net weight | 0.2 kg |
|---|---|
| Package dimensions | 75 × 75 × 40 mm |
| Country of origin | DE |
| Shipping weight | 0.7 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2821-6AC10
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna.
What is the rated current of RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna.?
The rated current of RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. is 0.05 A.
Which supply voltage is RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. rated for?
The rated operational voltage of RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. is 24 V AC.
What is the HS code of RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. for customs?
The tariff (HS) code on file for RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. is 84719000.
What is the EAN of RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna.?
The EAN (GTIN) of RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. is 4042948566978.
Where does RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. ship from, and how fast?
RF260R reader SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
