- Part number
- 6GT2821-1AC10
- Model no
- RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna.

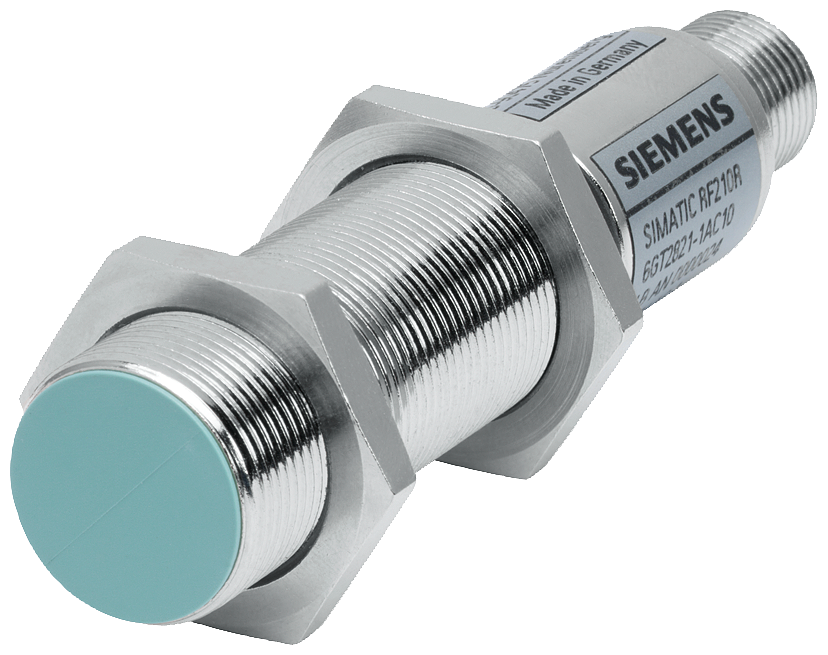

Siemens 6GT2821-1AC10 SIMATIC RF200 RF210R RS422 13.56MHz IP67 RFID Reader
SIMATIC RF200 RF210R RFID reader, RS422 interface, 13.56MHz ISO 15693, IP67, M18 barrel mount.
Description
About the RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna.
About the RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna.
The Siemens 6GT2821-1AC10 is a SIMATIC RF200 RF210R RFID reader with an RS422 (3964R) interface for connecting to SIMATIC communication modules. Built into an M18 x 71 mm barrel with an integrated antenna, it reads ISO 15693 transponders at 13.56 MHz and carries an IP67 rating for -20 to +70°C operation.
Certifications & Standards
- EPD
Selection Notes
The M18 barrel body and integrated antenna make the 6GT2821-1AC10 the smallest-footprint reader in the RF200 line, suited to tight mounting positions where a separate antenna cannot be fitted. Its RS422 (3964R) interface talks directly to a SIMATIC communication module rather than a PC, so it fits into a PLC-driven read station without protocol conversion. Against the larger M30 barrel model in this family, the smaller M18 body trades read range for mounting clearance; pick the M30 variant where the antenna needs to sit further from the tag.
Applications
Used on conveyor and assembly lines for part or carrier identification where the reader mounts through an M18 hole in a bracket or guide rail, and the -20 to +70°C, IP67 rating tolerates washdown or outdoor-adjacent installation.
Specification
Full specification
General 3
| product type designation | RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna. |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | ISO 15693 Transponder (MDS Dxxx), for connecting to communication modules |
Radio frequencies 4
| operating frequency / rated value | 13.56 MHz |
|---|---|
| protocol / with radio transmission | ISO 15693, ISO 18000-3 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | No |
Electrical data 3
| transfer rate / at the point-to-point connection / serial / maximum | 115.2 kbit/s |
|---|---|
| transmission time / for user data: for write access / per byte / typical | 0.6 ms |
| transmission time / for user data: for read access / per byte / typical | 0.6 ms |
Show all 58 specifications ↓ Show less ↑48 more values in Identification, Interfaces, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2821-1AC10 |
|---|---|
| Type designation | RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4042948566954 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Interfaces 2
| standard for interfaces / for communication | RS422 |
|---|---|
| type of electrical connection | M12, 8-pin |
Mechanical data 4
| material | Brass, nickel-plated / PBT |
|---|---|
| color | silver/pastel turquoise |
| tightening torque / of the screw for securing the equipment / maximum | 20 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 3
| supply voltage / at DC: rated value | 24 V |
|---|---|
| supply voltage / at DC: ● | 20.4 ... 28.8 V |
| consumed current / at DC: at 24 V / typical | 0.05 A |
Ambient conditions 7
| ambient temperature: during operation | -20 ... +70 °C |
|---|---|
| ambient temperature: during storage | -25 ... +80 °C |
| ambient temperature: during transport | -25 ... +80 °C |
| protection class IP | IP67 |
| shock resistance | EN 60721-3-7 Class 7 M2 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 4
| height | 83 mm |
|---|---|
| diameter | 18 mm |
| fastening method | 2 nuts M18 x 1 (included in scope of supply) |
| wire length: for RS 422 interface / maximum | 1000 m |
Product features, product functions, product components / general 2
| display version | 3-color LED |
|---|---|
| product feature / silicon-free | Yes |
Standards, specifications, approvals 3
| certificate of suitability | Radio according to R&TTE guidelines EN300 330 and EN 301489, FCC, cULus |
|---|---|
| certificate of suitability: IECEx | No |
| MTBF | 505 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 43.51 kg |
| global warming potential [CO2 eq]: during manufacturing | 10.7 kg |
| global warming potential [CO2 eq]: during operation | 32.51 kg |
| global warming potential [CO2 eq]: after end of life | 0.3 kg |
General Product Approval 1
| China RoHS Manufacturer Declara- | tion |
|---|
Logistics 7
| Net weight | 1 kg |
|---|---|
| Package dimensions | 50 × 50 × 30 mm |
| Country of origin | DE |
| Shipping weight | 1.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2821-1AC10
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna.
What is the rated current of RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna.?
The rated current of RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna. is 0.05 A.
Which supply voltage is RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna. rated for?
The rated operational voltage of RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna. is 24 V AC.
What is the HS code of RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna. for customs?
The tariff (HS) code on file for RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna. is 84719000.
What is the EAN of RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna.?
The EAN (GTIN) of RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna. is 4042948566954.
Where does RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna. ship from, and how fast?
RF210R reader SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
