- Part number
- 6GT2815-2BN15
- Model no
- Antenna cable for UHF, RP-TNC / RP-TNC

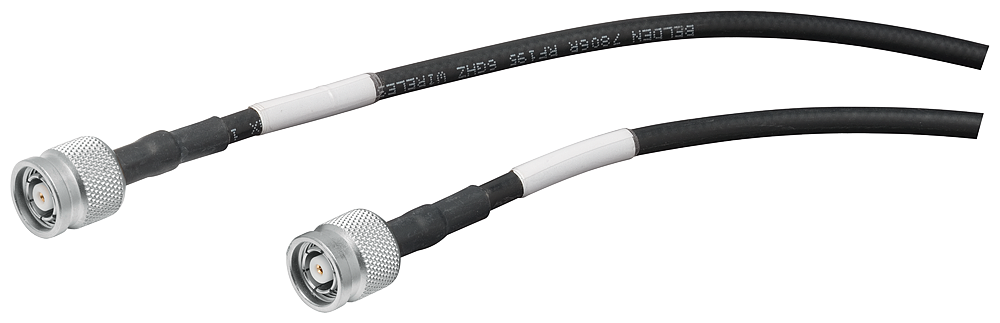

Siemens 6GT2815-2BN15 SIMATIC RF600 Trailing Antenna Connecting Cable RP-TNC 15 m RFID Cable
SIMATIC RF600 trailing antenna connecting cable, RP-TNC, 15 m, highly flexible, drag-chain rated.
Description
About the Antenna cable for UHF, RP-TNC / RP-TNC
About the Antenna cable for UHF, RP-TNC / RP-TNC
The Siemens 6GT2815-2BN15 is a 15 m pre-assembled SIMATIC RF600 antenna connecting cable built for trailing, drag-chain-capable installations, joining an RF600 reader to an antenna with RP-TNC connectors. Its highly flexible O2YS(ST)CY coax is rated for 100,000 bending cycles and 3,000,000 torsion cycles at plus or minus 180 degrees, with a 100 mm continuous-bend radius and operation from -25 to +80 degrees C.
Selection Notes
The O2YS(ST)CY construction and its 100,000 bending-cycle / 3,000,000 torsion-cycle rating set this apart from the fixed-installation LMR cables used on the other RF600 connecting-cable lengths - pick it when the antenna sits on a moving axis, turntable, or drag chain rather than a stationary mount. Its 100 mm continuous-bend radius is tighter than the fixed cables' bend limits, which matters for cable-carrier routing. The PVC sheath and -25 to +80 °C range are narrower than the PE-sheathed LMR cables' -40 to +85 °C range, so ambient temperature at the moving joint should be checked against this narrower window. Both ends terminate RP-TNC.
Specification
Full specification
General 6
| product type designation | Antenna cable for UHF, RP-TNC / RP-TNC |
|---|---|
| product description | Highly flexible coaxial cable SIMATIC RF600 connecting cable for antenna L15; pre-assembled; IP65; trailing ; PE, CMR/MPR, length 15 m. |
| product brand name | SIMATIC RF |
| suitability for use | Plug-in cable for connecting a UHF antenna to an RF600 reader |
| cable designation | O2YS(ST)CY 1.4/3.7-50LI |
| wire length | 15 m |
Electrical data 6
| number of electrical connections | 2 |
|---|---|
| type of electrical connection | R-TNC (female, straight) / R-TNC (female, straight) |
| attenuation factor per length: at 900 MHz / maximum | 0.288 dB/m |
| impedance: rated value | 50 Ω |
| loop resistance per length / maximum | 30 mΩ/m |
| operating voltage: maximum | 1000 V |
Mechanical data 14
| design of the shield | Braided shield made of tin-plated copper wires |
|---|---|
| outer diameter: of cable sheath | 5.5 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.2 mm |
| material: of inner conductor | Cu |
| material: of dielectric | PE |
| material: of cable sheath | PVC |
| color: of cable sheath | Black |
| bending radius: with single bend / minimum permissible | 22 mm |
| bending radius: with multiple bends / minimum permissible | 44 mm |
| bending radius: with continuous bending | 100 mm |
| number of bending cycles | 100000 |
| number of torsion cycles / with torsion by ± 180° on 1 m cable length | 3000000 |
| tensile load / maximum | 190 N |
| weight per length | 42 kg/km |
Show all 52 specifications ↓ Show less ↑26 more values in Identification, Ambient conditions, Product features, product functions, product components / general, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2815-2BN15 |
|---|---|
| Type designation | Antenna cable for UHF, RP-TNC / RP-TNC |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169669450 |
| ETIM class | EC003249 |
| eCl@ss | 27060307 |
Ambient conditions 6
| ambient temperature: during operation | -25 ... +80 °C |
|---|---|
| ambient temperature: during storage | -25 ... +80 °C |
| ambient temperature: during transport | -25 ... +80 °C |
| ambient temperature: during installation | -25 ... +80 °C |
| fire behavior | Flame-resistant in line with UL style 1354 (only cable without plug) |
| radiological resistance / to UV radiation | resistant |
Product features, product functions, product components / general 2
| product feature: halogen-free | No |
|---|---|
| product feature: silicon-free | Yes |
General Product Approval 1
| China RoHS Manufacturer Declara- | tion |
|---|
Logistics 7
| Net weight | 0.001 kg |
|---|---|
| Package dimensions | 50 × 50 × 30 mm |
| Country of origin | DE |
| Shipping weight | 0.501 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2815-2BN15
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Antenna cable for UHF, RP-TNC / RP-TNC
Which supply voltage is Antenna cable for UHF, RP-TNC / RP-TNC rated for?
The rated operational voltage of Antenna cable for UHF, RP-TNC / RP-TNC is 1000 V AC.
What is the HS code of Antenna cable for UHF, RP-TNC / RP-TNC for customs?
The tariff (HS) code on file for Antenna cable for UHF, RP-TNC / RP-TNC is 85442000.
What is the EAN of Antenna cable for UHF, RP-TNC / RP-TNC?
The EAN (GTIN) of Antenna cable for UHF, RP-TNC / RP-TNC is 4019169669450.
Where does Antenna cable for UHF, RP-TNC / RP-TNC ship from, and how fast?
Antenna cable for UHF, RP-TNC / RP-TNC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
