- Part number
- 6GT2815-1BN10
- Model no
- Antenna cable for UHF, RP-TNC / RP-TNC

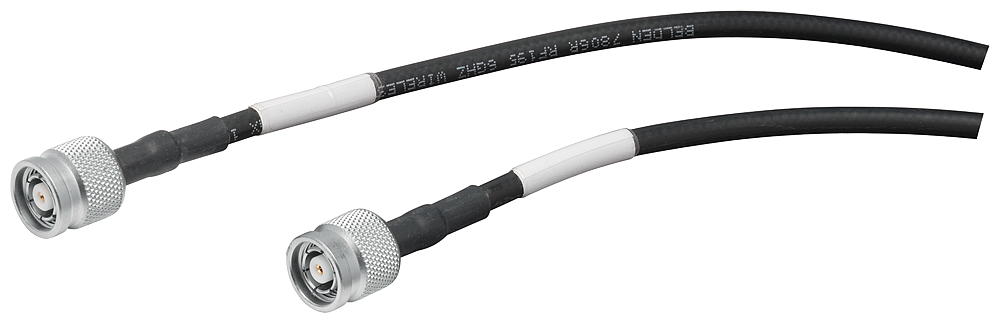

Siemens 6GT2815-1BN10 SIMATIC RF600 Antenna Connecting Cable RP-TNC 10 m LMR-300 RFID Cable
SIMATIC RF600 antenna connecting cable, RP-TNC to RP-TNC, 10 m, LMR-300, approx. 2 dB damping.
Description
About the Antenna cable for UHF, RP-TNC / RP-TNC
About the Antenna cable for UHF, RP-TNC / RP-TNC
The Siemens 6GT2815-1BN10 is a 10 m pre-assembled SIMATIC RF600 antenna connecting cable, joining an RF600 reader to an antenna with RP-TNC connectors on both ends and rated at approximately 2 dB damping per the Siemens catalog. Built on LMR-300 coax with 50 ohm impedance and a maximum attenuation of 0.199 dB per meter at 900 MHz, it carries a CMR/FT4 flame rating and operates from -40 to +85 degrees C.
Selection Notes
Siemens catalogs this 10 m LMR-300 length at approximately 2 dB damping, distinguishing it in the price list from the otherwise similarly specified 6GT2815-0BN10 10 m cable. The 0.199 dB/m attenuation and 7.62 mm LMR-300 core keep loss lower over 10 m than the thinner LMR-195 cables used on the 1 m and 3 m lengths would produce at this distance. Both ends terminate RP-TNC, matching the RF600 reader and antenna connectors directly.
Specification
Full specification
General 6
| product type designation | Antenna cable for UHF, RP-TNC / RP-TNC |
|---|---|
| product description | Coaxial cable SIMATIC RF600 connecting cable for antenna L10; damping 2 DB; pre-assembled; IP65; PE, CMR/MPR, length 10 m. |
| product brand name | SIMATIC RF |
| suitability for use | Plug-in cable for connecting a UHF antenna to an RF600 reader |
| cable designation | LMR-300 |
| wire length | 10 m |
Electrical data 6
| number of electrical connections | 2 |
|---|---|
| type of electrical connection | R-TNC (female, straight) / R-TNC (female, straight) |
| attenuation factor per length: at 900 MHz / maximum | 0.199 dB/m |
| impedance: rated value | 50 Ω |
| loop resistance per length / maximum | 14.3 mΩ/m |
| operating voltage: maximum | 2000 V |
Mechanical data 10
| design of the shield | Braided shield made of tin-plated copper wires |
|---|---|
| outer diameter: of cable sheath | 7.62 mm |
| material: of inner conductor | Cu |
| material: of dielectric | PE |
| material: of cable sheath | PE |
| color: of cable sheath | Black |
| bending radius: with single bend / minimum permissible | 22.2 mm |
| bending radius: with multiple bends / minimum permissible | 76.2 mm |
| tensile load / maximum | 535 N |
| weight per length | 80 kg/km |
Show all 47 specifications ↓ Show less ↑25 more values in Identification, Ambient conditions, Product features, product functions, product components / general, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2815-1BN10 |
|---|---|
| Type designation | Antenna cable for UHF, RP-TNC / RP-TNC |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169668798 |
| ETIM class | EC003249 |
| eCl@ss | 27060307 |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -70 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: during installation | -40 ... +80 °C |
| fire behavior | Flame-resistant acc. to UL/NEC, CSA: CMR, FT4 (only cable without plug) |
| radiological resistance / to UV radiation | resistant |
Product features, product functions, product components / general 1
| product feature: halogen-free | No |
|---|
General Product Approval 1
| China RoHS Manufacturer Declara- | tion |
|---|
Logistics 7
| Net weight | 0.001 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | DE |
| Shipping weight | 0.501 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2815-1BN10
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Antenna cable for UHF, RP-TNC / RP-TNC
Which supply voltage is Antenna cable for UHF, RP-TNC / RP-TNC rated for?
The rated operational voltage of Antenna cable for UHF, RP-TNC / RP-TNC is 2000 V AC.
What is the HS code of Antenna cable for UHF, RP-TNC / RP-TNC for customs?
The tariff (HS) code on file for Antenna cable for UHF, RP-TNC / RP-TNC is 85442000.
What is the EAN of Antenna cable for UHF, RP-TNC / RP-TNC?
The EAN (GTIN) of Antenna cable for UHF, RP-TNC / RP-TNC is 4019169668798.
Where does Antenna cable for UHF, RP-TNC / RP-TNC ship from, and how fast?
Antenna cable for UHF, RP-TNC / RP-TNC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
