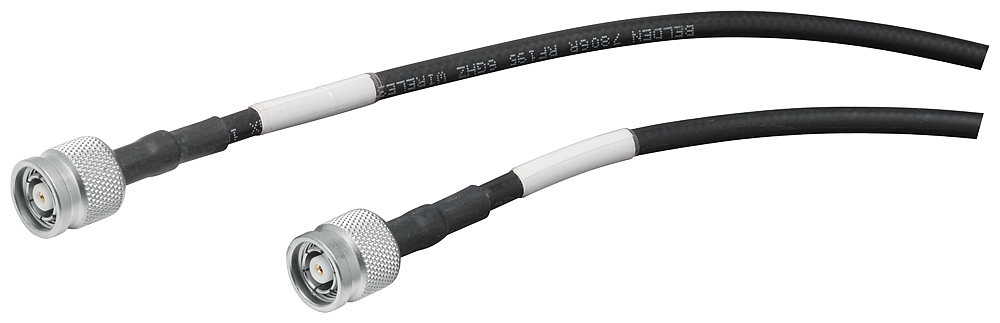

Siemens 6GT2815-0BN40 SIMATIC RF600 Antenna Connecting Cable RP-TNC 40 m LMR-400 RFID Cable
SIMATIC RF600 antenna connecting cable, RP-TNC to RP-TNC, 40 m, LMR-400-FR LSZH, 50 ohm.
Description
About the 6GT2815-0BN40
About the 6GT2815-0BN40
The Siemens 6GT2815-0BN40 is a 40 m pre-assembled SIMATIC RF600 antenna connecting cable, joining an RF600 reader to an antenna with RP-TNC connectors on both ends. Built on LMR-400-FR LSZH UL coax with 50 ohm impedance and a maximum attenuation of 0.13 dB per meter at 900 MHz, it is halogen-free and operates from -40 to +85 degrees C.
Selection Notes
Stepping up to LMR-400-FR LSZH for the 40 m length keeps attenuation at roughly 5.2 dB over the run, close to what the 20 m LMR-300 cable loses on its own, so this cable type is what makes runs beyond 20 m practical on the RF600 line. Its 10.3 mm outer diameter and 133 kg/km weight per length are heavier than the LMR-195 and LMR-300 versions, worth accounting for in cable tray fill and routing. The LSZH sheath is halogen-free, relevant where local fire codes restrict halogenated cable materials. Both ends terminate RP-TNC.
Specification
Full specification
Product description Coaxial cable SIMATIC RF600 connecting cable for antenna L40 pre-assembled, between reader and antenna, IP65 PE, CMR/MPR, Length 40 m damping. 4
| product brand name | SIMATIC RF |
|---|---|
| suitability for use | Plug-in cable for connecting a UHF antenna to an RF600 reader |
| cable designation | LMR-400-FR LSZH UL |
| wire length | 40 m |
Electrical data 6
| number of electrical connections | 2 |
|---|---|
| type of electrical connection | R-TNC (female, straight) / R-TNC (female, straight) |
| attenuation factor per length: at 900 MHz / maximum | 0.13 dB/m |
| impedance: rated value | 50 Ω |
| loop resistance per length / maximum | 14.3 mΩ/m |
| operating voltage: maximum | 2000 V |
Mechanical data 8
| design of the shield | Braided shield made of tin-plated copper wires |
|---|---|
| outer diameter: of cable sheath | 10.3 mm |
| material: of inner conductor | Cu |
| material: of dielectric | PE |
| material: of cable sheath | PE |
| color: of cable sheath | Black |
| bending radius: with single bend / minimum permissible | 50 mm |
| weight per length | 133 kg/km |
Show all 42 specifications ↓ Show less ↑24 more values in Identification, Ambient conditions, General Product Approval, Logistics.
Identification 9
| Part number | 6GT2815-0BN40 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106025137 |
| ETIM class | EC003249 |
| eCl@ss | 27060307 |
Ambient conditions 7
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -70 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: during installation | -40 ... +80 °C |
| fire behavior | Flame-resistant acc. to UL/NEC, CSA: CMR, FT4 (only cable without plug) |
| radiological resistance / to UV radiation | resistant |
| product features, product functions, product components / general product feature: halogen-free | Yes |
General Product Approval 1
| China RoHS Manufacturer Declara- | tion |
|---|
Logistics 7
| Net weight | 0.005 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | DE |
| Shipping weight | 0.505 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2815-0BN40
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6GT2815-0BN40
Which supply voltage is 6GT2815-0BN40 rated for?
The rated operational voltage of 6GT2815-0BN40 is 2000 V AC.
What is the HS code of 6GT2815-0BN40 for customs?
The tariff (HS) code on file for 6GT2815-0BN40 is 85442000.
What is the EAN of 6GT2815-0BN40?
The EAN (GTIN) of 6GT2815-0BN40 is 4034106025137.
Where does 6GT2815-0BN40 ship from, and how fast?
6GT2815-0BN40 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
