Siemens 6GT2815-0BN20 SIMATIC RF600 Antenna Connecting Cable RP-TNC 20 m LMR-300 RFID Cable

% $-333.04

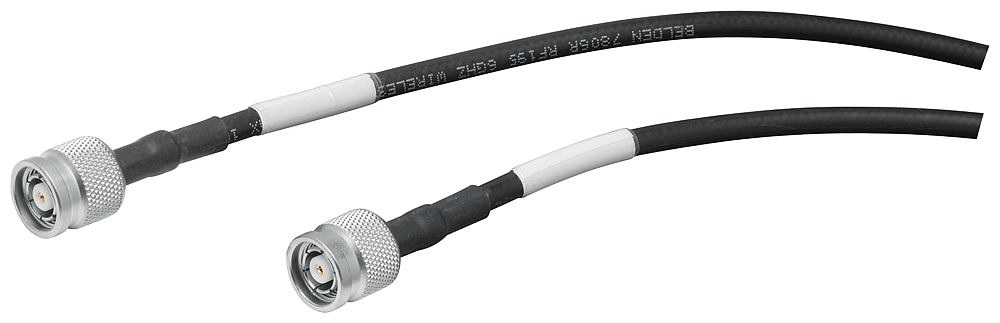

Siemens 6GT2815-0BN20 SIMATIC RF600 antenna connecting cable - RP-TNC, 20 m, LMR-300
Siemens 6GT2815-0BN20 SIMATIC RF600 antenna connecting cable - RP-TNC, 20 m, LMR-300

Siemens 6GT2815-0BN20 SIMATIC RF600 Antenna Connecting Cable RP-TNC 20 m LMR-300 RFID Cable

Brand: Siemens
Reference No: 6GT2815-0BN20
Catalog No: 6GT2815-0BN20
Series: SIMATIC RF600
Tariff Code (HS): 85442000
Rated Voltage: 2000 V
Communication: RP-TNC, 50 ohm coax
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$333.04

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6GT2815-0BN20 is a 20 m pre-assembled SIMATIC RF600 antenna connecting cable, joining an RF600 reader to an antenna with RP-TNC connectors on both ends. Built on LMR-300 coax with 50 ohm impedance and a maximum attenuation of 0.199 dB per meter at 900 MHz, it carries a CMR/FT4 flame rating and operates from -40 to +85 degrees C.

Technical Specifications

SKU 6GT2815-0BN20
Brand Siemens
Series SIMATIC RF600
Country of Origin DE
Product Type Designation Antenna cable for UHF, RP-TNC / RP-TNC
Product Description Coaxial cable
Suitability for Use Plug-in cable for connecting a UHF antenna to an RF600 reader
Cable Designation LMR-300
Wire Length 20 m
Number of Electrical Connections 2
Type of Electrical Connection R-TNC (female, straight) / R-TNC (female, straight)
Attenuation Factor per Length at 900 MHz, Max 0.199 dB/m
Impedance, Rated Value 50 Ω
Loop Resistance per Length, Max 14.3 mΩ/m
Operating Voltage, Max 2000 V
Design of Shield Braided shield made of tin-plated copper wires
Outer Diameter of Cable Sheath 7.62 mm
Material of Inner Conductor Cu
Material of Dielectric PE
Material of Cable Sheath PE
Color of Cable Sheath Black
Bending Radius, Single Bend, Min 22.2 mm
Bending Radius, Multiple Bends, Min 76.2 mm
Tensile Load, Max 535 N
Weight per Length 80 kg/km
Ambient Temperature, Operation -40 ... +85 °C
Ambient Temperature, Storage -70 ... +85 °C
Ambient Temperature, Transport -40 ... +85 °C
Ambient Temperature, Installation -40 ... +80 °C
Fire Behavior Flame-resistant acc. to UL/NEC, CSA: CMR, FT4 (only cable without plug)
UV Radiation Resistance Resistant
China RoHS Manufacturer Declaration

Selection Notes

Over 20 m the same LMR-300 core used on the 10 m version brings total attenuation to about 4 dB - double the 10 m run's loss but still less per meter than LMR-195 would add at this distance, which is why the line stays on LMR-300 rather than stepping down. Beyond this length the RF600 line moves to LMR-400 (used on the 40 m version) to hold attenuation down further. Both ends terminate RP-TNC, matching the RF600 reader and antenna connectors directly.

Technical Details

Short Description
SIMATIC RF600 antenna connecting cable, RP-TNC to RP-TNC, 20 m, LMR-300, 50 ohm.
Rated Voltage (VAC)
2000 V
Catalog No
6GT2815-0BN20
Delivery Date (Days)
10-15 days
Model Number
6GT2815-0BN20
Tariff Code
85442000
