Siemens 6GT2815-0BH30 SIMATIC RF600 Antenna Connecting Cable RP-TNC 3 m LMR-195 RFID Cable

% $-74.65

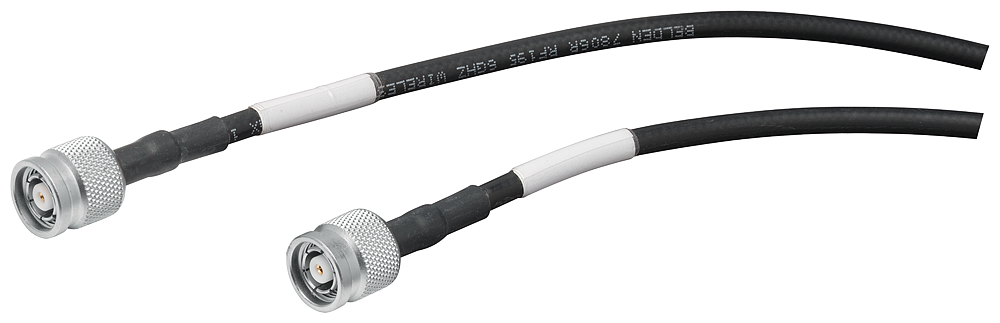

Siemens 6GT2815-0BH30 SIMATIC RF600 antenna connecting cable - RP-TNC, 3 m, LMR-195
Siemens 6GT2815-0BH30 SIMATIC RF600 antenna connecting cable - RP-TNC, 3 m, LMR-195

Siemens 6GT2815-0BH30 SIMATIC RF600 Antenna Connecting Cable RP-TNC 3 m LMR-195 RFID Cable

Brand: Siemens
Reference No: 6GT2815-0BH30
Catalog No: 6GT2815-0BH30
Series: SIMATIC RF600
Tariff Code (HS): 85442000
Rated Voltage: 1000 V
Communication: RP-TNC, 50 ohm coax
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$74.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6GT2815-0BH30 is a 3 m pre-assembled SIMATIC RF600 antenna connecting cable, joining an RF600 reader to an antenna with RP-TNC connectors on both ends. Built on LMR-195 coax with 50 ohm impedance and a maximum attenuation of 0.365 dB per meter at 900 MHz, it carries a CMR/FT4 flame rating and operates from -40 to +85 degrees C.

Technical Specifications

SKU 6GT2815-0BH30
Brand Siemens
Series SIMATIC RF600
Country of Origin SK
Product Type Designation Antenna cable for UHF, RP-TNC / RP-TNC
Product Description Coaxial cable
Suitability for Use Plug-in cable for connecting a UHF antenna to an RF600 reader
Cable Designation LMR-195
Wire Length 3 m
Number of Electrical Connections 2
Type of Electrical Connection R-TNC (female, straight) / R-TNC (female, straight)
Attenuation Factor per Length at 900 MHz, Max 0.365 dB/m
Impedance, Rated Value 50 Ω
Loop Resistance per Length, Max 41 mΩ/m
Operating Voltage, Max 1000 V
Design of Shield Braided shield made of tin-plated copper wires
Outer Diameter of Cable Sheath 4.95 mm
Material of Inner Conductor Cu
Material of Dielectric PE
Material of Cable Sheath PE
Color of Cable Sheath Black
Bending Radius, Single Bend, Min 12.7 mm
Bending Radius, Multiple Bends, Min 50.8 mm
Tensile Load, Max 180 N
Weight per Length 30 kg/km
Ambient Temperature, Operation -40 ... +85 °C
Ambient Temperature, Storage -70 ... +85 °C
Ambient Temperature, Transport -40 ... +85 °C
Ambient Temperature, Installation -40 ... +80 °C
Fire Behavior Flame-resistant acc. to UL/NEC, CSA: CMR, FT4 (only cable without plug)
UV Radiation Resistance Resistant
China RoHS Manufacturer Declaration

Selection Notes

At 0.365 dB/m, the 3 m length loses about 1.1 dB before the antenna, more headroom than the 1 m version for mounting the antenna a short distance from the reader while staying on the same thin LMR-195 cable. Past a few meters the loss adds up faster on LMR-195 than on the thicker LMR-300 or LMR-400 cables used at longer lengths in this line, so 3 m is the practical upper bound before switching cable type matters for link budget. Both ends terminate RP-TNC, matching the RF600 reader and antenna connectors directly.

Technical Details

Short Description
SIMATIC RF600 antenna connecting cable, RP-TNC to RP-TNC, 3 m, LMR-195, 50 ohm.
Rated Voltage (VAC)
1000 V
Catalog No
6GT2815-0BH30
Delivery Date (Days)
10-15 days
Model Number
6GT2815-0BH30
Tariff Code
85442000
