- Part number
- 6GT2813-1FA00
- Model no
- UHF module RF660H ETSI SIMATIC RF660H ETSI UHF RFID reader module; only to be operated with basic device RF160B (6GT2003-0FA00); for Europe (ETSI).

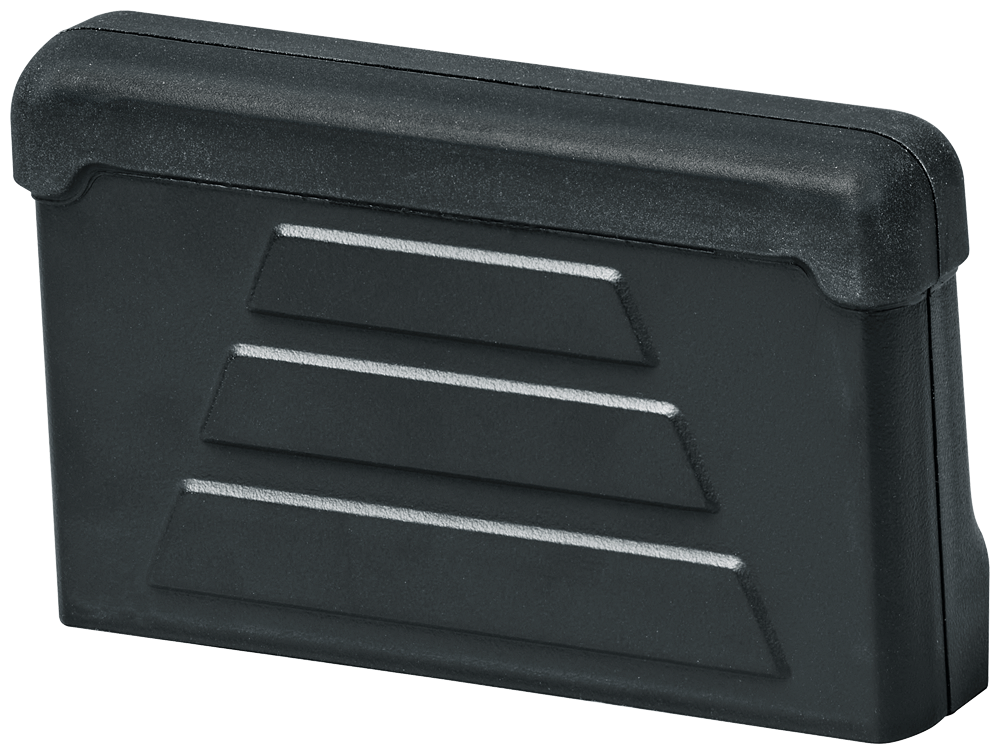

Siemens 6GT2813-1FA00 SIMATIC RF660H ETSI UHF Reader Module 865-868 MHz RFID Reader
SIMATIC RF660H ETSI UHF reader module, 865-868 MHz, 1300 mm range, for use with RF160B basic device.
Description
About the UHF module RF660H ETSI SIMATIC RF660H ETSI UHF RFID reader module; only to be operated with basic device RF160B (6GT2003-0FA00); for Europe (ETSI).
About the UHF module RF660H ETSI SIMATIC RF660H ETSI UHF RFID reader module; only to be operated with basic device RF160B (6GT2003-0FA00); for Europe (ETSI).
The Siemens 6GT2813-1FA00 is a SIMATIC RF660H ETSI UHF RFID reader module operating in the 865 to 868 MHz band with a read range up to 1300 mm, and it must be paired with an RF160B basic device since it draws power and control through that unit rather than operating standalone. It supports EPCglobal Class 1 Gen 2 / ISO 18000-63 at up to 400 kbit/s.
Selection Notes
This is the ETSI-band reader head for the SIMATIC RF160B basic device, covering 865 to 868 MHz for European operation; it is not interchangeable with FCC-band variants built for the 902 to 928 MHz US allocation. Because it takes power and control system-internally from RF160B, it cannot be ordered as a standalone reader - the basic device is a required companion part, not an accessory. The 400 kbit/s multitag-capable link supports reading multiple transponders in the 1300 mm field at once, relevant for gate or portal reading rather than single-tag point checks.
Specification
Full specification
General 4
| product type designation | UHF module RF660H ETSI SIMATIC RF660H ETSI UHF RFID reader module; only to be operated with basic device RF160B (6GT2003-0FA00); for Europe (ETSI). |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | RF600 transponder; only to be operated with RF160B |
| range | 1300 mm |
Radio frequencies 2
| operating frequency | 865 ... 868 MHz |
|---|---|
| equivalent isotropically radiated power | 9 ... 400 mW |
Electrical data 4
| protocol / with radio transmission | EPCglobal Class 1 Gen 2 / ISO 18000-63 |
|---|---|
| transfer rate / with radio transmission / maximum | 400 kbit/s |
| product feature / multitag-capable | Yes |
| polarization | Linear |
Show all 39 specifications ↓ Show less ↑29 more values in Identification, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Accessories, Logistics.
Identification 10
| Part number | 6GT2813-1FA00 |
|---|---|
| Type designation | UHF module RF660H ETSI SIMATIC RF660H ETSI UHF RFID reader module; only to be operated with basic device RF160B (6GT2003-0FA00); for Europe (ETSI). |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106026769 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Supply voltage, current consumption, power loss 2
| type of current supply | via RF160B basic device |
|---|---|
| type of battery | -- |
Ambient conditions 4
| ambient temperature: during operation | -20 ... +50 °C |
|---|---|
| ambient temperature: during storage | -20 ... +60 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 90 % |
| protection class IP | IP65 |
Design, dimensions and weights 3
| width | 85 mm |
|---|---|
| height | 52 mm |
| depth | 27 mm |
Product features, product functions, product components / general 1
| design of the interface | system internal to RF 160B |
|---|
Standards, specifications, approvals 1
| certificate of suitability | EMC: EN301 489, EN55032 security: EN 62368-1 RF: EN 302 208 |
|---|
Accessories 1
| accessories | SIMATIC RF RF160B basic device |
|---|
Logistics 7
| Net weight | 0.06 kg |
|---|---|
| Package dimensions | 230 × 150 × 63 mm |
| Country of origin | DE |
| Shipping weight | 0.56 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2813-1FA00
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the UHF module RF660H ETSI SIMATIC RF660H ETSI UHF RFID reader module; only to be operated with basic device RF160B (6GT2003-0FA00); for Europe (ETSI).
What is the HS code of UHF module RF660H ETSI SIMATIC RF660H ETSI UHF RFID reader module; only to be operated with basic device RF160B (6GT2003-0FA00); for Europe (ETSI). for customs?
The tariff (HS) code on file for UHF module RF660H ETSI SIMATIC RF660H ETSI UHF RFID reader module; only to be operated with basic device RF160B (6GT2003-0FA00); for Europe (ETSI). is 84733020.
What is the EAN of UHF module RF660H ETSI SIMATIC RF660H ETSI UHF RFID reader module; only to be operated with basic device RF160B (6GT2003-0FA00); for Europe (ETSI).?
The EAN (GTIN) of UHF module RF660H ETSI SIMATIC RF660H ETSI UHF RFID reader module; only to be operated with basic device RF160B (6GT2003-0FA00); for Europe (ETSI). is 4034106026769.
Where does UHF module RF660H ETSI SIMATIC RF660H ETSI UHF RFID reader module; only to be operated with basic device RF160B (6GT2003-0FA00); for Europe (ETSI). ship from, and how fast?
UHF module RF660H ETSI SIMATIC RF660H ETSI UHF RFID reader module; only to be operated with basic device RF160B (6GT2003-0FA00); for Europe (ETSI). ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
