- 6GT2811-7AD20-0AA0
Siemens has announced the end of 6GT2811-7AD20-0AA0
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

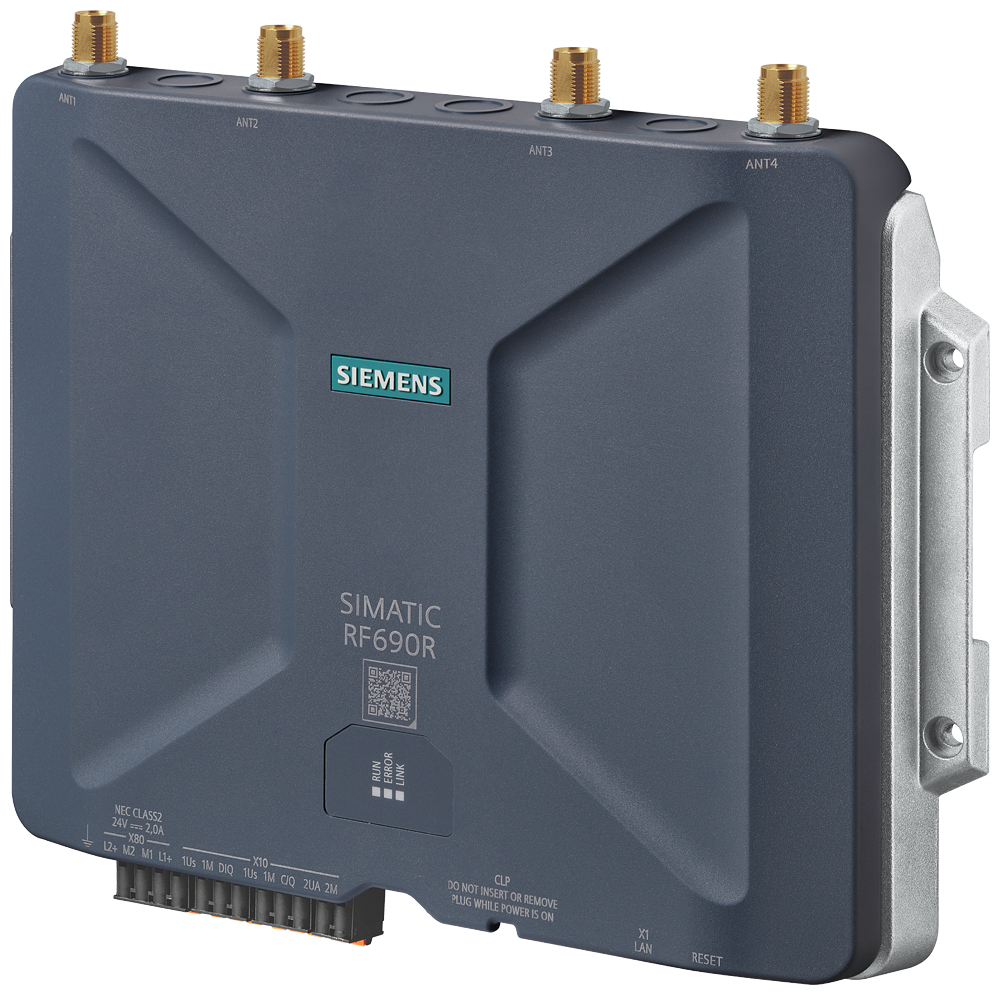

Siemens 6GT2811-7AD20-0AA0 SIMATIC RF690 RF690R ETSI 4-Antenna Ethernet PoE RFID Reader
Siemens RF690R ETSI high-throughput UHF RFID reader, 4 antennas, Ethernet PoE.
Description
About the 6GT2811-7AD20-0AA0
About the 6GT2811-7AD20-0AA0
The Siemens 6GT2811-7AD20-0AA0 is a SIMATIC RF690R ETSI UHF RFID reader built for high-throughput goods-flow tracking, with four external antenna ports, Ethernet with PoE, an OPC UA server and an IP33 housing, covering the 865 to 868 MHz band. It runs from 24 V DC drawing up to 2 A, and reaches a 640 kbit/s radio transfer rate for fast tunnel and dock-door reads.
Certifications & Standards
- EPD
Selection Notes
The RF690R's 640 kbit/s radio transfer rate and 2000 mW per-antenna output exceed the PROFINET-family readers, which top out at 400 kbit/s, making it the fit for high-speed conveyor or dock-door reads with many tags passing at once. It only exposes Ethernet, OPC UA and XML rather than PROFINET, so pick it for IT-side integration; where a PROFINET PLC needs direct cyclic I/O to the reader, the PROFINET-capable readers in the family are the better match.
Specification
Full specification
General 2
| product brand name | SIMATIC RF |
|---|---|
| suitability for operation | RFID high-performance reader for use in the warehouse environment for recording high flows of goods. |
Radio frequencies 7
| operating frequency | 865 ... 868 MHz |
|---|---|
| transmit power | 3 ... 2000 mW |
| effective radiated power: for each external antenna / maximum | 2000 mW |
| equivalent isotropically radiated power: for each external antenna / maximum | 4000 mW |
| protocol / with radio transmission | EPCglobal Class 1 Gen 2 V2 / ISO/IEC 18000-62 |
| transfer rate / with radio transmission / maximum | 640 kbit/s |
| product feature / multitag-capable | Yes |
Interfaces 7
| number of external antennas | 4 |
|---|---|
| standard for interfaces / for communication | Ethernet, OPC UA, XML |
| type of electrical connection: for external antenna(s) | RP-TNC |
| type of electrical connection: for supply voltage | terminal block, 4-pole |
| type of electrical connection: at the digital inputs/outputs | RJ45 connector (8-pole) |
| number of digital inputs | 1 |
| number of digital outputs | 1 |
Show all 80 specifications ↓ Show less ↑64 more values in Identification, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Accessories, General Product Approval, Logistics.
Identification 9
| Part number | 6GT2811-7AD20-0AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047623155690 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Mechanical data 3
| material | Lexan |
|---|---|
| color | silver, TI-Grey |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 4
| supply voltage / at DC: rated value | 24 V |
|---|---|
| supply voltage / at DC: ● | 20 ... 30 V |
| consumed current / at DC: at 24 V / typical | 2 A |
| consumed current / at DC: at 24 V / maximum | 2 A |
Ambient conditions 9
| ambient temperature: during operation | -25 ... +55 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient condition / for operation | With operating temperature below -20 °C: Warming-up time at least 10 minutes |
| protection class IP | IP33 |
| shock resistance | EN 60068-2-27, EN 60068-2-6 |
| shock acceleration | 250 m/s2 |
| vibrational acceleration | 30 m/s2 |
| resistance to mechanical stress | The maximum values for shock and vibration acceleration must not occur as continuous stress and they apply exclusively to assembly using screws |
Design, dimensions and weights 6
| width | 245 mm |
|---|---|
| height | 209 mm |
| depth | 41 mm |
| fastening method | Vesa 100 with 4 screws, DIN rail, mounting hole 4 x M4 screws |
| wire length: of antenna cable / minimum | 1 m |
| wire length: of antenna cable / maximum | 40 m |
Product features, product functions, product components / general 13
| display version | 3 LEDs |
|---|---|
| protocol / is supported / Media Redundancy Protocol (MRP) | No |
| product function / of the PROFINET IO device / is supported / H-Sync forwarding | No |
| protocol / is supported: LLDP | No |
| protocol / is supported: PROFINET IO protocol | No |
| protocol / is supported: TCP/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | No |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: EtherNet/IP protocol | No |
| protocol / is supported: OPC UA | Yes |
| product feature / silicon-free | Yes |
Product functions / management, configuration, engineering 3
| type of parameterization | WBM |
|---|---|
| type of programming | OPC UA, XML |
| type of computer-switched communication | TCP/IP |
Standards, specifications, approvals 3
| certificate of suitability | wireless according to RED directive, CE, IEC 60950, OPC UA: embedded UA Server Profile |
|---|---|
| certificate of suitability: IECEx | No |
| MTBF | 28 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 289.45 kg |
| global warming potential [CO2 eq]: during manufacturing | 40 kg |
| global warming potential [CO2 eq]: during operation | 249 kg |
| global warming potential [CO2 eq]: after end of life | 0.45 kg |
Accessories 1
| accessories | up to 4 external antennas, set for mounting on top-hat rail or profile rail |
|---|
General Product Approval 1
| China RoHS TUEV Type Examination Cer-Radio Equipment | tificate |
|---|
Logistics 7
| Net weight | 0.2 kg |
|---|---|
| Package dimensions | 80 × 258 × 258 mm |
| Country of origin | DE |
| Shipping weight | 0.7 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2811-7AD20-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the 6GT2811-7AD20-0AA0
Which supply voltage is 6GT2811-7AD20-0AA0 rated for?
The rated operational voltage of 6GT2811-7AD20-0AA0 is 24 V AC.
What is the HS code of 6GT2811-7AD20-0AA0 for customs?
The tariff (HS) code on file for 6GT2811-7AD20-0AA0 is 85176200.
What is the EAN of 6GT2811-7AD20-0AA0?
The EAN (GTIN) of 6GT2811-7AD20-0AA0 is 4047623155690.
Where does 6GT2811-7AD20-0AA0 ship from, and how fast?
6GT2811-7AD20-0AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
