- Part number
- 6GT2811-6BC10-0AA0
- Model no
- Reader RF610R ETSI SIMATIC RF600 Reader RF610R ETSI; Interfaces: 1 Ethernet / PROFINET M12; 1 integrated antenna; 24 V DC; IP67;-25 to +55 °C without accessories.
Siemens has announced the end of 6GT2811-6BC10-0AA0
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

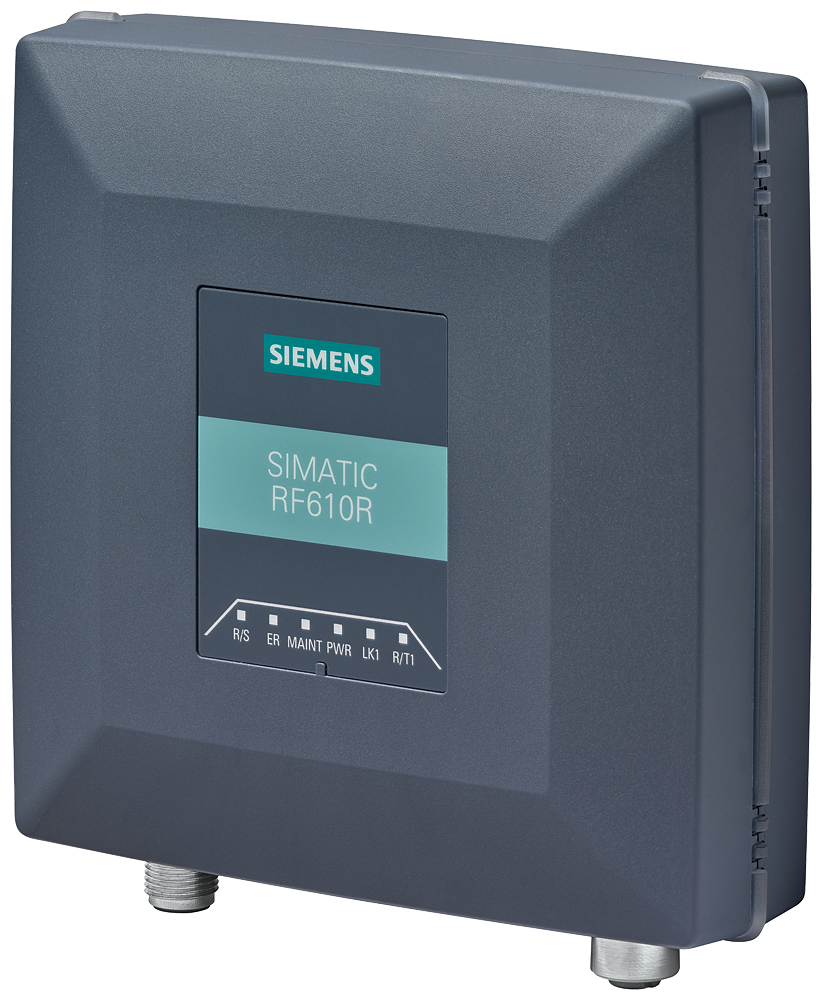

Siemens 6GT2811-6BC10-0AA0 SIMATIC RF610 RF610R ETSI Compact PROFINET RFID Reader
Siemens RF610R ETSI compact UHF RFID reader, integrated antenna, PROFINET, IP67.
Description
About the Reader RF610R ETSI SIMATIC RF600 Reader RF610R ETSI; Interfaces: 1 Ethernet / PROFINET M12; 1 integrated antenna; 24 V DC; IP67;-25 to +55 °C without accessories.
About the Reader RF610R ETSI SIMATIC RF600 Reader RF610R ETSI; Interfaces: 1 Ethernet / PROFINET M12; 1 integrated antenna; 24 V DC; IP67;-25 to +55 °C without accessories.
The Siemens 6GT2811-6BC10-0AA0 is a SIMATIC RF610R ETSI UHF RFID reader with one integrated antenna, PROFINET/Ethernet/OPC UA connectivity and an IP67 housing, built for the 865 to 868 MHz ETSI band. It runs from 24 V DC drawing 0.2 A typical, and its compact 133 x 133 x 45 mm body targets single-antenna read points where a separate external antenna is not needed.
Certifications & Standards
- EPD
Selection Notes
With its antenna built in, the RF610R skips the RP-TNC cabling and separate antenna mounting a multi-port reader in the family needs, which shortens installation at a single fixed read point such as a conveyor gate or a single-lane door. The IP67 rating suits washdown or dusty environments better than the IP65 rating on the larger multi-antenna readers, and the 133 x 133 mm footprint fits mounting locations too tight for a full antenna array.
Specification
Full specification
General 3
| product type designation | Reader RF610R ETSI SIMATIC RF600 Reader RF610R ETSI; Interfaces: 1 Ethernet / PROFINET M12; 1 integrated antenna; 24 V DC; IP67;-25 to +55 °C without accessories. |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | RF600 Transponder, for direct connection to Ethernet, PROFINET, EtherNet/IP or PROFIBUS via communication module, OPC UA server integrated |
Radio frequencies 7
| operating frequency | 865 ... 868 MHz |
|---|---|
| effective radiated power: minimum | 10 mW |
| effective radiated power: maximum | 200 mW |
| protocol / with radio transmission | EPCglobal Class 1 Gen 2 V2 / ISO/IEC 18000-62/-63 |
| transfer rate / with radio transmission / maximum | 400 kbit/s |
| product feature / multitag-capable | Yes |
| polarization | circular |
Electrical data 2
| transmission time / for user data: for write access / per byte / typical | 2 ms |
|---|---|
| transmission time / for user data: for read access / per byte / typical | 0.15 ms |
Show all 81 specifications ↓ Show less ↑69 more values in Identification, Interfaces, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2811-6BC10-0AA0 |
|---|---|
| Type designation | Reader RF610R ETSI SIMATIC RF600 Reader RF610R ETSI; Interfaces: 1 Ethernet / PROFINET M12; 1 integrated antenna; 24 V DC; IP67;-25 to +55 °C without accessories. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622678053 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Interfaces 3
| standard for interfaces / for communication | Ethernet, PROFINET, OPC UA, EtherNet/IP, RS422 |
|---|---|
| type of electrical connection: for supply voltage | M12, 8-pin, connector |
| type of electrical connection: for communications interface | M12, 4-pin, d-coded |
Mechanical data 3
| material | Pocan |
|---|---|
| color | silver, TI-Grey |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 4
| supply voltage / at DC: rated value | 24 V |
|---|---|
| supply voltage / at DC: ● | 20 ... 30 V |
| consumed current / at DC: at 24 V / typical | 0.2 A |
| consumed current / at DC: at 24 V / maximum | 0.22 A |
Ambient conditions 9
| ambient temperature: during operation | -25 ... +55 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient condition / for operation | With operating temperature below -20 °C: Warming-up time at least 10 minutes |
| protection class IP | IP67 |
| shock resistance | EN 60068-2-27, EN 60068-2-6 |
| shock acceleration | 250 m/s2 |
| vibrational acceleration | 30 m/s2 |
| resistance to mechanical stress | The maximum values for shock and vibration acceleration must not occur as continuous stress and they apply exclusively to assembly using screws |
Design, dimensions and weights 6
| width | 133 mm |
|---|---|
| height | 133 mm |
| depth | 45 mm |
| fastening method | Vesa 100 with 4 x M4 screws |
| wire length: of antenna cable / minimum | 1 m |
| wire length: of antenna cable / maximum | 40 m |
Product features, product functions, product components / general 13
| display version | LED bars with 6 LED and 1 circulating LED |
|---|---|
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| product function / of the PROFINET IO device / is supported / H-Sync forwarding | No |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: PROFINET IO protocol | Yes |
| protocol / is supported: TCP/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | No |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: EtherNet/IP protocol | Yes |
| protocol / is supported: OPC UA | Yes |
| product feature / silicon-free | Yes |
Product functions / management, configuration, engineering 3
| type of parameterization | HSP, GSDML, EDS, TO, WBM |
|---|---|
| type of programming | Ident profile, library with functions, OPC UA, XML |
| type of computer-switched communication | acyclic communication, TCP/IP |
Standards, specifications, approvals 4
| certificate of suitability | wireless according to RED directive, CE, IEC 62368, OPC UA: embedded UA Server Profile |
|---|---|
| certificate of suitability: IECEx | No |
| MTBF | 29 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 204.34 kg |
| global warming potential [CO2 eq]: during manufacturing | 71.5 kg |
| global warming potential [CO2 eq]: during operation | 131.97 kg |
| global warming potential [CO2 eq]: after end of life | 0.87 kg |
General Product Approval 2
| China RoHS Declaration of Con- | formity Radio Equipment |
|---|---|
| General Product Approval EMV Type Approval Certi- Environment | ficate |
Logistics 7
| Net weight | 0.5 kg |
|---|---|
| Package dimensions | 45 × 133 × 133 mm |
| Country of origin | DE |
| Shipping weight | 1.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
