- Part number
- 6GT2811-6AA10-0AA0
- Model no
- Reader RF680R ETSI SIMATIC RF600 Reader RF680R ETSI; Interface Ethernet M12, PROFINET M12, 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP65; -25 to +55 °C; without accessories and antennas.
Siemens has announced the end of 6GT2811-6AA10-0AA0
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

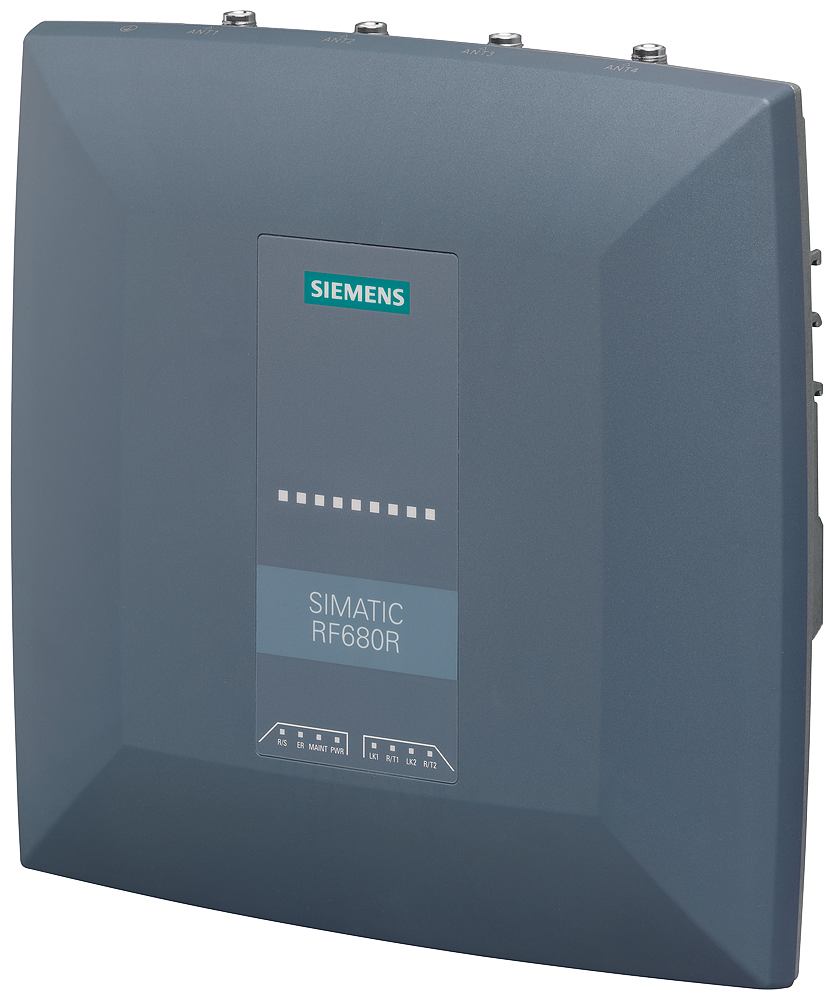

Siemens 6GT2811-6AA10-0AA0 SIMATIC RF680 RF680R ETSI 4-Antenna PROFINET RFID Reader
Siemens RF680R ETSI UHF RFID reader, 4 antennas, PROFINET/OPC UA, 24V DC, IP65.
Description
About the Reader RF680R ETSI SIMATIC RF600 Reader RF680R ETSI; Interface Ethernet M12, PROFINET M12, 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP65; -25 to +55 °C; without accessories and antennas.
About the Reader RF680R ETSI SIMATIC RF600 Reader RF680R ETSI; Interface Ethernet M12, PROFINET M12, 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP65; -25 to +55 °C; without accessories and antennas.
The Siemens 6GT2811-6AA10-0AA0 is a SIMATIC RF680R ETSI UHF RFID reader with four external antenna ports, an integrated OPC UA server and PROFINET/Ethernet/EtherNet-IP connectivity, covering the 865 to 868 MHz band with an IP65 housing. It runs from 24 V DC, switches four digital inputs and four digital outputs directly, and supports Media Redundancy Protocol for ring-topology networks.
Certifications & Standards
- EPD
Selection Notes
The RF680R's four antenna ports and 2000 mW maximum transmit power make it the choice for read zones covering multiple portal sides at once, where a single- or dual-antenna reader in the same family would need extra hardware to get the same coverage. Its four digital inputs and outputs let it trigger a light stack or gate directly from a tag event without routing that signal through a PLC first, and the onboard OPC UA server exposes tag reads to a SCADA or MES system without a separate protocol gateway.
Specification
Full specification
General 3
| product type designation | Reader RF680R ETSI SIMATIC RF600 Reader RF680R ETSI; Interface Ethernet M12, PROFINET M12, 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP65; -25 to +55 °C; without accessories and antennas. |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | RF600 Transponder, for direct connection to Ethernet, PROFINET, EtherNet/IP or PROFIBUS via communication module, OPC UA server integrated |
Radio frequencies 6
| operating frequency | 865 ... 868 MHz |
|---|---|
| transmit power | 3 ... 2000 mW |
| effective radiated power: for each external antenna / maximum | 2000 mW |
| protocol / with radio transmission | EPCglobal Class 1 Gen 2 V2 / ISO/IEC 18000-62/-63 |
| transfer rate / with radio transmission / maximum | 400 kbit/s |
| product feature / multitag-capable | Yes |
Electrical data 2
| transmission time / for user data: for write access / per byte / typical | 2 ms |
|---|---|
| transmission time / for user data: for read access / per byte / typical | 0.15 ms |
Show all 86 specifications ↓ Show less ↑75 more values in Identification, Interfaces, Mechanical data, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Accessories, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2811-6AA10-0AA0 |
|---|---|
| Type designation | Reader RF680R ETSI SIMATIC RF600 Reader RF680R ETSI; Interface Ethernet M12, PROFINET M12, 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP65; -25 to +55 °C; without accessories and antennas. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622103753 |
| ETIM class | EC002998 |
| eCl@ss | 27280401 |
Interfaces 8
| number of external antennas | 4 |
|---|---|
| standard for interfaces / for communication | Ethernet, PROFINET, OPC UA, EtherNet/IP, RS422 |
| type of electrical connection: for external antenna(s) | RP-TNC |
| type of electrical connection: for supply voltage | M12, 8-pin, connector |
| type of electrical connection: for communications interface | 2 x M12 4-pin D-coded, M12 8-pin (RS422) |
| type of electrical connection: at the digital inputs/outputs | M12, 12-pin, female connector |
| number of digital inputs | 4 |
| number of digital outputs | 4 |
Mechanical data 3
| material | Aluminum, Pocan |
|---|---|
| color | silver, TI-Grey |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Supply voltage, current consumption, power loss 4
| supply voltage / at DC: rated value | 24 V |
|---|---|
| supply voltage / at DC: ● | 20 ... 30 V |
| consumed current / at DC: at 24 V / typical | 0.38 A |
| consumed current / at DC: at 24 V / maximum | 2 A |
Ambient conditions 9
| ambient temperature: during operation | -25 ... +55 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient condition / for operation | With operating temperature below -20 °C: Warming-up time at least 10 minutes |
| protection class IP | IP65 |
| shock resistance | EN 60068-2-27, EN 60068-2-6 |
| shock acceleration | 250 m/s2 |
| vibrational acceleration | 30 m/s2 |
| resistance to mechanical stress | The maximum values for shock and vibration acceleration must not occur as continuous stress and they apply exclusively to assembly using screws |
Design, dimensions and weights 6
| width | 258 mm |
|---|---|
| height | 258 mm |
| depth | 80 mm |
| fastening method | Vesa 100 with 4 x M4 screws, top-hat rail 35 mm, profile rail S7-300, S7-1200 or S7-1500 |
| wire length: of antenna cable / minimum | 1 m |
| wire length: of antenna cable / maximum | 40 m |
Product features, product functions, product components / general 13
| display version | two LED rows with 8 and 9 LEDs |
|---|---|
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| product function / of the PROFINET IO device / is supported / H-Sync forwarding | No |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: PROFINET IO protocol | Yes |
| protocol / is supported: TCP/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | No |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: EtherNet/IP protocol | Yes |
| protocol / is supported: OPC UA | Yes |
| product feature / silicon-free | Yes |
Product functions / management, configuration, engineering 3
| type of parameterization | HSP, GSDML, EDS, TO, WBM |
|---|---|
| type of programming | Ident profile, library with functions, OPC UA, XML |
| type of computer-switched communication | acyclic communication, TCP/IP |
Standards, specifications, approvals 4
| certificate of suitability | wireless according to RED directive, CE, IEC 60950, OPC UA: embedded UA Server Profile |
|---|---|
| certificate of suitability: IECEx | No |
| MTBF | 28 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 321.37 kg |
| global warming potential [CO2 eq]: during manufacturing | 71.5 kg |
| global warming potential [CO2 eq]: during operation | 249 kg |
| global warming potential [CO2 eq]: after end of life | 0.87 kg |
Accessories 1
| accessories | up to 4 external antennas, set for mounting on top-hat rail or profile rail |
|---|
General Product Approval 2
| China RoHS Manufacturer Declara- | tion Radio Equipment |
|---|---|
| General Product Approval EMV Type Approval Certi- | ficate |
Logistics 7
| Net weight | 3.262 kg |
|---|---|
| Package dimensions | 45 × 133 × 133 mm |
| Country of origin | DE |
| Shipping weight | 3.762 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2811-6AA10-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the Reader RF680R ETSI SIMATIC RF600 Reader RF680R ETSI; Interface Ethernet M12, PROFINET M12, 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP65; -25 to +55 °C; without accessories and antennas.
Which supply voltage is Reader RF680R ETSI SIMATIC RF600 Reader RF680R ETSI; Interface Ethernet M12, PROFINET M12, 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP65; -25 to +55 °C; without accessories and antennas. rated for?
The rated operational voltage of Reader RF680R ETSI SIMATIC RF600 Reader RF680R ETSI; Interface Ethernet M12, PROFINET M12, 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP65; -25 to +55 °C; without accessories and antennas. is 24 V AC.
What is the HS code of Reader RF680R ETSI SIMATIC RF600 Reader RF680R ETSI; Interface Ethernet M12, PROFINET M12, 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP65; -25 to +55 °C; without accessories and antennas. for customs?
The tariff (HS) code on file for Reader RF680R ETSI SIMATIC RF600 Reader RF680R ETSI; Interface Ethernet M12, PROFINET M12, 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP65; -25 to +55 °C; without accessories and antennas. is 85176200.
What is the EAN of Reader RF680R ETSI SIMATIC RF600 Reader RF680R ETSI; Interface Ethernet M12, PROFINET M12, 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP65; -25 to +55 °C; without accessories and antennas.?
The EAN (GTIN) of Reader RF680R ETSI SIMATIC RF600 Reader RF680R ETSI; Interface Ethernet M12, PROFINET M12, 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP65; -25 to +55 °C; without accessories and antennas. is 4047622103753.
Where does Reader RF680R ETSI SIMATIC RF600 Reader RF680R ETSI; Interface Ethernet M12, PROFINET M12, 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP65; -25 to +55 °C; without accessories and antennas. ship from, and how fast?
Reader RF680R ETSI SIMATIC RF600 Reader RF680R ETSI; Interface Ethernet M12, PROFINET M12, 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP65; -25 to +55 °C; without accessories and antennas. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
