- Part number
- 6GT2810-3HG80

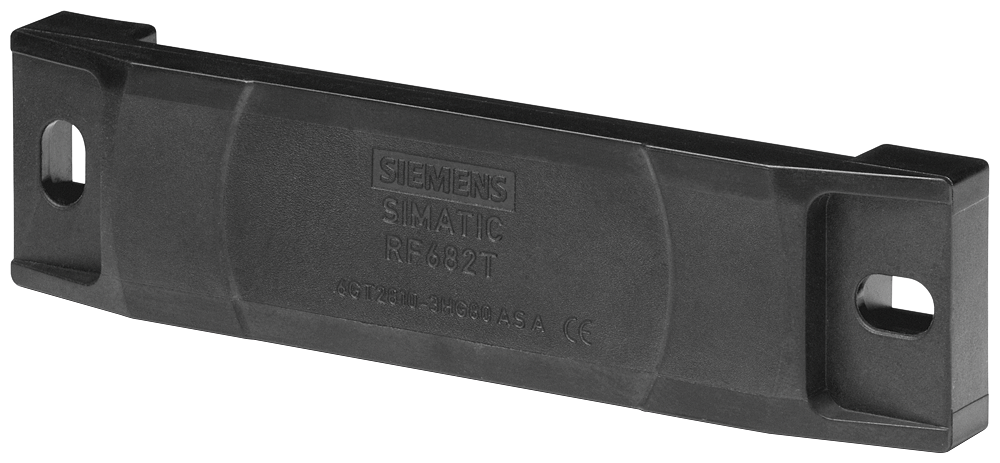

Siemens 6GT2810-3HG80 SIMATIC RF682 RF682T PPS Heat-Resistant Mount-on-Metal UHF RFID Transponder
Siemens RF682T PPS heat-resistant UHF RFID tag, 865-928 MHz, -40 to 200C, IP68/IPx9K.
Description
About the 6GT2810-3HG80
About the 6GT2810-3HG80
The Siemens 6GT2810-3HG80 is a SIMATIC RF682T UHF RFID transponder in a PPS housing rated for heat-resistant, mount-on-metal use, covering the 865 to 928 MHz band with a 3072-bit (384-byte) user memory. Measuring 130 x 32 x 15 mm, it carries an IP68/IPx9K rating and operates from -40 degrees C up to +200 degrees C, well beyond standard-plastic tag limits.
Selection Notes
Choose the 6GT2810-3HG80 over a standard PP-bodied transponder when the asset sees process heat up to 200 degrees C or washdown and pressure-spray cleaning cycles - the PPS housing and IP68/IPx9K rating are built for that duty, where a typical polypropylene tag and an IP67 rating would not hold up. Its 224-bit EPC field is smaller than higher-memory family members, so it suits straightforward serialization rather than storing an extended data record on the tag itself.
Specification
Full specification
| Part number | 6GT2810-3HG80 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4047618084004 |
| Communication | EPCglobal Class 1 Gen 2 / ISO 18000-63 |
|---|---|
| Protection type | IP68 |
| Shipping weight | 0.55 kg |
|---|---|
| Mounting | Direct Mount |
| HS code | 85235200 |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
| Series | SIMATIC RF682 (RF600) |
|---|---|
| Product Type Designation | RF682T heat-resistant transponder |
| Housing Material | PPS |
| Operating Frequency | 865 to 928 MHz |
| Transponder Chip | NXP UCODE DNA |
| EPC Memory | 224 bit (28 byte) |
| User Memory | 3072 bit (384 byte) |
| Mounting | Direct mount-on-metal |
| Marking | Heat-resistant surface, printing not possible |
| Dimensions (L x W x H) | 130 x 32 x 15 mm |
| Net Weight | 50 g |
| Ambient Temperature | -40 to +200C |
| Protection Class | IP68 / IPx9K |
| Packaging | 10 units/carton, 10-unit MOQ |
| Country of Origin | Germany |
From the manufacturer description; the values above take precedence.
Documents
Documents for 6GT2810-3HG80
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6GT2810-3HG80
What is the HS code of 6GT2810-3HG80 for customs?
The tariff (HS) code on file for 6GT2810-3HG80 is 85235200.
What is the EAN of 6GT2810-3HG80?
The EAN (GTIN) of 6GT2810-3HG80 is 4047618084004.
Where does 6GT2810-3HG80 ship from, and how fast?
6GT2810-3HG80 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
