- Part number
- 6GT2810-3HC80
- Model no
- RF620T transponder SIMATIC RF620T PP, 127 x 38 x 6 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal laser inscription possible temperature from -40 °C to +85 °C IP67 20 units/carton 1 carton 20 units MOQ

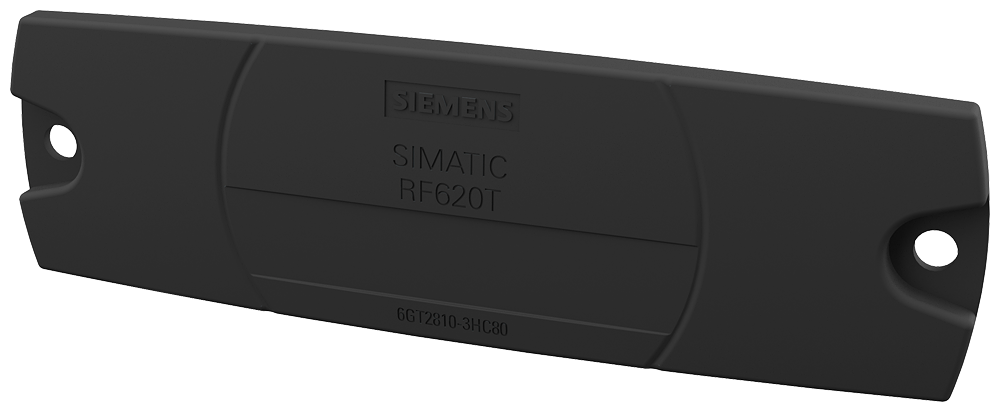

Siemens 6GT2810-3HC80 SIMATIC RF620 RF620T Mount-on-Metal UHF RFID Transponder
Siemens RF620T UHF RFID tag, mount-on-metal, 860-960 MHz, IP67, 256-byte memory, NXP UCODE 7xm-2K.
Description
About the RF620T transponder SIMATIC RF620T PP, 127 x 38 x 6 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal laser inscription possible temperature from -40 °C to +85 °C IP67 20 units/carton 1 carton 20 units MOQ
About the RF620T transponder SIMATIC RF620T PP, 127 x 38 x 6 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal laser inscription possible temperature from -40 °C to +85 °C IP67 20 units/carton 1 carton 20 units MOQ
The Siemens 6GT2810-3HC80 is a SIMATIC RF620T UHF RFID transponder for mount-on-metal applications, built for the 860 to 960 MHz frequency range with a 256-byte user memory. Measuring 127 x 38 x 6 mm with IP67 sealing, it withstands storage and read/write temperatures down to -40 degrees C and operates on metallic asset surfaces where standard tags would detune.
Selection Notes
The 6GT2810-3HC80 is built for direct attachment to metal, so it skips the mounting standoff a standard UHF tag needs to avoid detuning near conductive surfaces. Its 12 mm minimum mounting distance figure applies to nearby metal beyond the tag body itself, not the mounting surface. With a 256-byte user memory and an EPC field expandable to 448 bit, it can hold more than a serial number, such as a short asset record, which is useful when a reader cannot always reach the host system for a lookup. Laser inscription on the tag body gives a human-readable backup identifier alongside the RF data.
Specification
Full specification
General 3
| product type designation | RF620T transponder SIMATIC RF620T PP, 127 x 38 x 6 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal laser inscription possible temperature from -40 °C to +85 °C IP67 20 units/carton 1 carton 20 units MOQ |
|---|---|
| suitability for operation | RF600 |
| product brand name | SIMATIC RF |
Radio frequencies 5
| operating frequency | 860 ... 960 MHz |
|---|---|
| protocol / with radio transmission | EPCglobal Class 1 Gen 2 / ISO 18000-63 |
| transfer rate / with radio transmission / maximum | 320 kbit/s |
| product feature / multitag-capable | Yes |
| polarization | Linear |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 56 specifications ↓ Show less ↑47 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Accessories, Logistics.
Identification 10
| Part number | 6GT2810-3HC80 |
|---|---|
| Type designation | RF620T transponder SIMATIC RF620T PP, 127 x 38 x 6 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal laser inscription possible temperature from -40 °C to +85 °C IP67 20 units/carton 1 carton 20 units MOQ |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106026882 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | EEPROM |
|---|---|
| storage capacity / of the user memory | 256 byte |
| type of memory organization | EPC memory 96 bit (12 byte) assigned with sequential identifier and expandable up to 448 bit (56 byte), user memory 2048 bit (256 byte), TID memory 96 bit (12 byte) |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 50 a |
| property of memory | lock, unlock, kill, write protection, password protection |
| type of transponder chip used | NXP Ucode 7-xm 2k |
Mechanical data 4
| material | PP (polypropylene) |
|---|---|
| color | anthracite |
| tightening torque / of the screw for securing the equipment / maximum | 1.2 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 12 mm |
Ambient conditions 8
| ambient temperature: during read/write access | -20 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +85 °C |
| ambient temperature: during storage | -20 ... +85 °C |
| protection class IP | IP67 |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 1000 m/s2 |
| vibrational acceleration | 500 m/s2 |
| resistance to mechanical stress | Torsion and bending stress not permissible |
Design, dimensions and weights 5
| width | 127 mm |
|---|---|
| height | 6 mm |
| depth | 38 mm |
| fastening method | 2 M5 screws, spacers (see Accessories) |
| pack type | Rolls with 500 labels for applicator with 3'' core |
Product features, product functions, product components / general 3
| product feature: silicon-free | Yes |
|---|---|
| product feature: printable | Yes |
| printing process | laser, label |
Standards, specifications, approvals 1
| certificate of suitability: IECEx | No |
|---|
Accessories 1
| accessories | Spacers |
|---|
Logistics 7
| Net weight | 0.02 kg |
|---|---|
| Package dimensions | 80 × 258 × 258 mm |
| Country of origin | DE |
| Shipping weight | 0.52 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2810-3HC80
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the RF620T transponder SIMATIC RF620T PP, 127 x 38 x 6 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal laser inscription possible temperature from -40 °C to +85 °C IP67 20 units/carton 1 carton 20 units MOQ
What is the HS code of RF620T transponder SIMATIC RF620T PP, 127 x 38 x 6 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal laser inscription possible temperature from -40 °C to +85 °C IP67 20 units/carton 1 carton 20 units MOQ for customs?
The tariff (HS) code on file for RF620T transponder SIMATIC RF620T PP, 127 x 38 x 6 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal laser inscription possible temperature from -40 °C to +85 °C IP67 20 units/carton 1 carton 20 units MOQ is 85235200.
What is the EAN of RF620T transponder SIMATIC RF620T PP, 127 x 38 x 6 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal laser inscription possible temperature from -40 °C to +85 °C IP67 20 units/carton 1 carton 20 units MOQ?
The EAN (GTIN) of RF620T transponder SIMATIC RF620T PP, 127 x 38 x 6 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal laser inscription possible temperature from -40 °C to +85 °C IP67 20 units/carton 1 carton 20 units MOQ is 4034106026882.
Where does RF620T transponder SIMATIC RF620T PP, 127 x 38 x 6 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal laser inscription possible temperature from -40 °C to +85 °C IP67 20 units/carton 1 carton 20 units MOQ ship from, and how fast?
RF620T transponder SIMATIC RF620T PP, 127 x 38 x 6 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal laser inscription possible temperature from -40 °C to +85 °C IP67 20 units/carton 1 carton 20 units MOQ ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
