- Part number
- 6GT2810-2HC05
- Model no
- Transponder RF645T SIMATIC RF645T ABS 52 x 36 x 12.5 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal printing not possible temperature from -15 °C to +55 °C IP68 20 units/carton 1 carton 20 units MOQ

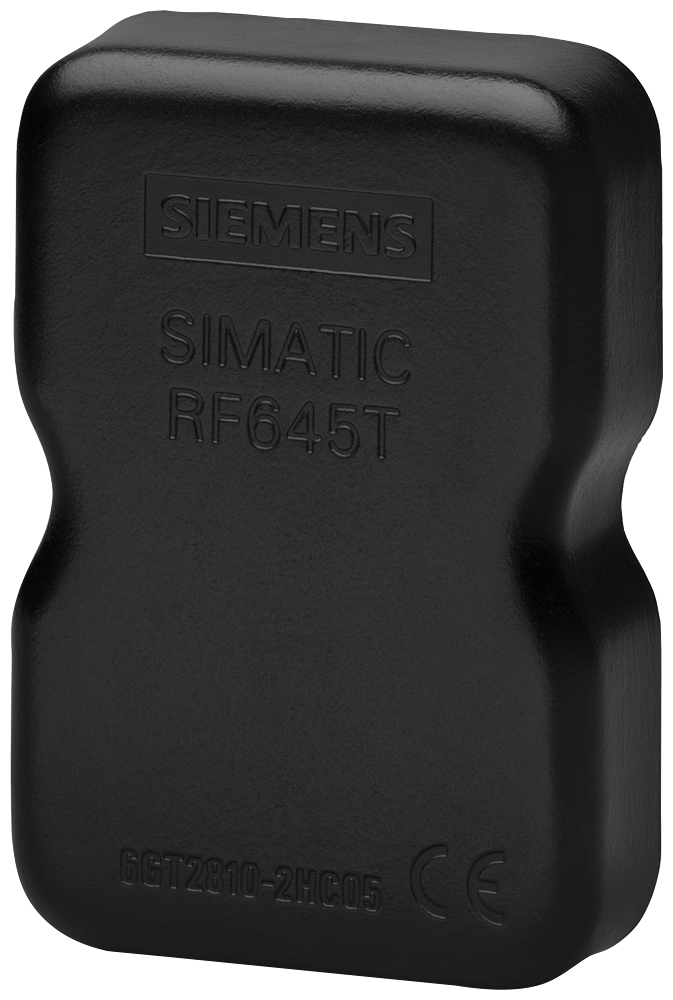

Siemens 6GT2810-2HC05 SIMATIC RF645 RF645T On-Metal UHF Transponder IP68 RFID Transponder
SIMATIC RF645T on-metal UHF RFID transponder, ABS housing, EPC Gen2, 256-byte memory, IP68.
Description
About the Transponder RF645T SIMATIC RF645T ABS 52 x 36 x 12.5 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal printing not possible temperature from -15 °C to +55 °C IP68 20 units/carton 1 carton 20 units MOQ
About the Transponder RF645T SIMATIC RF645T ABS 52 x 36 x 12.5 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal printing not possible temperature from -15 °C to +55 °C IP68 20 units/carton 1 carton 20 units MOQ
The Siemens 6GT2810-2HC05 is a SIMATIC RF645T UHF RFID transponder for on-metal mounting, in a 52 x 36 x 12.5 mm ABS housing. It operates at 865 to 928 MHz per EPCglobal Class 1 Gen 2 / ISO 18000-63, with an NXP Ucode 7-xm 2k chip giving 256 bytes of EEPROM user memory. The IP68-rated housing withstands -40 to +85 degC outside the read/write zone.
Selection Notes
The 256-byte user memory and 448-bit expandable EPC memory match the larger on-metal transponders in the range, giving more room for encoded data than the compact disc-style tags. Fixing is by adhesive or the separate bracket accessory rather than screws, which suits surfaces where drilling is not an option. A 20-year data retention rating, longer than the 10-year rating on the smaller transponders, fits assets that get re-scanned over a long service life without re-encoding.
Specification
Full specification
General 3
| product type designation | Transponder RF645T SIMATIC RF645T ABS 52 x 36 x 12.5 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal printing not possible temperature from -15 °C to +55 °C IP68 20 units/carton 1 carton 20 units MOQ |
|---|---|
| suitability for operation | RF600 |
| product brand name | SIMATIC RF |
Radio frequencies 5
| operating frequency | 865 ... 928 MHz |
|---|---|
| protocol / with radio transmission | EPCglobal Class 1 Gen 2 / ISO 18000-63 |
| transfer rate / with radio transmission / maximum | 320 kbit/s |
| product feature / multitag-capable | Yes |
| polarization | Linear |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 53 specifications ↓ Show less ↑44 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Accessories, Logistics.
Identification 10
| Part number | 6GT2810-2HC05 |
|---|---|
| Type designation | Transponder RF645T SIMATIC RF645T ABS 52 x 36 x 12.5 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal printing not possible temperature from -15 °C to +55 °C IP68 20 units/carton 1 carton 20 units MOQ |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106025724 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | EEPROM |
|---|---|
| storage capacity / of the user memory | 256 byte |
| type of memory organization | EPC memory 96 bit (12 byte) assigned with sequential identifier and expandable up to 448 bit (56 byte), user memory 2048 bit (256 byte), TID memory 96 bit (12 byte) |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 20 a |
| property of memory | lock, unlock, write protection, password protection |
| type of transponder chip used | NXP Ucode 7-xm 2k |
Mechanical data 3
| material | ABS |
|---|---|
| color | black |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Ambient conditions 7
| ambient temperature: during read/write access | -40 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| protection class IP | IP68 |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 4
| width | 36 mm |
|---|---|
| height | 12.5 mm |
| depth | 52 mm |
| fastening method | Adhesive, bracket (see Accessories) |
Product features, product functions, product components / general 3
| product feature: silicon-free | Yes |
|---|---|
| product feature: tamper-proof | No |
| product feature: printable | No |
Standards, specifications, approvals 1
| certificate of suitability: IECEx | No |
|---|
Accessories 1
| accessories | Fixing hood, retaining bracket |
|---|
Logistics 7
| Net weight | 0.025 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | IN |
| Shipping weight | 0.525 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2810-2HC05
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Transponder RF645T SIMATIC RF645T ABS 52 x 36 x 12.5 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal printing not possible temperature from -15 °C to +55 °C IP68 20 units/carton 1 carton 20 units MOQ
What is the HS code of Transponder RF645T SIMATIC RF645T ABS 52 x 36 x 12.5 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal printing not possible temperature from -15 °C to +55 °C IP68 20 units/carton 1 carton 20 units MOQ for customs?
The tariff (HS) code on file for Transponder RF645T SIMATIC RF645T ABS 52 x 36 x 12.5 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal printing not possible temperature from -15 °C to +55 °C IP68 20 units/carton 1 carton 20 units MOQ is 85235200.
What is the EAN of Transponder RF645T SIMATIC RF645T ABS 52 x 36 x 12.5 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal printing not possible temperature from -15 °C to +55 °C IP68 20 units/carton 1 carton 20 units MOQ?
The EAN (GTIN) of Transponder RF645T SIMATIC RF645T ABS 52 x 36 x 12.5 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal printing not possible temperature from -15 °C to +55 °C IP68 20 units/carton 1 carton 20 units MOQ is 4034106025724.
Where does Transponder RF645T SIMATIC RF645T ABS 52 x 36 x 12.5 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal printing not possible temperature from -15 °C to +55 °C IP68 20 units/carton 1 carton 20 units MOQ ship from, and how fast?
Transponder RF645T SIMATIC RF645T ABS 52 x 36 x 12.5 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by mounting on metal printing not possible temperature from -15 °C to +55 °C IP68 20 units/carton 1 carton 20 units MOQ ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
