- Part number
- 6GT2810-2EE00
- Model no
- RF625T transponder SIMATIC RF625T (ETSI) PA, 30 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz IMPINJI MONZA 4QT 128 bits (16 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ
Siemens 6GT2810-2EE00 SIMATIC RF625 RF625T Disc ETSI UHF Transponder IP68 RFID Transponder
SIMATIC RF625T ETSI disc UHF RFID transponder, compact, Impinj Monza 4QT, IP68/IPx9K.
Description
About the RF625T transponder SIMATIC RF625T (ETSI) PA, 30 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz IMPINJI MONZA 4QT 128 bits (16 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ
About the RF625T transponder SIMATIC RF625T (ETSI) PA, 30 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz IMPINJI MONZA 4QT 128 bits (16 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ

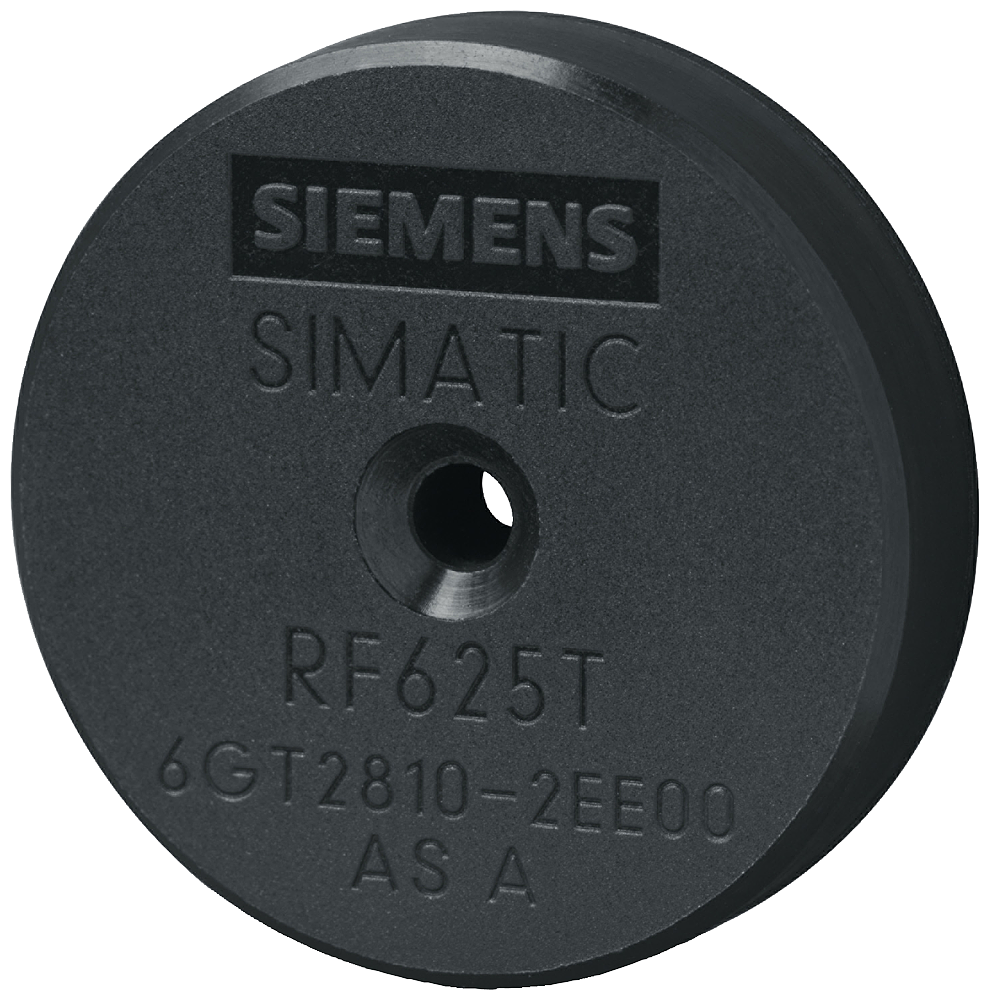

The Siemens 6GT2810-2EE00 is a SIMATIC RF625T ETSI UHF RFID transponder in a compact 30 mm disc, built around an Impinj Monza 4QT chip. It operates at 865 to 868 MHz per EPCglobal Class 1 Gen 2 / ISO 18000-63, with 64 bytes of EEPROM user memory. The IP68/IPx9K-rated PA6.6 housing withstands -40 to +125 degC outside the read/write zone.
Selection Notes
At 30 mm diameter and 8 mm high, the RF625T is smaller than the screw-mount disc transponders in the family, fixing instead with an M3 screw or gluing - a fit for compact fixtures where a larger housing would not clear. The Impinj Monza 4QT chip differs from the NXP chips used elsewhere in the range, though the EPCglobal Class 1 Gen 2 / ISO 18000-63 air interface stays interoperable with the same RF600 readers. Zero minimum mounting distance from metal keeps it usable directly on a steel part.
Specification
Full specification
General 3
| product type designation | RF625T transponder SIMATIC RF625T (ETSI) PA, 30 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz IMPINJI MONZA 4QT 128 bits (16 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ |
|---|---|
| suitability for operation | RF600 |
| product brand name | SIMATIC RF |
Radio frequencies 5
| operating frequency | 865 ... 868 MHz |
|---|---|
| protocol / with radio transmission | EPCglobal Class 1 Gen 2 / ISO 18000-63 |
| transfer rate / with radio transmission / maximum | 320 kbit/s |
| product feature / multitag-capable | Yes |
| polarization | Linear |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 53 specifications ↓ Show less ↑44 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2810-2EE00 |
|---|---|
| Type designation | RF625T transponder SIMATIC RF625T (ETSI) PA, 30 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz IMPINJI MONZA 4QT 128 bits (16 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4042948597057 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | EEPROM |
|---|---|
| storage capacity / of the user memory | 64 byte |
| type of memory organization | EPC memory 96 bit (12 byte) assigned with sequential identifier and expandable up to 128 bit (16 byte), user memory 512 bit (64 byte), TID memory 32 bit (4 byte) |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | lock, unlock, write protection, password protection |
| type of transponder chip used | IMPINJ MONZA 4QT |
Mechanical data 4
| material | PA6.6 |
|---|---|
| color | black |
| tightening torque / of the screw for securing the equipment / maximum | 1 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Ambient conditions 7
| ambient temperature: during read/write access | -25 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +125 °C |
| ambient temperature: during storage | -40 ... +125 °C |
| protection class IP | IP68/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 1000 m/s2 |
| vibrational acceleration | 500 m/s2 |
Design, dimensions and weights 3
| height | 8 mm |
|---|---|
| diameter | 30 mm |
| fastening method | M3 screw, gluing |
Product features, product functions, product components / general 2
| product feature: tamper-proof | No |
|---|---|
| product feature: printable | No |
Standards, specifications, approvals 2
| certificate of suitability: IECEx | No |
|---|---|
| MTBF | 1141 a |
General Product Approval 1
| China RoHS Manufacturer Declara- | tion |
|---|
Logistics 7
| Net weight | 0.006 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | Romania |
| Shipping weight | 0.506 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
