- Part number
- 6GT2810-2EC00
- Model no
- RF630T transponder SIMATIC RF630T (ETSI) PA, 21 x 21 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by screwing in on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ

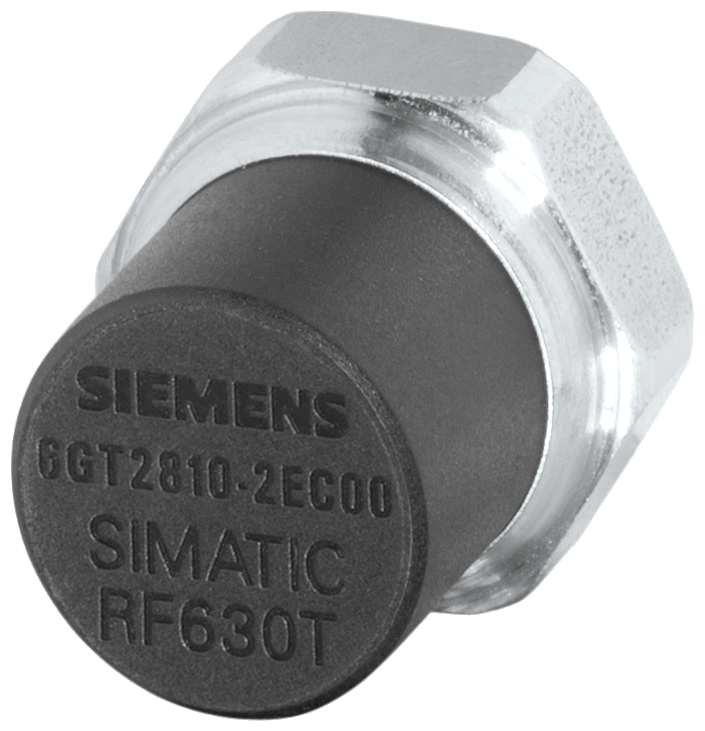

Siemens 6GT2810-2EC00 SIMATIC RF630 RF630T ETSI On-Metal UHF Transponder IP68 RFID Transponder
SIMATIC RF630T ETSI on-metal UHF RFID transponder, screw mount, EPC Gen2, IP68/IPx9K.
Description
About the RF630T transponder SIMATIC RF630T (ETSI) PA, 21 x 21 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by screwing in on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ
About the RF630T transponder SIMATIC RF630T (ETSI) PA, 21 x 21 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by screwing in on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ
The Siemens 6GT2810-2EC00 is a SIMATIC RF630T ETSI UHF RFID transponder built to screw directly onto metal, in a 21 mm diameter PA6.6 GF and stainless steel housing. It operates at 865 to 868 MHz per EPCglobal Class 1 Gen 2 / ISO 18000-63, with 64 bytes of EEPROM user memory on an NXP G2XM chip. The IP68/IPx9K rating withstands -40 to +125 degC outside the read/write zone.
Selection Notes
The stainless-steel screw boss and M6 fastening give this transponder a more permanent, vibration-resistant mount than a glued or cable-tied tag, at the cost of needing a drilled and tapped hole rather than a flat surface. Zero minimum mounting distance from metal means it reads reliably screwed straight onto a steel bracket or machine frame. At 21 mm diameter, it is smaller than the larger on-metal disc transponders in the family, fitting tighter mounting points.
Specification
Full specification
General 3
| product type designation | RF630T transponder SIMATIC RF630T (ETSI) PA, 21 x 21 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by screwing in on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ |
|---|---|
| suitability for operation | RF600 |
| product brand name | SIMATIC RF |
Radio frequencies 5
| operating frequency | 865 ... 868 MHz |
|---|---|
| protocol / with radio transmission | EPCglobal Class 1 Gen 2 / ISO 18000-63 |
| transfer rate / with radio transmission / maximum | 320 kbit/s |
| product feature / multitag-capable | Yes |
| polarization | Linear |
Electrical data 1
| product component / backup battery | No |
|---|
Show all 53 specifications ↓ Show less ↑44 more values in Identification, Memory, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, General Product Approval, Logistics.
Identification 10
| Part number | 6GT2810-2EC00 |
|---|---|
| Type designation | RF630T transponder SIMATIC RF630T (ETSI) PA, 21 x 21 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by screwing in on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209789159 |
| ETIM class | EC002996 |
| eCl@ss | 27280402 |
Memory 8
| type of memory | EEPROM |
|---|---|
| storage capacity / of the user memory | 64 byte |
| type of memory organization | EPC memory 96 bit (12 byte) assigned with sequential identifier and expandable up to 240 bit (30 byte), user memory 512 bit (64 byte), TID memory 64 bit (8 byte) |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | lock, unlock, write protection, password protection |
| type of transponder chip used | NXP G2XM |
Mechanical data 4
| material | PA6.6 GF / stainless steel |
|---|---|
| color | black / silver |
| tightening torque / of the screw for securing the equipment / maximum | 6 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
Ambient conditions 7
| ambient temperature: during read/write access | -25 ... +85 °C |
|---|---|
| ambient temperature: outside the read/write area | -40 ... +125 °C |
| ambient temperature: during storage | -40 ... +125 °C |
| protection class IP | IP68/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 1000 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 3
| height | 20 mm |
|---|---|
| diameter | 21 mm |
| fastening method | screwing (M6) |
Product features, product functions, product components / general 2
| product feature: tamper-proof | No |
|---|---|
| product feature: printable | No |
Standards, specifications, approvals 2
| certificate of suitability: IECEx | No |
|---|---|
| MTBF | 1712 a |
General Product Approval 1
| China RoHS Manufacturer Declara- | tion |
|---|
Logistics 7
| Net weight | 0.022 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | DE |
| Shipping weight | 0.522 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2810-2EC00
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the RF630T transponder SIMATIC RF630T (ETSI) PA, 21 x 21 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by screwing in on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ
What is the HS code of RF630T transponder SIMATIC RF630T (ETSI) PA, 21 x 21 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by screwing in on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ for customs?
The tariff (HS) code on file for RF630T transponder SIMATIC RF630T (ETSI) PA, 21 x 21 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by screwing in on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ is 85235200.
What is the EAN of RF630T transponder SIMATIC RF630T (ETSI) PA, 21 x 21 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by screwing in on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ?
The EAN (GTIN) of RF630T transponder SIMATIC RF630T (ETSI) PA, 21 x 21 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by screwing in on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ is 4011209789159.
Where does RF630T transponder SIMATIC RF630T (ETSI) PA, 21 x 21 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by screwing in on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ ship from, and how fast?
RF630T transponder SIMATIC RF630T (ETSI) PA, 21 x 21 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by screwing in on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
